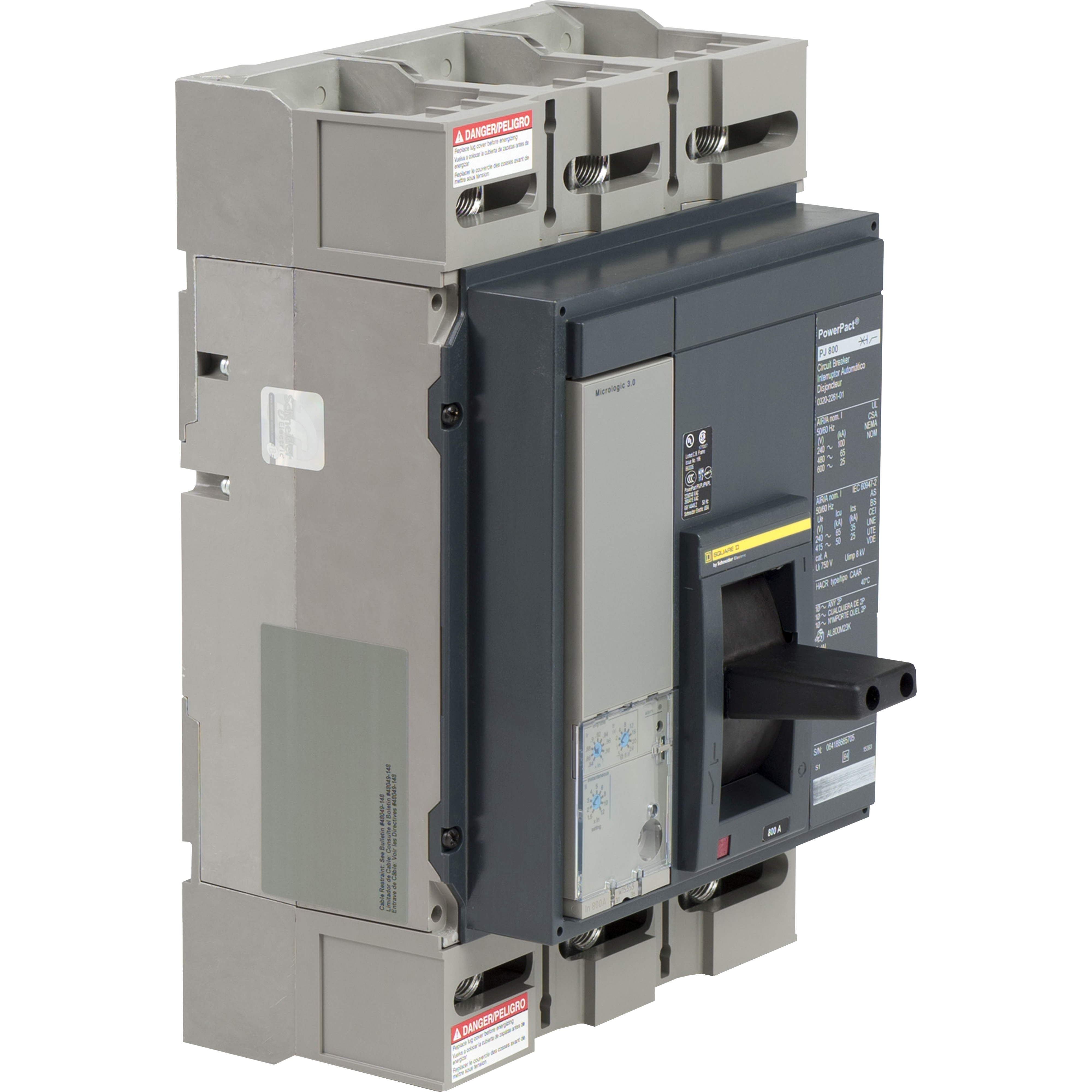

Square D™ PowerPact™ PGL36080CU33A Type PGL Molded Case Circuit Breaker, 600 VAC, 800 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ PGL36080CU33A Type PGL Molded Case Circuit Breaker, 600 VAC, 800 A, 3 Poles
SKU530404
MFGR #PGL36080CU33A
$/ea
Square D PGL36080CU33A MOLDED CASE CIRCUIT BREAKER 600V 800A,100-1200A,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,65kA240Vac - 35kA480Vac - 18kA600Vac,8.10 in.,8.30 in.,800A,Ambient environment,Electronic,Electronic Trip Circuit Breaker,Lugs (ON and OFF ends),Micrologic Standard Trip Unit (5.0) LSI,P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Unit Mount,Various
Square D PGL36080CU33A MOLDED CASE CIRCUIT BREAKER 600V 800A,100-1200A,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,65kA240Vac - 35kA480Vac - 18kA600Vac,8.10 in.,8.30 in.,800A,Ambient environment,Electronic,Electronic Trip Circuit Breaker,Lugs (ON and OFF ends),Micrologic Standard Trip Unit (5.0) LSI,P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Unit Mount,Various
Actuator ELECTRONIC Actuator Type Electronic Alternate Catalog Number PGL36080CU33A Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number PGL36080CU33A Connection LUGS (ON AND OFF ENDS) Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 8.1 in L x 8.3 in W x 16.2 in H Enclosure Type NEMA AB1 Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame P Frequency Rating 50/60 Hz Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 32.7000 in Height [Metric] 32.7000 cm Item Group 01215 Length 20.4000 in Length [Metric] 20.4000 cm Material Various Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431819&lang=en-us Mounting Type Bolt-On/Unit Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard UL Listed;IEC;CSA Sub Brand A Temperature Rating 104 °F Trip Range 100 to 1200 A Type Type PGL UNSPSC 39121601 UPC 11 78590185239 UPC 12 785901852391 Warranty Description Contractual Warranty:18 months Width 21.0000 in Width [Metric] 21.0000 cm Wire Size 3/0 AWG to 500 kcmil Al, 3 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 A Interrupt Rating 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Trip Type Electronic Standard Micrologic™ 5.0 LSI Voltage Rating 600 VAC Distribution UNIT MOUNT Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact™ and P-frame circuit breakers Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | ELECTRONIC |
| Actuator Type | Electronic |
| Alternate Catalog Number | PGL36080CU33A |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PGL36080CU33A |
| Connection | LUGS (ON AND OFF ENDS) |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.1 in L x 8.3 in W x 16.2 in H |
| Enclosure Type | NEMA AB1 |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 32.7000 in |
| Height [Metric] | 32.7000 cm |
| Item Group | 01215 |
| Length | 20.4000 in |
| Length [Metric] | 20.4000 cm |
| Material | Various |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431819&lang=en-us |
| Mounting Type | Bolt-On/Unit |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL Listed;IEC;CSA |
| Sub Brand | A |
| Temperature Rating | 104 °F |
| Trip Range | 100 to 1200 A |
| Type | Type PGL |
| UNSPSC | 39121601 |
| UPC 11 | 78590185239 |
| UPC 12 | 785901852391 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.0000 in |
| Width [Metric] | 21.0000 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al, 3 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 A |
| Interrupt Rating | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| Trip Type | Electronic Standard Micrologic™ 5.0 LSI |
| Voltage Rating | 600 VAC |
| Distribution |
| UNIT MOUNT |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact™ and P-frame circuit breakers |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
