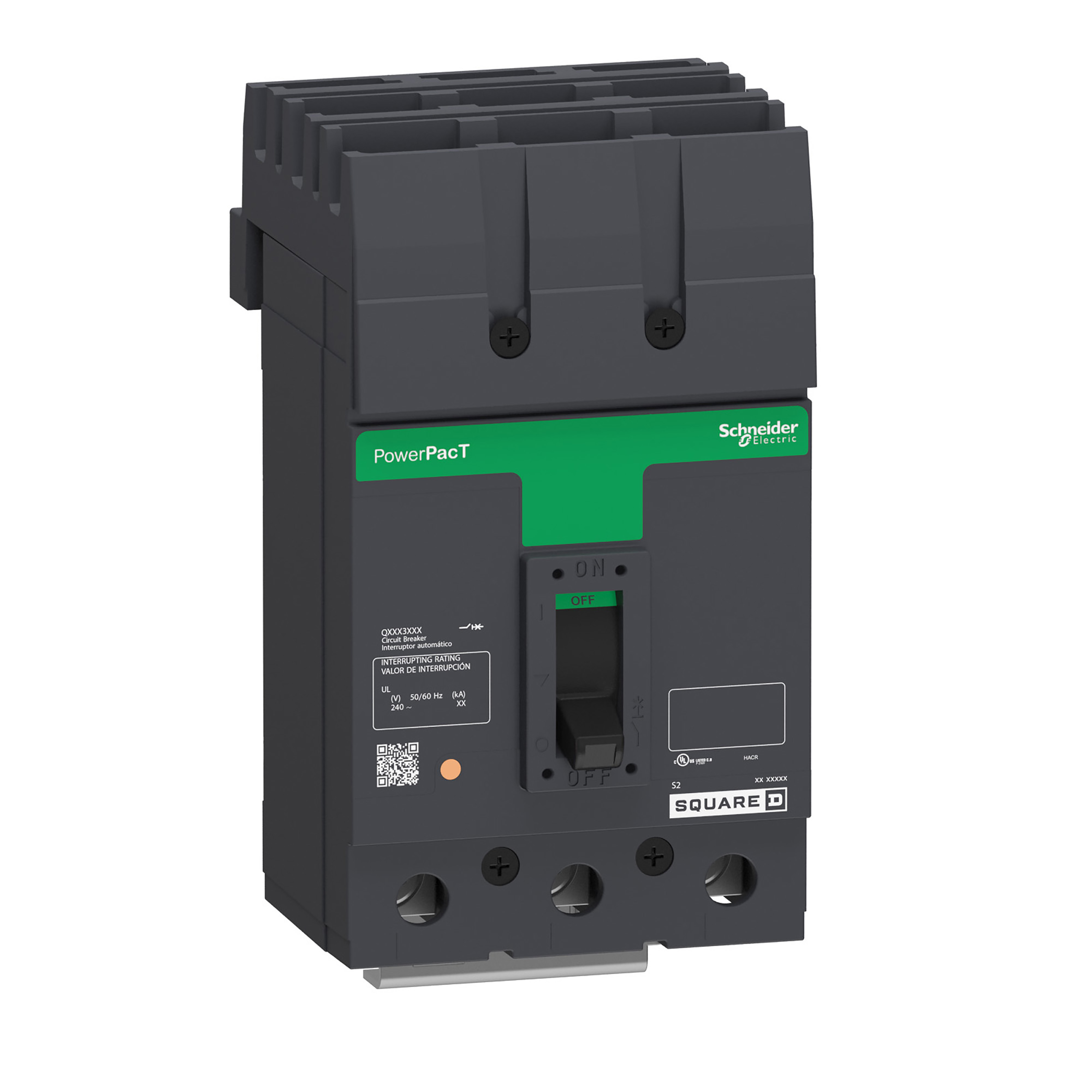

Square D™ PowerPact® Molded Case Circuit Breaker, 240 VAC, 150 A, 65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ PowerPact® Molded Case Circuit Breaker, 240 VAC, 150 A, 65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU255528
MFGR #QGA32150
$/ea
Square D QGA32150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 240V 150A,-13F and 158F (-25 C and +70 C),150A,240 Vac,3,50/60Hz,65kA240Vac,Hold 1200A - Trip 2400A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,Q-Frame,UL Listed - CSA Certified - IEC Rated
Square D QGA32150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 240V 150A,-13F and 158F (-25 C and +70 C),150A,240 Vac,3,50/60Hz,65kA240Vac,Hold 1200A - Trip 2400A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,Q-Frame,UL Listed - CSA Certified - IEC Rated
Alternate Catalog Number QGA32150 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number QGA32150 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type Plug-On/Load Lug Country of Origin MX Currency USD Dimensions 6.47 in H x 4.5 in W x 3.93 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 574.56 Gross Volume per Pack Metric 9415.32 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0302 lb Gross Weight per Pack Metric 3.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.2400 in Height [Metric] 14.7000 cm Item Group 01023 Length 32.0040 in Length [Metric] 31.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435879&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating -13 to 158 deg F, 104 deg F Trip Range 1200 to 2400 A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590170560 UPC 12 785901705604 Warranty Description Contractual Warranty:18 months Width 19.3040 in Width [Metric] 19.8000 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 150 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON I-Line connection (ON end) - lugs (OFF end) ABC 4 AWG - 300 kcmil copper/aluminum 65 kA at 240 VAC 1200 A hold, 2400 A trip Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QGA32150 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QGA32150 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | Plug-On/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.47 in H x 4.5 in W x 3.93 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 574.56 |
| Gross Volume per Pack Metric | 9415.32 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0302 lb |
| Gross Weight per Pack Metric | 3.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.2400 in |
| Height [Metric] | 14.7000 cm |
| Item Group | 01023 |
| Length | 32.0040 in |
| Length [Metric] | 31.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435879&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | -13 to 158 deg F, 104 deg F |
| Trip Range | 1200 to 2400 A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590170560 |
| UPC 12 | 785901705604 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.3040 in |
| Width [Metric] | 19.8000 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 150 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line connection (ON end) - lugs (OFF end) ABC |
| 4 AWG - 300 kcmil copper/aluminum |
| 65 kA at 240 VAC |
| 1200 A hold, 2400 A trip |
