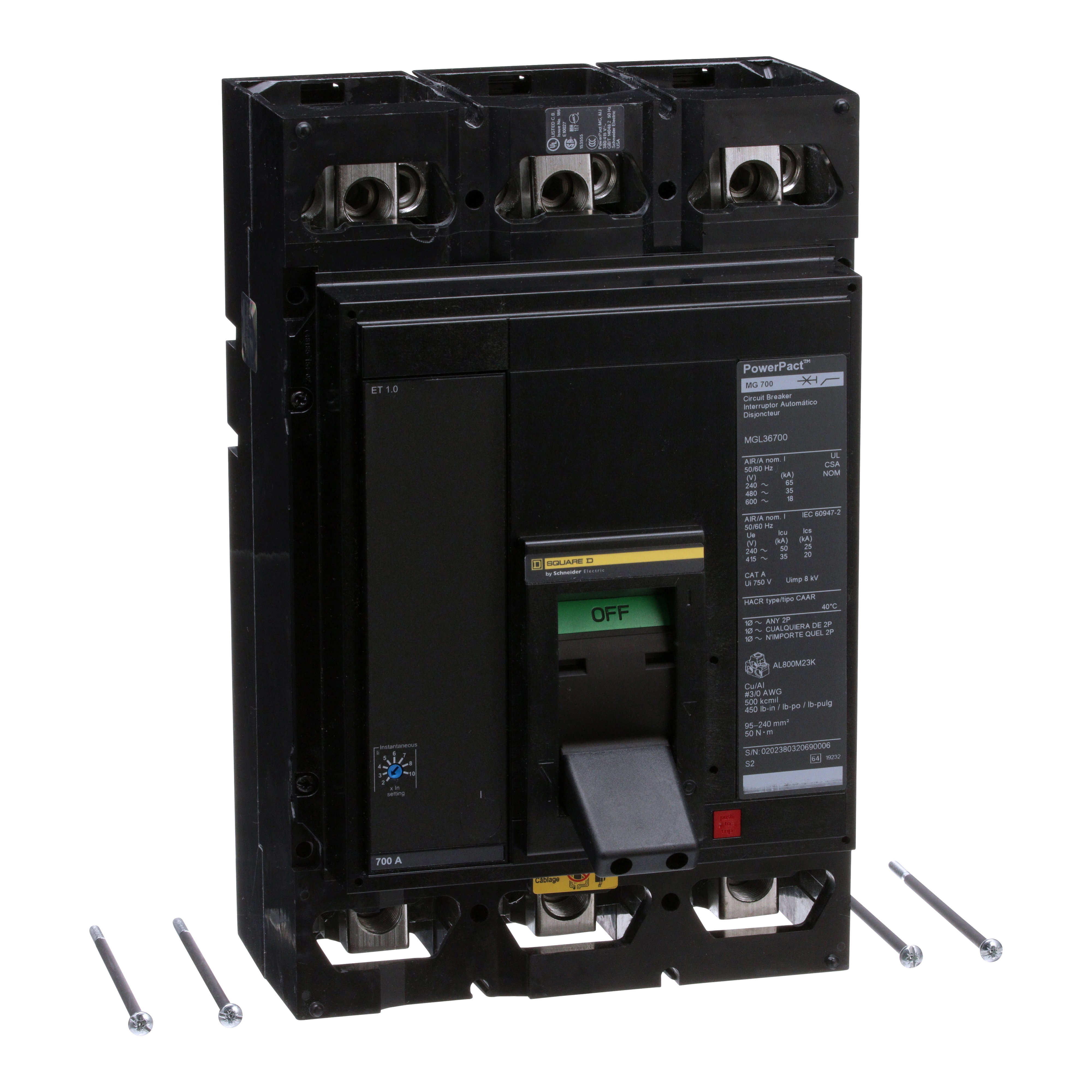

Square D™ PowerPact™ MGL36700 80% Rated Molded Case Circuit Breaker, 600 VAC/250 VDC, 700 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ MGL36700 80% Rated Molded Case Circuit Breaker, 600 VAC/250 VDC, 700 A, 3 Poles
SKU327464
MFGR #MGL36700
Your Cost: $10,833.31/ea
Square D MGL36700 MOLDED CASE CIRCUIT BREAKER 600V 700A,12.80 in.,3,300-800A,40deg Celsius,50/60HZ,600 Vac/250 Vdc,65kA240Vac - 35kA480Vac - 18kA600Vac,700A,8.10 in.,8.30 in.,Ambient environment,Basic (ET1.0),Electronic,Electronic Trip Circuit Breaker,Lugs (ON and OFF ends),M-Frame,PowerPact M,Provides overload and short circuit protection,Three,UL Listed - CSA Certified - IEC Rated,Unit Mount,Various
Square D MGL36700 MOLDED CASE CIRCUIT BREAKER 600V 700A,12.80 in.,3,300-800A,40deg Celsius,50/60HZ,600 Vac/250 Vdc,65kA240Vac - 35kA480Vac - 18kA600Vac,700A,8.10 in.,8.30 in.,Ambient environment,Basic (ET1.0),Electronic,Electronic Trip Circuit Breaker,Lugs (ON and OFF ends),M-Frame,PowerPact M,Provides overload and short circuit protection,Three,UL Listed - CSA Certified - IEC Rated,Unit Mount,Various
Actuator ELECTRONIC Alternate Catalog Number MGL36700 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number MGL36700 Connection LUGS (ON AND OFF ENDS) Connection Type Line/Load Lugs Country of Origin US Currency USD Dimensions 8.1 in L x 8.3 in W x 12.8 in H Enclosure Type NEMA AB1 Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame M Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 2305.80 Gross Volume per Pack Metric 37785.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 28.7000 lb Gross Weight per Pack Metric 13.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 26.6700 in Height [Metric] 26.6700 cm Item Group 01205 Length 46.4820 in Length [Metric] 46.4820 cm Material Various Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430909&lang=en-us Mounting Type Unit Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED Standards UL 489 File No. E10027CE CertifiedCSA C22.2 File No. 5-02 File No. LR7551NMX J-266IEC 60947-2Federal Specification W-C-375BPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Sub Brand PowerPact M Substitute Product Catalog Number AL250JD Temperature Rating 104 °F Trip Range 300 to 800 A Type 80% Rated UNSPSC 39121601 UPC 11 78590160719 UPC 12 785901607199 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 30.4800 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 700 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Trip Type Electronic Basic ET 1.0 LI Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution UNIT MOUNT True RMS sensing devices Provide means to manually disconnect power to the circuit Provide enhanced coordination by their adjustability Provide high interrupting ratings and withstand ratings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | ELECTRONIC |
| Alternate Catalog Number | MGL36700 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MGL36700 |
| Connection | LUGS (ON AND OFF ENDS) |
| Connection Type | Line/Load Lugs |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.1 in L x 8.3 in W x 12.8 in H |
| Enclosure Type | NEMA AB1 |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | M Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2305.80 |
| Gross Volume per Pack Metric | 37785.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 28.7000 lb |
| Gross Weight per Pack Metric | 13.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 26.6700 in |
| Height [Metric] | 26.6700 cm |
| Item Group | 01205 |
| Length | 46.4820 in |
| Length [Metric] | 46.4820 cm |
| Material | Various |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430909&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Standards | UL 489 File No. E10027CE CertifiedCSA C22.2 File No. 5-02 File No. LR7551NMX J-266IEC 60947-2Federal Specification W-C-375BPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Sub Brand | PowerPact M |
| Substitute Product Catalog Number | AL250JD |
| Temperature Rating | 104 °F |
| Trip Range | 300 to 800 A |
| Type | 80% Rated |
| UNSPSC | 39121601 |
| UPC 11 | 78590160719 |
| UPC 12 | 785901607199 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 30.4800 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 700 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Trip Type | Electronic Basic ET 1.0 LI |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| UNIT MOUNT |
| True RMS sensing devices |
| Provide means to manually disconnect power to the circuit |
| Provide enhanced coordination by their adjustability |
| Provide high interrupting ratings and withstand ratings |
