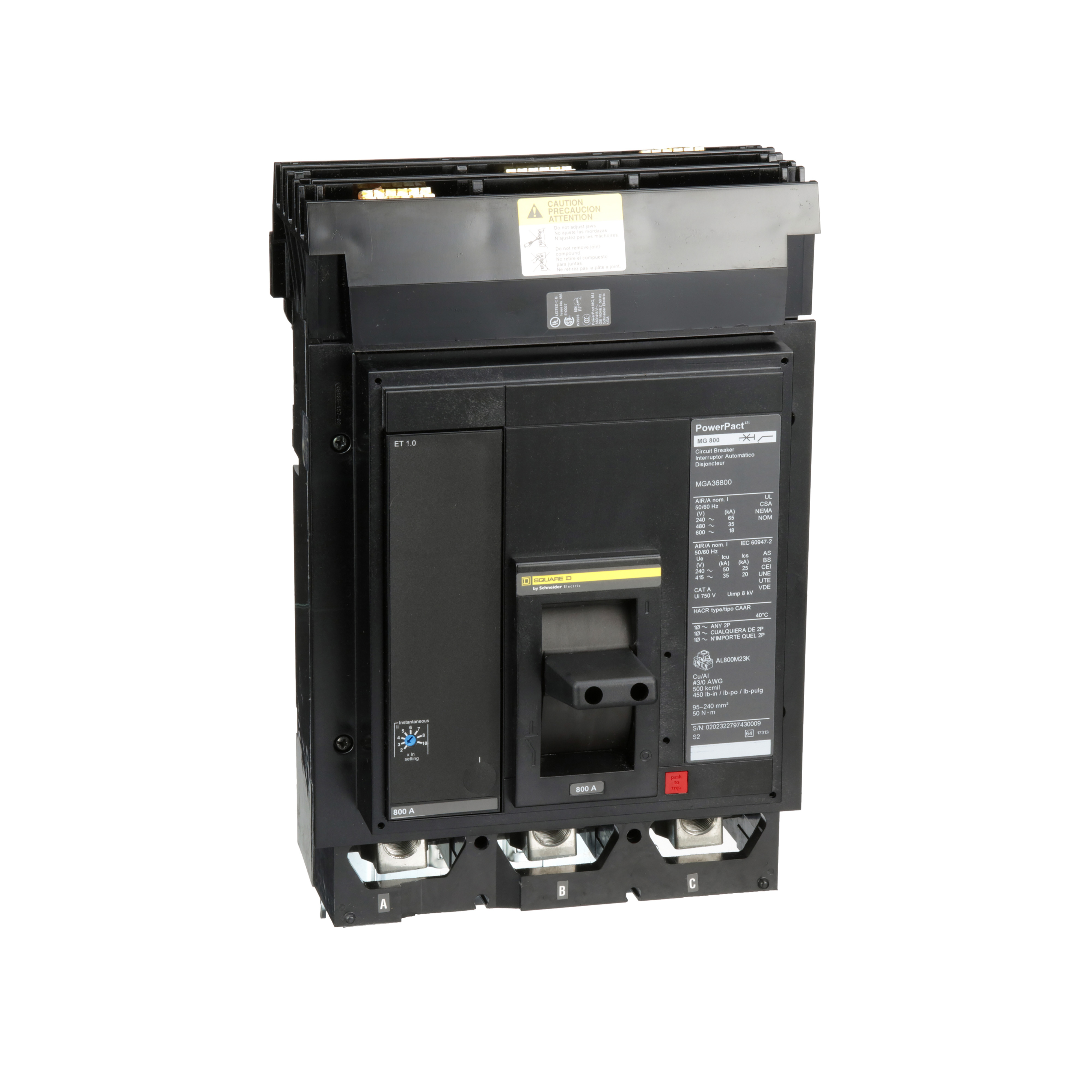

Square D™ PowerPact™ MGA36800 Molded Case Circuit Breaker, 600 VAC, 800 A, 18/35/65 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ MGA36800 Molded Case Circuit Breaker, 600 VAC, 800 A, 18/35/65 kA Interrupt, 3 Poles
SKU369417
MFGR #MGA36800
Your Cost: $6,761.01/ea
List: Square D MGA36800 MOLDED CASE CIRCUIT BREAKER 600V 800A,100-1200A,12.80 in.,3,40deg Celsius,50/60HZ,600 Vac,65kA240Vac - 35kA480Vac - 18kA600Vac,8.10 in.,8.30 in.,800A,Ambient environment,Basic (ET1.0),Electronic,Electronic Trip Circuit Breaker,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,M-Frame,PowerPact M,Provides overload and short circuit protection,Three,UL Listed - CSA Certified - IEC Rated,Various
Square D MGA36800 MOLDED CASE CIRCUIT BREAKER 600V 800A,100-1200A,12.80 in.,3,40deg Celsius,50/60HZ,600 Vac,65kA240Vac - 35kA480Vac - 18kA600Vac,8.10 in.,8.30 in.,800A,Ambient environment,Basic (ET1.0),Electronic,Electronic Trip Circuit Breaker,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,M-Frame,PowerPact M,Provides overload and short circuit protection,Three,UL Listed - CSA Certified - IEC Rated,Various
Actuator ELECTRONIC Alternate Catalog Number MGA36800 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number MGA36800 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Country of Origin US Currency USD Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame M-FRAME Frequency Rating 50/60 Hz Gross Volume Per Pack 2345.76 Gross Volume per Pack Metric 38439.97 Gross Weight Per Pack 29.1500 lb Gross Weight per Pack Metric 13.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 27.4320 in Height [Metric] 27.4320 cm Item Group 01200 Length 45.9740 in Length [Metric] 45.9740 cm Material Various Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430861&lang=en-us Number Of Poles 3 Operating Temperature 40 °C Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED Standards CSA Certified, IEC Rated, RoHS Compliant, UL listed Sub Brand POWERPACT M Trip Range 100-1200A Type ELECTRONIC TRIP CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590149679 UPC 12 785901496793 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 A Interrupt Rating 65KA240VAC - 35KA480VAC - 18KA600VAC Trip Type BASIC (ET1.0) Voltage Rating 600 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON I-Line connection (ON end) - lugs (OFF end) 3/0 AWG - 500 kcmil copper/aluminum 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | ELECTRONIC |
| Alternate Catalog Number | MGA36800 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MGA36800 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Country of Origin | US |
| Currency | USD |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | M-FRAME |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2345.76 |
| Gross Volume per Pack Metric | 38439.97 |
| Gross Weight Per Pack | 29.1500 lb |
| Gross Weight per Pack Metric | 13.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 27.4320 in |
| Height [Metric] | 27.4320 cm |
| Item Group | 01200 |
| Length | 45.9740 in |
| Length [Metric] | 45.9740 cm |
| Material | Various |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430861&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Standards | CSA Certified, IEC Rated, RoHS Compliant, UL listed |
| Sub Brand | POWERPACT M |
| Trip Range | 100-1200A |
| Type | ELECTRONIC TRIP CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590149679 |
| UPC 12 | 785901496793 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 A |
| Interrupt Rating | 65KA240VAC - 35KA480VAC - 18KA600VAC |
| Trip Type | BASIC (ET1.0) |
| Voltage Rating | 600 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line connection (ON end) - lugs (OFF end) |
| 3/0 AWG - 500 kcmil copper/aluminum |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| Standard |
