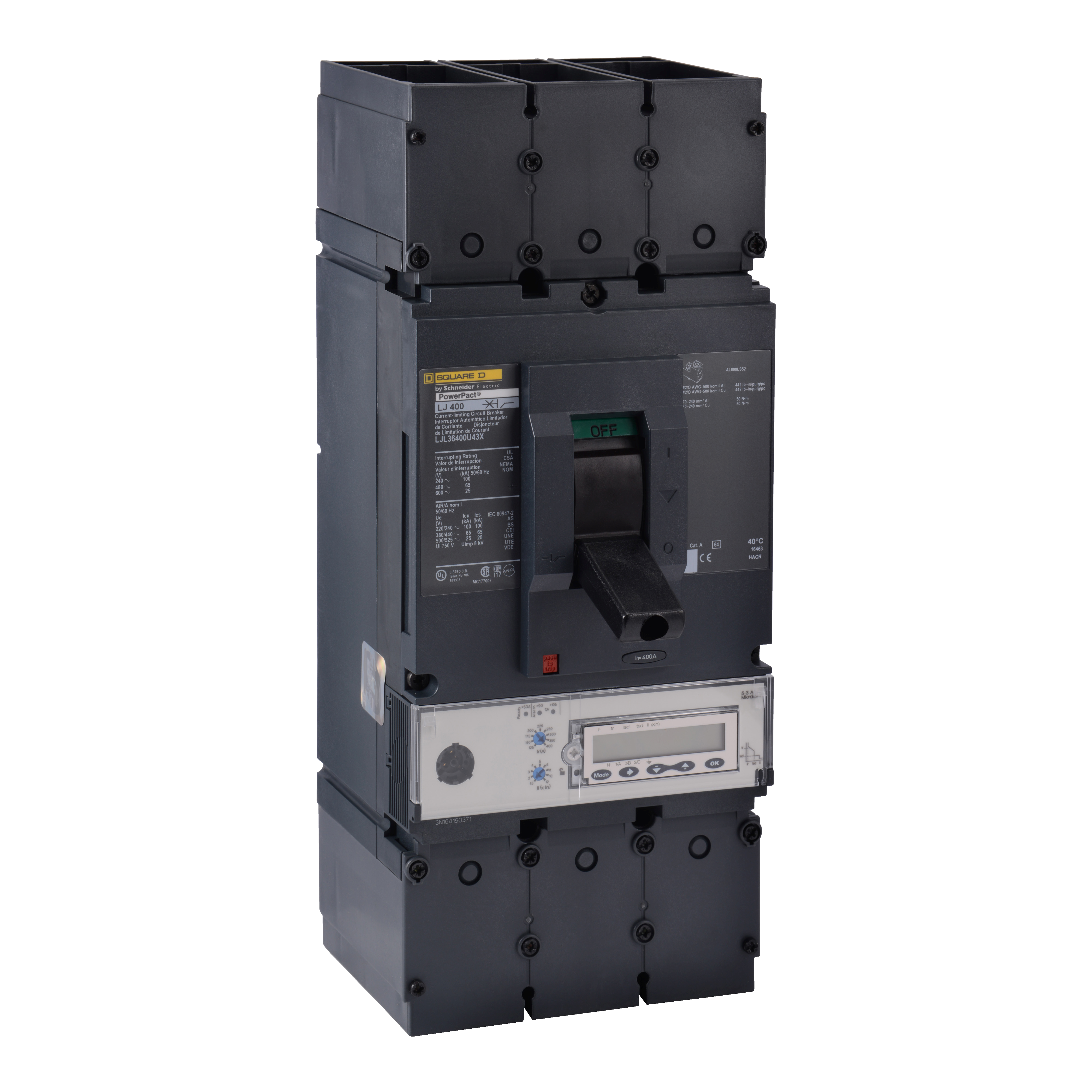

Square D™ PowerPact™ LLL36400U43X Molded Case Circuit Breaker, 600 VAC, 400 A, 3 Poles, Electronic Micrologic LSI Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ LLL36400U43X Molded Case Circuit Breaker, 600 VAC, 400 A, 3 Poles, Electronic Micrologic LSI Trip
SKUPDW~11739413
MFGR #LLL36400U43X
Your Cost: $10,238.30/ea
List: Schneider Electric LLL36400U43X,MOLDED CASE CIRCUIT BREAKER 600V 400A
Schneider Electric LLL36400U43X,MOLDED CASE CIRCUIT BREAKER 600V 400A
Actuator Toggle Alternate Catalog Number LLL36400U43X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number LLL36400U43X Connection 2 x AWG 2/0...500 kcmil aluminium/copper;Lugs line;lugs load Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 13.38 in H x 5.51 in W x 4.33 in D Enclosure Type NEMA 12 EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0680 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.2250 in Height [Metric] 22.2250 cm Item Group 01116 Length 49.5300 in Length [Metric] 49.5300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980770&lang=en-us Mounting Type Unit Number Of Poles 3 Returnable Y Sub Brand L-Frame;PowerPact L Temperature Rating 122 °F Type Circuit Breaker UNSPSC 39121616 UPC 11 78590148684 UPC 12 785901486848 Warranty Description Contractual Warranty:18 months Width 27.3050 in Width [Metric] 27.3050 cm Wire Size (2) 2/0 AWG to 500 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC Trip Type Electronic Micrologic LSI Voltage Rating 600 VAC Distribution Modbus;Ethernet Common accessories and auxiliaries with other PowerPact frames Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes A wide range of field installable accessories allow customers to reduce inventory without sacrificing flexibility Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications IEC style rotary operating handles Equipped with a unique terminal design that makes converting between busbar and lug options easy Easy to install, extremely versatile, a wide variety of terminal options
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | LLL36400U43X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LLL36400U43X |
| Connection | 2 x AWG 2/0...500 kcmil aluminium/copper;Lugs line;lugs load |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 13.38 in H x 5.51 in W x 4.33 in D |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0680 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.2250 in |
| Height [Metric] | 22.2250 cm |
| Item Group | 01116 |
| Length | 49.5300 in |
| Length [Metric] | 49.5300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980770&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Returnable | Y |
| Sub Brand | L-Frame;PowerPact L |
| Temperature Rating | 122 °F |
| Type | Circuit Breaker |
| UNSPSC | 39121616 |
| UPC 11 | 78590148684 |
| UPC 12 | 785901486848 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 27.3050 in |
| Width [Metric] | 27.3050 cm |
| Wire Size | (2) 2/0 AWG to 500 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC |
| Trip Type | Electronic Micrologic LSI |
| Voltage Rating | 600 VAC |
| Distribution |
| Modbus;Ethernet |
| Common accessories and auxiliaries with other PowerPact frames |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allow customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
| IEC style rotary operating handles |
| Equipped with a unique terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options |
