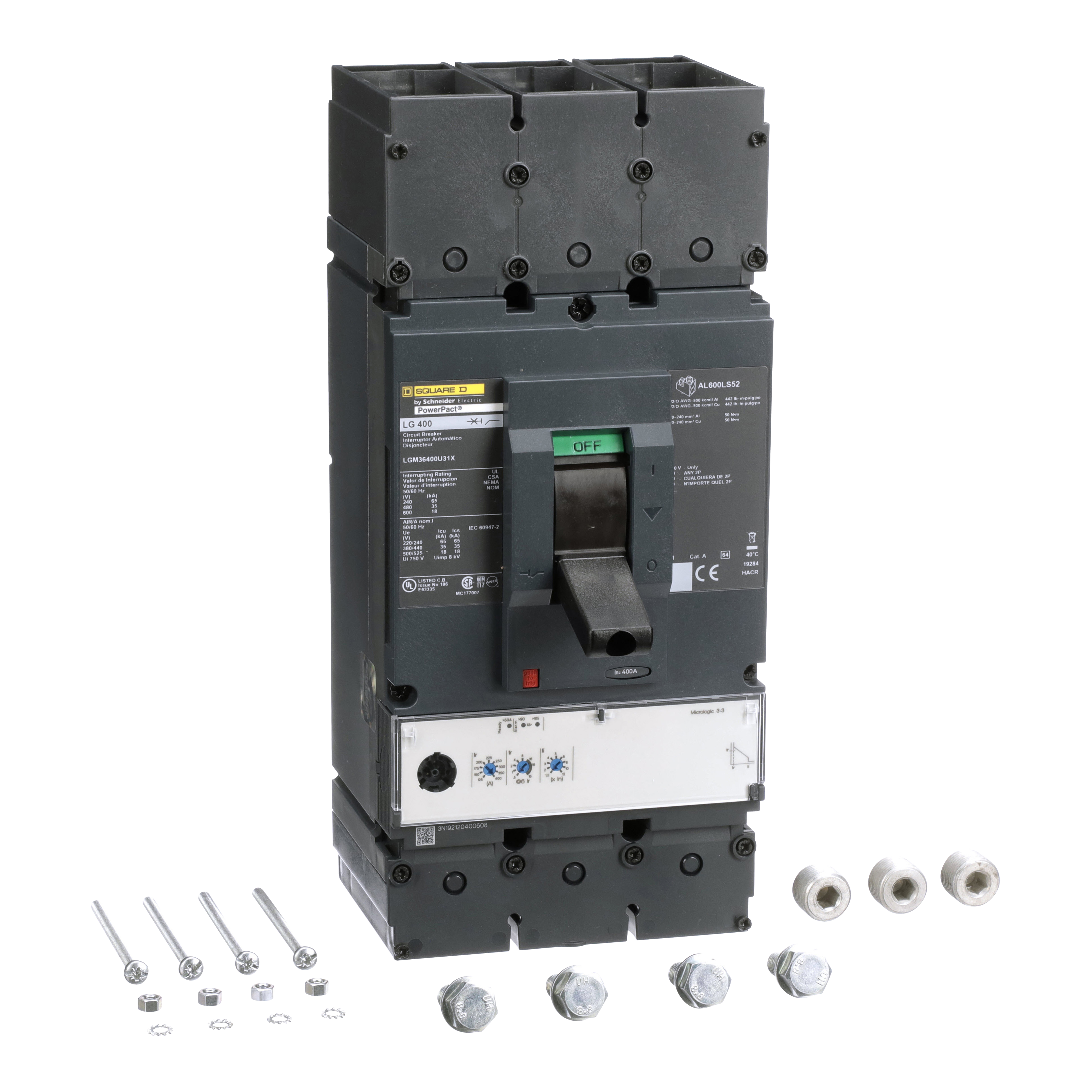

Square D™ PowerPact™ LJM36600U31X Standard Molded Case Circuit Breaker, 600 VAC, 600 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ LJM36600U31X Standard Molded Case Circuit Breaker, 600 VAC, 600 A, 3 Poles
SKUPDW~11739132
MFGR #LJM36600U31X
$/ea
Schneider Electric LJM36600U31X MOLDED CASE CIRCUIT BREAKER 600V 600A
Schneider Electric LJM36600U31X MOLDED CASE CIRCUIT BREAKER 600V 600A
Alternate Catalog Number LJM36600U31X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number LJM36600U31X Connection AWG 2/0...500 KCMIL ALUMINIUM/COPPER)2,LUGS LINE-TERMINAL NUT LOAD Country of Origin US Currency USD EU RoHS Indicator Y Frame J Gross Weight Per Pack 0.0680 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.2250 in Height [Metric] 22.2250 cm Item Group 01116 Length 49.5300 in Length [Metric] 49.5300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402918216&lang=en-us Number Of Poles 3 Returnable Y Standard UL LISTED-IEC-CSA-CCC-CE-NMX Sub Brand L-Frame Trip Range 600 A Type CIRCUIT BREAKER,CURRENT LIMITER UNSPSC 39121601 UPC 11 78590149204 UPC 12 785901492047 Warranty Description Contractual Warranty:18 months Width 27.3050 in Width [Metric] 27.3050 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 600 A Interrupt Rating 600 V AC,65 KA AT 480 V AC-25 KA AT 600 V AC-100 KA AT 240 V AC Trip Type Electronic, standard, MicroLogic 3.3, LI Voltage Rating 600 VAC Distribution UNIT MOUNT Common accessories and auxiliaries with other PowerPact frames Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes A wide range of field installable accessories allow customers to reduce inventory without sacrificing flexibility Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications IEC style rotary operating handles Equipped with a unique terminal design that makes converting between busbar and lug options easy Easy to install, extremely versatile, a wide variety of terminal options
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LJM36600U31X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LJM36600U31X |
| Connection | AWG 2/0...500 KCMIL ALUMINIUM/COPPER)2,LUGS LINE-TERMINAL NUT LOAD |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Frame | J |
| Gross Weight Per Pack | 0.0680 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.2250 in |
| Height [Metric] | 22.2250 cm |
| Item Group | 01116 |
| Length | 49.5300 in |
| Length [Metric] | 49.5300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402918216&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | UL LISTED-IEC-CSA-CCC-CE-NMX |
| Sub Brand | L-Frame |
| Trip Range | 600 A |
| Type | CIRCUIT BREAKER,CURRENT LIMITER |
| UNSPSC | 39121601 |
| UPC 11 | 78590149204 |
| UPC 12 | 785901492047 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 27.3050 in |
| Width [Metric] | 27.3050 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 600 A |
| Interrupt Rating | 600 V AC,65 KA AT 480 V AC-25 KA AT 600 V AC-100 KA AT 240 V AC |
| Trip Type | Electronic, standard, MicroLogic 3.3, LI |
| Voltage Rating | 600 VAC |
| Distribution |
| UNIT MOUNT |
| Common accessories and auxiliaries with other PowerPact frames |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allow customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
| IEC style rotary operating handles |
| Equipped with a unique terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options |
