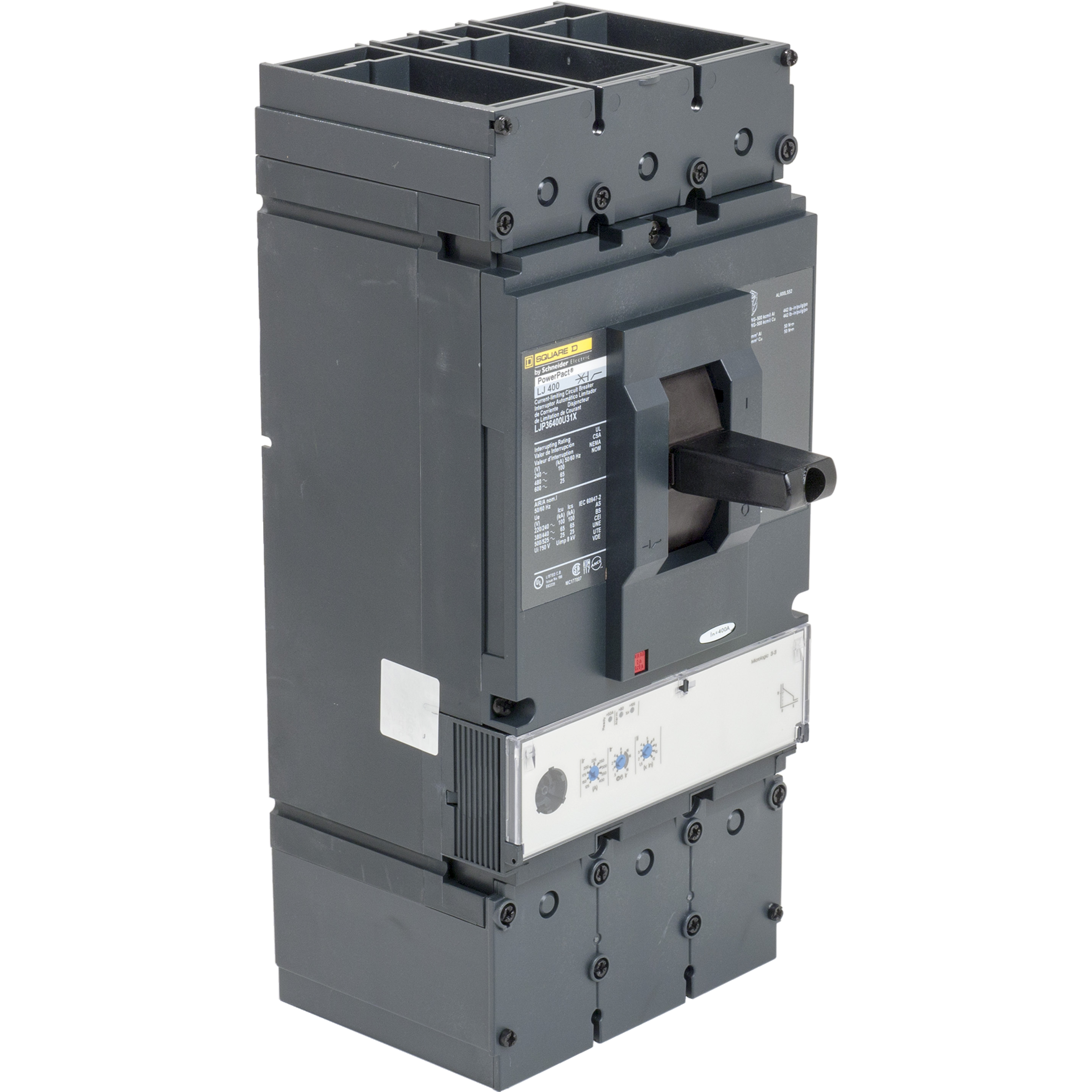

Square D™ PowerPact™ LGP36400CU31X Standard Molded Case Circuit Breaker, 600 VAC, 400 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Micrologic LI Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ LGP36400CU31X Standard Molded Case Circuit Breaker, 600 VAC, 400 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Micrologic LI Trip
SKUPDW~11738213
MFGR #LGP36400CU31X
Your Cost: $3,789.05/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, Standard, 600 VAC, 400 A, 50/60 Hz, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, L Frame Frame, Electronic Micrologic LI Trip, 3 Pole, 3, Load Lug, (2) 2/0 AWG to 500 kcmil Al/Cu Wire, NEMA 12, Unit Mount, 122 deg F, 13.38 in H x 5.51 in W x 6.61 in D
Square D™ PowerPact™ Molded Case Circuit Breaker, Standard, 600 VAC, 400 A, 50/60 Hz, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, L Frame Frame, Electronic Micrologic LI Trip, 3 Pole, 3, Load Lug, (2) 2/0 AWG to 500 kcmil Al/Cu Wire, NEMA 12, Unit Mount, 122 deg F, 13.38 in H x 5.51 in W x 6.61 in D
Alternate Catalog Number LGP36400CU31X Application Construction, Commercial Buildings, Oil, Gas, Industrial Buildings, Water Wastewater, Data Center, Non-Combat, Auxiliary Navalships and Reverse Connection Applications ARRA Compliant N Buy American Compliant N Catalog Number LGP36400CU31X Connection Terminal nut line;lugs load; 2 x AWG 2/0...500 kcmil aluminium/copper Country of Origin US Currency USD EU RoHS Indicator Y Frame G Gross Weight Per Pack 0.0680 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.2250 in Height [Metric] 22.2250 cm Item Group 01116 Length 49.5300 in Length [Metric] 49.5300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667852&lang=en-us Number Of Poles 3 Returnable Y Standard CSA-NMX-CE-UL LISTED-CCC-IEC Sub Brand L-Frame Trip Range 400 A Type Circuit Breaker UNSPSC 39121601 UPC 11 78590172353 UPC 12 785901723530 Warranty Description Contractual Warranty:18 months Width 27.3050 in Width [Metric] 27.3050 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Trip Type Electronic, standard, MicroLogic 3.3, LI Construction, Commercial Buildings, Oil, Gas, Industrial Buildings, Water Wastewater, Data Center, Non-Combat, Auxiliary Navalships and Reverse Connection Applications Modbus;Ethernet Common accessories and auxiliaries with other PowerPact frames Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes A wide range of field installable accessories allow customers to reduce inventory without sacrificing flexibility Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications IEC style rotary operating handles Equipped with a unique terminal design that makes converting between busbar and lug options easy Easy to install, extremely versatile, a wide variety of terminal options
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LGP36400CU31X |
| Application | Construction, Commercial Buildings, Oil, Gas, Industrial Buildings, Water Wastewater, Data Center, Non-Combat, Auxiliary Navalships and Reverse Connection Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LGP36400CU31X |
| Connection | Terminal nut line;lugs load; 2 x AWG 2/0...500 kcmil aluminium/copper |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Frame | G |
| Gross Weight Per Pack | 0.0680 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.2250 in |
| Height [Metric] | 22.2250 cm |
| Item Group | 01116 |
| Length | 49.5300 in |
| Length [Metric] | 49.5300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667852&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | CSA-NMX-CE-UL LISTED-CCC-IEC |
| Sub Brand | L-Frame |
| Trip Range | 400 A |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590172353 |
| UPC 12 | 785901723530 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 27.3050 in |
| Width [Metric] | 27.3050 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Trip Type | Electronic, standard, MicroLogic 3.3, LI |
| Construction, Commercial Buildings, Oil, Gas, Industrial Buildings, Water Wastewater, Data Center, Non-Combat, Auxiliary Navalships and Reverse Connection Applications |
| Modbus;Ethernet |
| Common accessories and auxiliaries with other PowerPact frames |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allow customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
| IEC style rotary operating handles |
| Equipped with a unique terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options |
