Square D™

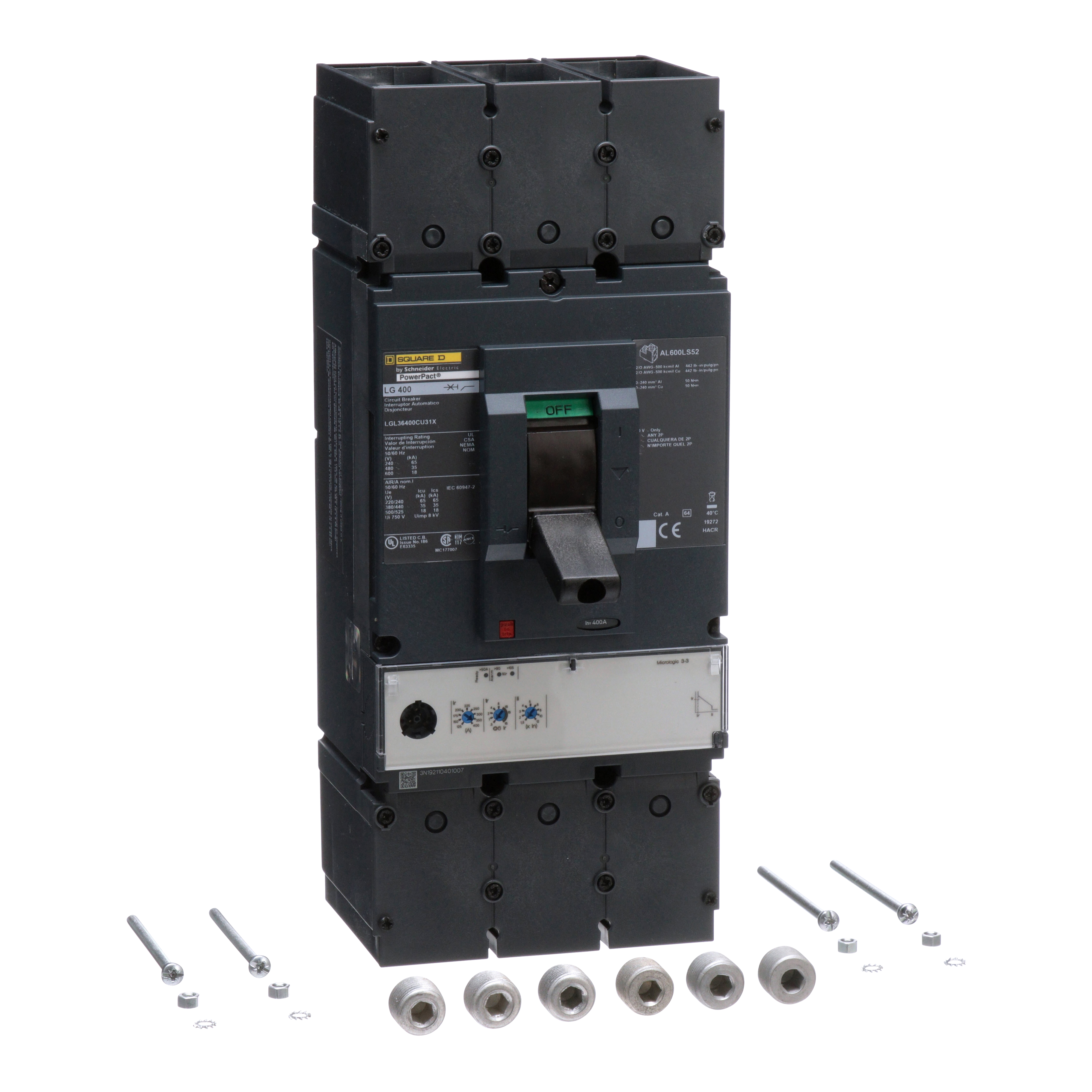

Square D™ PowerPact™ LGL36400CU31X 100% Rated Molded Case Circuit Breaker, 600 VAC, 400 A, 18 kA at 600 VAC Interrupt
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ LGL36400CU31X 100% Rated Molded Case Circuit Breaker, 600 VAC, 400 A, 18 kA at 600 VAC Interrupt
SKU832417
MFGR #LGL36400CU31X
Your Cost: $5,155.17/ea
List: Square D LGL36400CU31X MOLDED CASE CIRCUIT BREAKER 600V 400A,-13deg.F and 158deg.F (-25 deg.C and +70 deg.C),18 kA 600 VAC,3-Poles,400 A,50/60 Hz,600 Vac,95 At 55 deg C Relative Humidity,Electronic Standard Micrologic 3.3 LI,L- Frame,Line/Load Lugs,Molded Case Circuit Breaker,PowerPact,UL Listed, CSA Certified
Square D LGL36400CU31X MOLDED CASE CIRCUIT BREAKER 600V 400A,-13deg.F and 158deg.F (-25 deg.C and +70 deg.C),18 kA 600 VAC,3-Poles,400 A,50/60 Hz,600 Vac,95 At 55 deg C Relative Humidity,Electronic Standard Micrologic 3.3 LI,L- Frame,Line/Load Lugs,Molded Case Circuit Breaker,PowerPact,UL Listed, CSA Certified
Alternate Catalog Number LGL36400CU31X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number LGL36400CU31X Connection LINE/LOAD LUGS Country of Origin US Currency USD Environmental Conditions 95 AT 55 DEG C RELATIVE HUMIDITY EU RoHS Indicator Y Frame L- FRAME Frequency Rating 50/60 Hz Gross Volume Per Pack 3905.44 Gross Volume per Pack Metric 63998.44 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 17.0600 lb Gross Weight per Pack Metric 7.74 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.3520 in Height [Metric] 22.3520 cm Item Group 01116 Length 80.5180 in Length [Metric] 80.5180 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667780&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Returnable Y Standard UL LISTED, CSA CERTIFIED Standards UL 489 File No. E10027, CE, CSA C22.2 File No. 5-02, LR 7551, NMX J-266, IEC 60947-2, Federal Specification W-C-375B Sub Brand POWERPACT Substitute Product Catalog Number AL600LS52K3 Trip Range 400 A Hz Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590163182 UPC 12 785901631828 Warranty Description Contractual Warranty:18 months Width 35.5600 in Width [Metric] 35.5600 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 18 KA 600 VAC Trip Type Electronic Standard Micrologic 3.3 LI Voltage Rating 600 VAC Distribution UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LGL36400CU31X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LGL36400CU31X |
| Connection | LINE/LOAD LUGS |
| Country of Origin | US |
| Currency | USD |
| Environmental Conditions | 95 AT 55 DEG C RELATIVE HUMIDITY |
| EU RoHS Indicator | Y |
| Frame | L- FRAME |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3905.44 |
| Gross Volume per Pack Metric | 63998.44 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 17.0600 lb |
| Gross Weight per Pack Metric | 7.74 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.3520 in |
| Height [Metric] | 22.3520 cm |
| Item Group | 01116 |
| Length | 80.5180 in |
| Length [Metric] | 80.5180 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667780&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Returnable | Y |
| Standard | UL LISTED, CSA CERTIFIED |
| Standards | UL 489 File No. E10027, CE, CSA C22.2 File No. 5-02, LR 7551, NMX J-266, IEC 60947-2, Federal Specification W-C-375B |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | AL600LS52K3 |
| Trip Range | 400 A Hz |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590163182 |
| UPC 12 | 785901631828 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 35.5600 in |
| Width [Metric] | 35.5600 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 18 KA 600 VAC |
| Trip Type | Electronic Standard Micrologic 3.3 LI |
| Voltage Rating | 600 VAC |
| Distribution |
| UNIT MOUNT |
