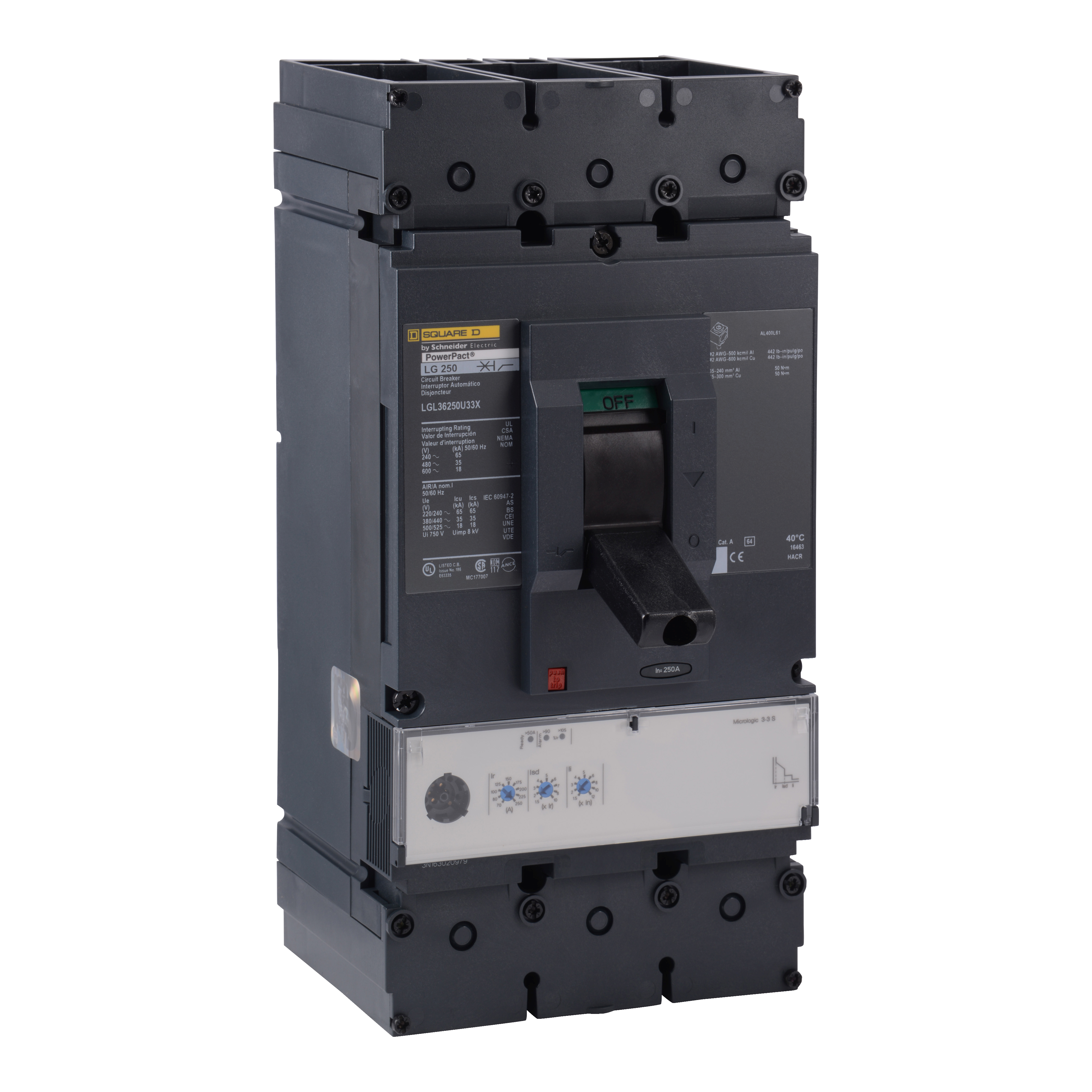

Square D™ PowerPact™ LGL36250U33X Standard Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ LGL36250U33X Standard Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles
SKU1371039
MFGR #LGL36250U33X
Your Cost: $4,920.17/ea
List: Schneider Electric LGL36250U33X MOLDED CASE CIRCUIT BREAKER 600V 250A,250 A,250 A,35 kA 480 V AC-65 kA 240 V AC-18 kA 600 V AC,600 V AC,600 V AC,G,circuit breaker,electronic standard Micrologic 3.3 S LSI,unit mount
Schneider Electric LGL36250U33X MOLDED CASE CIRCUIT BREAKER 600V 250A,250 A,250 A,35 kA 480 V AC-65 kA 240 V AC-18 kA 600 V AC,600 V AC,600 V AC,G,circuit breaker,electronic standard Micrologic 3.3 S LSI,unit mount
Actuator Type Toggle Alternate Catalog Number LGL36250U33X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number LGL36250U33X Connection AWG 2...500 KCMIL ALUMINIUM)1 -AWG 2...600 KCMIL COPPER)1,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 13.38 in H x 5.51 in W x 4.33 in D EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 0.06 Gross Volume per Pack Metric 1.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 14.9900 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.2250 in Height [Metric] 22.2250 cm Item Group 01116 Length 49.5300 in Length [Metric] 49.5300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980602&lang=en-us Mounting Type Unit Number Of Poles 3 Returnable Y Standard CSA-CE-UL LISTED-CCC-NMX Sub Brand L-Frame Temperature Rating 122 °F Trip Range 250 A Type Standard UNSPSC 39121601 UPC 11 78590149470 UPC 12 785901494706 Warranty Description Contractual Warranty:18 months Width 27.3050 in Width [Metric] 27.3050 cm Wire Size 2 AWG to 500 kcmil Al/2 AWG to 600 kcmil Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Trip Type Electronic Micrologic LSI Voltage Rating 600 VAC Distribution UNIT MOUNT Rated current from 70 to 250 A Breaking capacity from 18 to 65 kA at 480 VAC Common accessories and auxiliaries with other PowerPact™ frames 2 AWG to 500 kcmil Al, 2 AWG to 600 kcmil Cu wire 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating Equipped with a unique terminal design that makes converting between busbar and lug options easy Easy to install, extremely versatile, a wide variety of terminal options
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | LGL36250U33X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LGL36250U33X |
| Connection | AWG 2...500 KCMIL ALUMINIUM)1 -AWG 2...600 KCMIL COPPER)1,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 13.38 in H x 5.51 in W x 4.33 in D |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 0.06 |
| Gross Volume per Pack Metric | 1.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 14.9900 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.2250 in |
| Height [Metric] | 22.2250 cm |
| Item Group | 01116 |
| Length | 49.5300 in |
| Length [Metric] | 49.5300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980602&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | CSA-CE-UL LISTED-CCC-NMX |
| Sub Brand | L-Frame |
| Temperature Rating | 122 °F |
| Trip Range | 250 A |
| Type | Standard |
| UNSPSC | 39121601 |
| UPC 11 | 78590149470 |
| UPC 12 | 785901494706 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 27.3050 in |
| Width [Metric] | 27.3050 cm |
| Wire Size | 2 AWG to 500 kcmil Al/2 AWG to 600 kcmil Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Trip Type | Electronic Micrologic LSI |
| Voltage Rating | 600 VAC |
| Distribution |
| UNIT MOUNT |
| Rated current from 70 to 250 A |
| Breaking capacity from 18 to 65 kA at 480 VAC |
| Common accessories and auxiliaries with other PowerPact™ frames |
| 2 AWG to 500 kcmil Al, 2 AWG to 600 kcmil Cu wire |
| 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
| Equipped with a unique terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options |
