Square D™

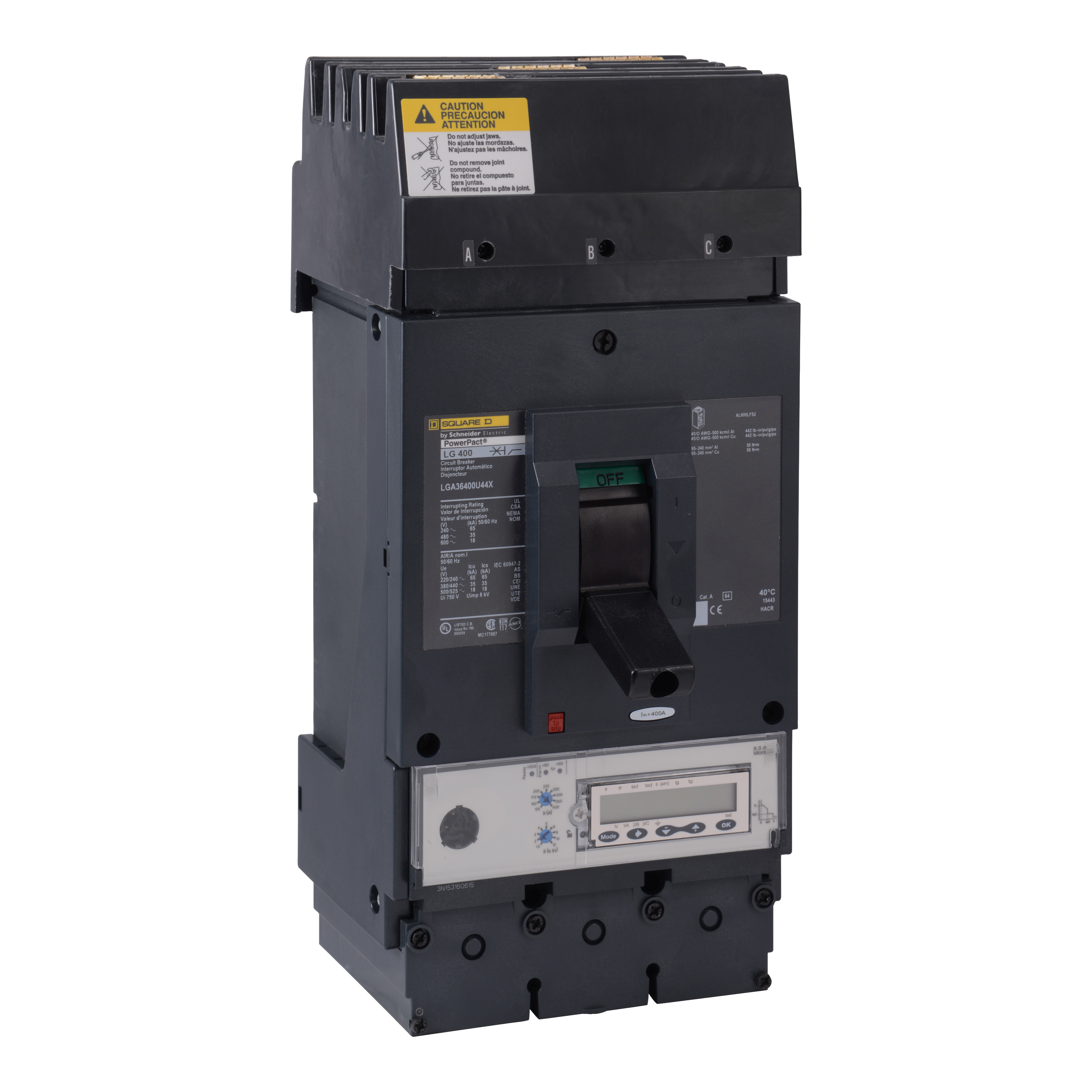

Square D™ PowerPact™ L LGA36400CU44X Molded Case Circuit Breaker, 600 VAC, 400 A, 18 kA Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.3 A LSIG Trip
Square D™
Square D™ PowerPact™ L LGA36400CU44X Molded Case Circuit Breaker, 600 VAC, 400 A, 18 kA Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.3 A LSIG Trip
SKUPDW~11083506
MFGR #LGA36400CU44X
Your Cost: $4,224.94/ea
List: Square D™ PowerPact™ L Molded Case Circuit Breaker, 600 VAC, 400 A, 50/60 Hz Frequency, 18 kA Interrupt, L Frame, Electronic Ammeter Micrologic 6.3 A LSIG Trip, 3 Poles, I-Line™ Line/Lug Load Connection, (2) 2/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, 122 deg F, 6.61 in L x 5.94 in W x 14.7 in H Dimensions
Square D™ PowerPact™ L Molded Case Circuit Breaker, 600 VAC, 400 A, 50/60 Hz Frequency, 18 kA Interrupt, L Frame, Electronic Ammeter Micrologic 6.3 A LSIG Trip, 3 Poles, I-Line™ Line/Lug Load Connection, (2) 2/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, 122 deg F, 6.61 in L x 5.94 in W x 14.7 in H Dimensions
Alternate Catalog Number LGA36400CU44X Application Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications ARRA Compliant N Buy American Compliant N Catalog Number LGA36400CU44X Connection AWG 2/0...500 KCMIL ALUMINIUM/COPPER)2,I-LINE CONNECTION LINE-LUGS LOAD Country of Origin US Currency USD EU RoHS Indicator Y Frame G Gross Weight Per Pack 17.0000 lb Gross Weight per Pack Metric 7.71 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 8.6614 in Height [Metric] 22.2250 cm Item Group 01118 Length 19.6850 in Length [Metric] 49.5300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423259790&lang=en-us Number Of Poles 3 Returnable Y Standard CSA-CE-UL LISTED-NMX-CCC Trip Range 400 A Type CIRCUIT BREAKER,CURRENT LIMITER UNSPSC 39121601 UPC 11 78590172700 UPC 12 785901727002 Warranty Description Contractual Warranty:18 months Width 10.6299 in Width [Metric] 27.3050 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Trip Type Electronic, ammeter, Micrologic 6.3 A, LSIG Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications I-LINE Common accessories across the range of PowerPact™ Molded Case Circuit Breakers allow users to make late specification changes A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications IEC style rotary operating handles NEMA 9421 door mounted rotary operating mechanism NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Worldwide availability with unique global part numbers Direct access to energy metering and energy efficiency thanks to the Micrologic control units Direct access to energy metering and energy efficiency thanks to the Micrologic control units
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LGA36400CU44X |
| Application | Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LGA36400CU44X |
| Connection | AWG 2/0...500 KCMIL ALUMINIUM/COPPER)2,I-LINE CONNECTION LINE-LUGS LOAD |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Frame | G |
| Gross Weight Per Pack | 17.0000 lb |
| Gross Weight per Pack Metric | 7.71 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 8.6614 in |
| Height [Metric] | 22.2250 cm |
| Item Group | 01118 |
| Length | 19.6850 in |
| Length [Metric] | 49.5300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423259790&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | CSA-CE-UL LISTED-NMX-CCC |
| Trip Range | 400 A |
| Type | CIRCUIT BREAKER,CURRENT LIMITER |
| UNSPSC | 39121601 |
| UPC 11 | 78590172700 |
| UPC 12 | 785901727002 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 10.6299 in |
| Width [Metric] | 27.3050 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Trip Type | Electronic, ammeter, Micrologic 6.3 A, LSIG |
| Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications |
| I-LINE |
| Common accessories across the range of PowerPact™ Molded Case Circuit Breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
| IEC style rotary operating handles |
| NEMA 9421 door mounted rotary operating mechanism |
| NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated |
| Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Worldwide availability with unique global part numbers |
| Direct access to energy metering and energy efficiency thanks to the Micrologic control units |
| Direct access to energy metering and energy efficiency thanks to the Micrologic control units |
