Square D™

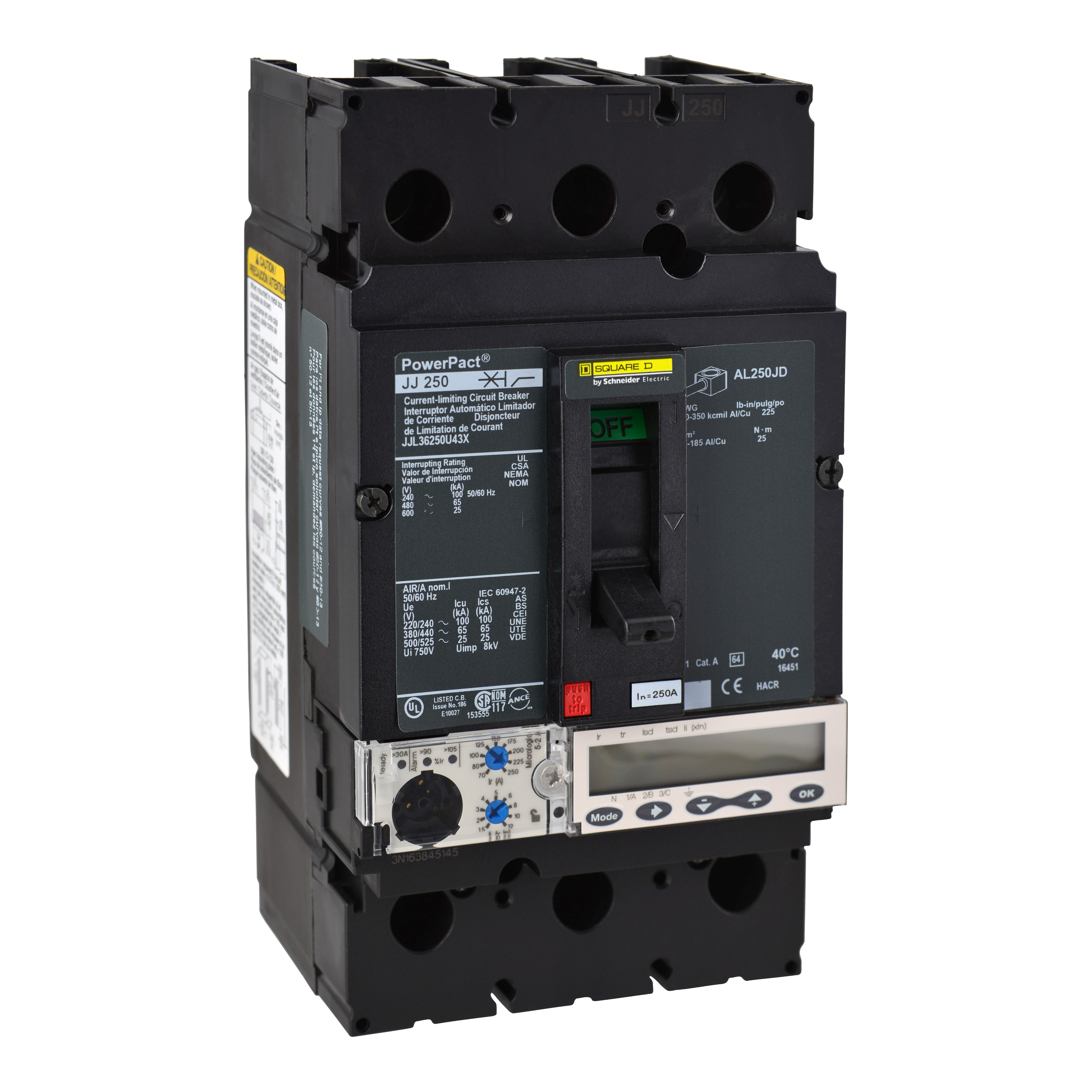

Square D™ PowerPact™ JJL36250U43X Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles, Electronic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ JJL36250U43X Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles, Electronic Trip
SKU1278780
MFGR #JJL36250U43X
Your Cost: $5,876.63/ea
List: Schneider Electric JJL36250U43X,MOLDED CASE CIRCUIT BREAKER 600V 250A
Schneider Electric JJL36250U43X,MOLDED CASE CIRCUIT BREAKER 600V 250A
Alternate Catalog Number JJL36250U43X ARRA Compliant N Buy American Compliant N Catalog Number JJL36250U43X Connection Lugs line;lugs load; AWG 3/0...350 kcmil aluminium/copper terminals Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame J Frame Frequency Rating 50/60 Hz Gross Weight Per Pack 5.1800 lb Gross Weight per Pack Metric 2.35 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Hazard Class N Height 13.0180 in Height [Metric] 13.0180 cm Item Group 01107 Length 21.4330 in Length [Metric] 21.4330 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980476&lang=en-us Mounting Type Surface Number Of Poles 3 Phase 3 pH Returnable Y Standards ARRA, Buy American Act Compliant, CSA C22.2 No. 5 File No. LR40970, CCC, CE, Federal Specification W-C-375B/GEN, IEC 60947-2, UL 489 File No. E10027 Temperature Rating 104 °F Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590151873 UPC 12 785901518730 Warranty Description Contractual Warranty:18 months Width 18.4150 in Width [Metric] 18.4150 cm Wire Size 3/0 AWG to 350 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Trip Type Electronic Voltage Rating 600 VAC Modbus Easy to install, extremely versatile, a wide variety of terminal Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | JJL36250U43X |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JJL36250U43X |
| Connection | Lugs line;lugs load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | J Frame |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 5.1800 lb |
| Gross Weight per Pack Metric | 2.35 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Hazard Class | N |
| Height | 13.0180 in |
| Height [Metric] | 13.0180 cm |
| Item Group | 01107 |
| Length | 21.4330 in |
| Length [Metric] | 21.4330 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980476&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standards | ARRA, Buy American Act Compliant, CSA C22.2 No. 5 File No. LR40970, CCC, CE, Federal Specification W-C-375B/GEN, IEC 60947-2, UL 489 File No. E10027 |
| Temperature Rating | 104 °F |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590151873 |
| UPC 12 | 785901518730 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.4150 in |
| Width [Metric] | 18.4150 cm |
| Wire Size | 3/0 AWG to 350 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC |
| Trip Type | Electronic |
| Voltage Rating | 600 VAC |
| Modbus |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
