Square D™

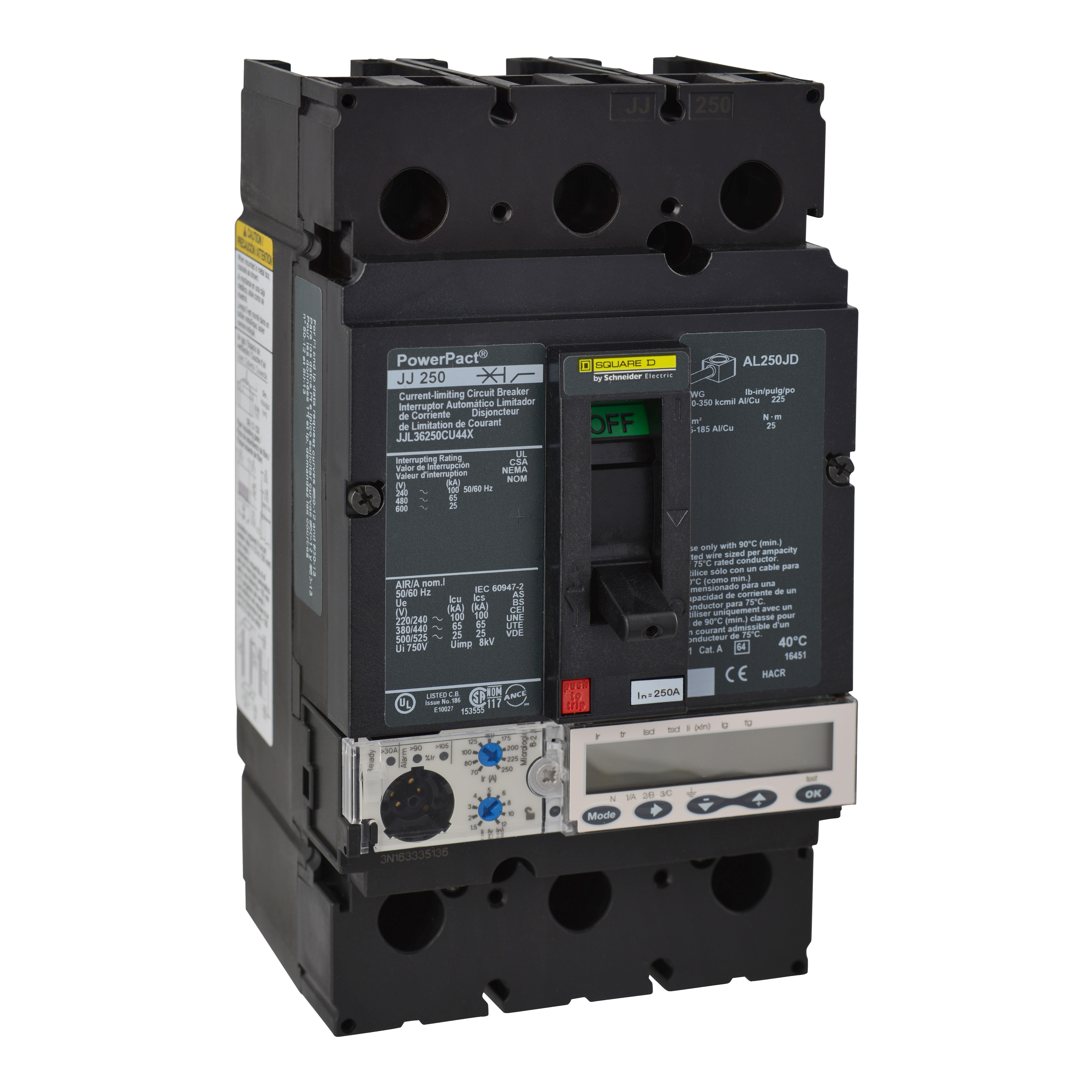

Square D™ PowerPact™ JJL36250CU44X Type JJL Molded Case Circuit Breaker, 600 VAC, 250 A, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Interrupt, 3 Poles, Electronic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ JJL36250CU44X Type JJL Molded Case Circuit Breaker, 600 VAC, 250 A, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Interrupt, 3 Poles, Electronic Trip
SKU1115106
MFGR #JJL36250CU44X
Your Cost: $7,584.90/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, Type JJL, 600 VAC, 250 A, 50/60 Hz, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Interrupt, J Frame Frame, Electronic Trip, 3 Pole, 3, Toggle Actuator, Line/Load Lug, 3/0 AWG to 350 kcmil Wire, Surface Mount, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D
Square D™ PowerPact™ Molded Case Circuit Breaker, Type JJL, 600 VAC, 250 A, 50/60 Hz, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Interrupt, J Frame Frame, Electronic Trip, 3 Pole, 3, Toggle Actuator, Line/Load Lug, 3/0 AWG to 350 kcmil Wire, Surface Mount, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D
Alternate Catalog Number JJL36250CU44X Application Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets ARRA Compliant N Buy American Compliant N Catalog Number JJL36250CU44X Connection AWG 3/0...350 KCMIL ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE Country of Origin US Currency USD EU RoHS Indicator Y Frame J Gross Weight Per Pack 5.0000 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.0180 in Height [Metric] 13.0180 cm Item Group 01107 Length 21.4330 in Length [Metric] 21.4330 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423261324&lang=en-us Number Of Poles 3 Operating Temperature 50 A°C Returnable N Standard CSA-CCC-CE-UL LISTED-IEC Trip Range 250 A Type Circuit Breaker UNSPSC 39121601 UPC 11 78590114962 UPC 12 785901149620 Warranty Description Contractual Warranty:18 months Width 18.4150 in Width [Metric] 18.4150 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 100 KA 240 V AC-65 KA 480 V AC-25 KA 600 V AC,600 V AC Trip Type ELECTRONIC, AMMETER, MICROLOGIC 6.2 A, LSIG Voltage Rating 600 VAC Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets UNIT MOUNT Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Alternate Catalog Number | JJL36250CU44X |
Application | Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets |
ARRA Compliant | N |
Buy American Compliant | N |
Catalog Number | JJL36250CU44X |
Connection | AWG 3/0...350 KCMIL ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE |
Country of Origin | US |
Currency | USD |
EU RoHS Indicator | Y |
Frame | J |
Gross Weight Per Pack | 5.0000 lb |
Gross Weight per Pack Metric | 2.27 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8536200020 |
Height | 13.0180 in |
Height [Metric] | 13.0180 cm |
Item Group | 01107 |
Length | 21.4330 in |
Length [Metric] | 21.4330 cm |
Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423261324&lang=en-us |
Number Of Poles | 3 |
Operating Temperature | 50 A°C |
Returnable | N |
Standard | CSA-CCC-CE-UL LISTED-IEC |
Trip Range | 250 A |
Type | Circuit Breaker |
UNSPSC | 39121601 |
UPC 11 | 78590114962 |
UPC 12 | 785901149620 |
Warranty Description | Contractual Warranty:18 months |
Width | 18.4150 in |
Width [Metric] | 18.4150 cm |
Stock Status | NONSTOCK |
Brand | Square D™ |
Manufacturer | Schneider Electric |
Amperage Rating | 250 A |
Interrupt Rating | 100 KA 240 V AC-65 KA 480 V AC-25 KA 600 V AC,600 V AC |
Trip Type | ELECTRONIC, AMMETER, MICROLOGIC 6.2 A, LSIG |
Voltage Rating | 600 VAC |
Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets |
UNIT MOUNT |
Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
Flexible and simple offer, with proven performance |
Direct access to energy metering and energy efficiency |
100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC interrupt rating |
