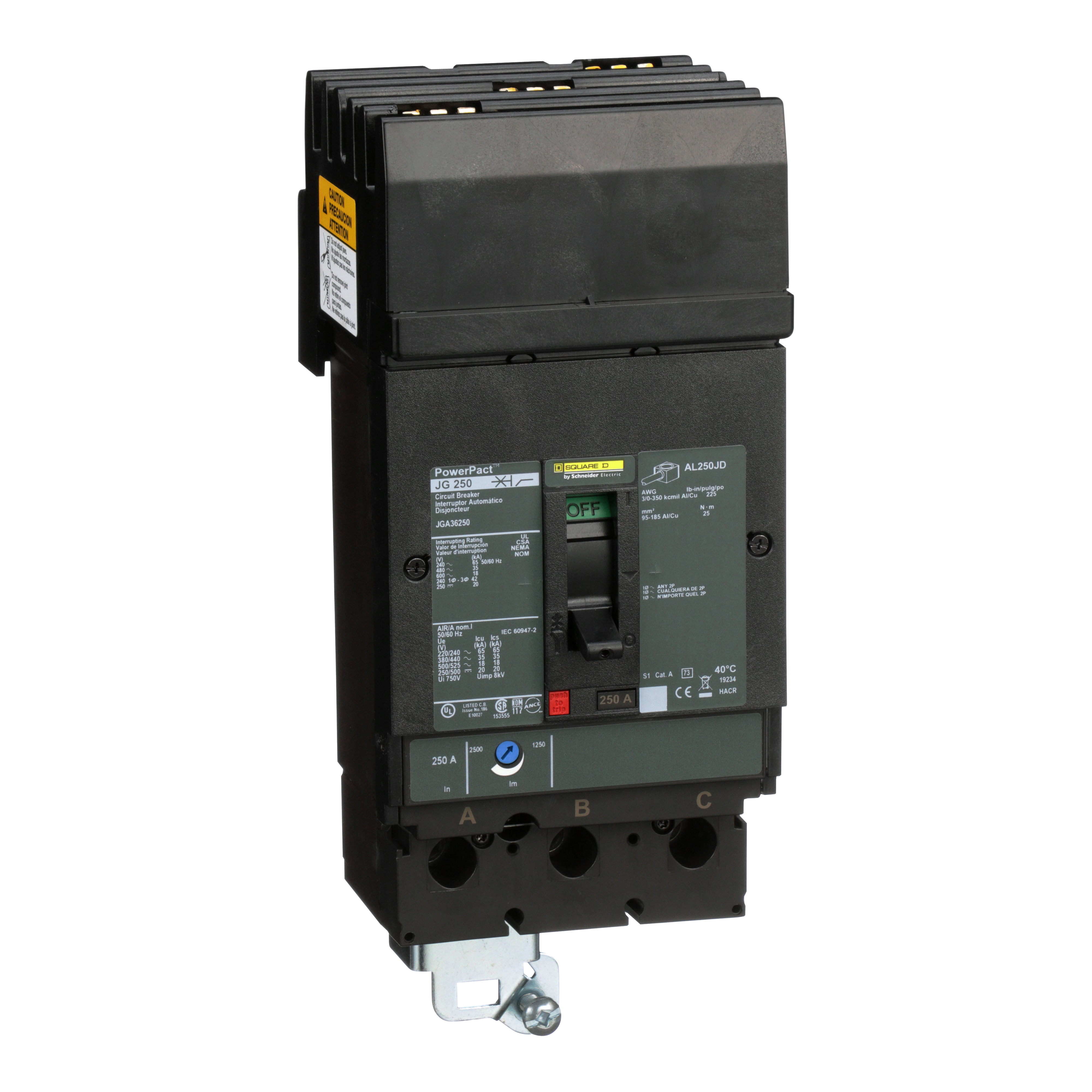

Square D™ PowerPact™ JGA36250 Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 18/20/35/65 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
239051
MFG #: JGA36250
Square D™
3107.80000
/ ea
Square D JGA36250 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 250A,-13F and 158F (-25 C and +70 C),250A,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,J-Frame,Low 1250A - High 2500A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=8095947360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JGA36250_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions URL - Square_D_JDA36150_Installation_Instructions.pdf(Install Instructions URL)
- Compliance Cert URL - Square_D_JGA36250_Compliance_Certificate.pdf(Compliance Cert URL)
- Catalog URL - Schneider_Electric_HCN14524_Catalog.pdf(Catalog URL)
- Spec Sheet URL - 11003_8ZX945VKLWJP67OR.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0600DB1604.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_CKU5AF7YLZ9SWVGB.pdf(Tech Drawing URL)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Video - https://youtube.com/embed/65pcjiB4F1U(Video)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- Video - https://www.youtube.com/embed/GHPCn0u1IUE(Video)
- Applications
- Features
| Distribution |
| I-LINE PLUG-ON |
| I-Line™ connection (ON end) - lugs (OFF end) ABC |
| 3/0 AWG to 350 kcmil copper/aluminum cable wire size |
| 65 kA at 240 VAC, 35 kA at 480 VAC interrupt rating |
