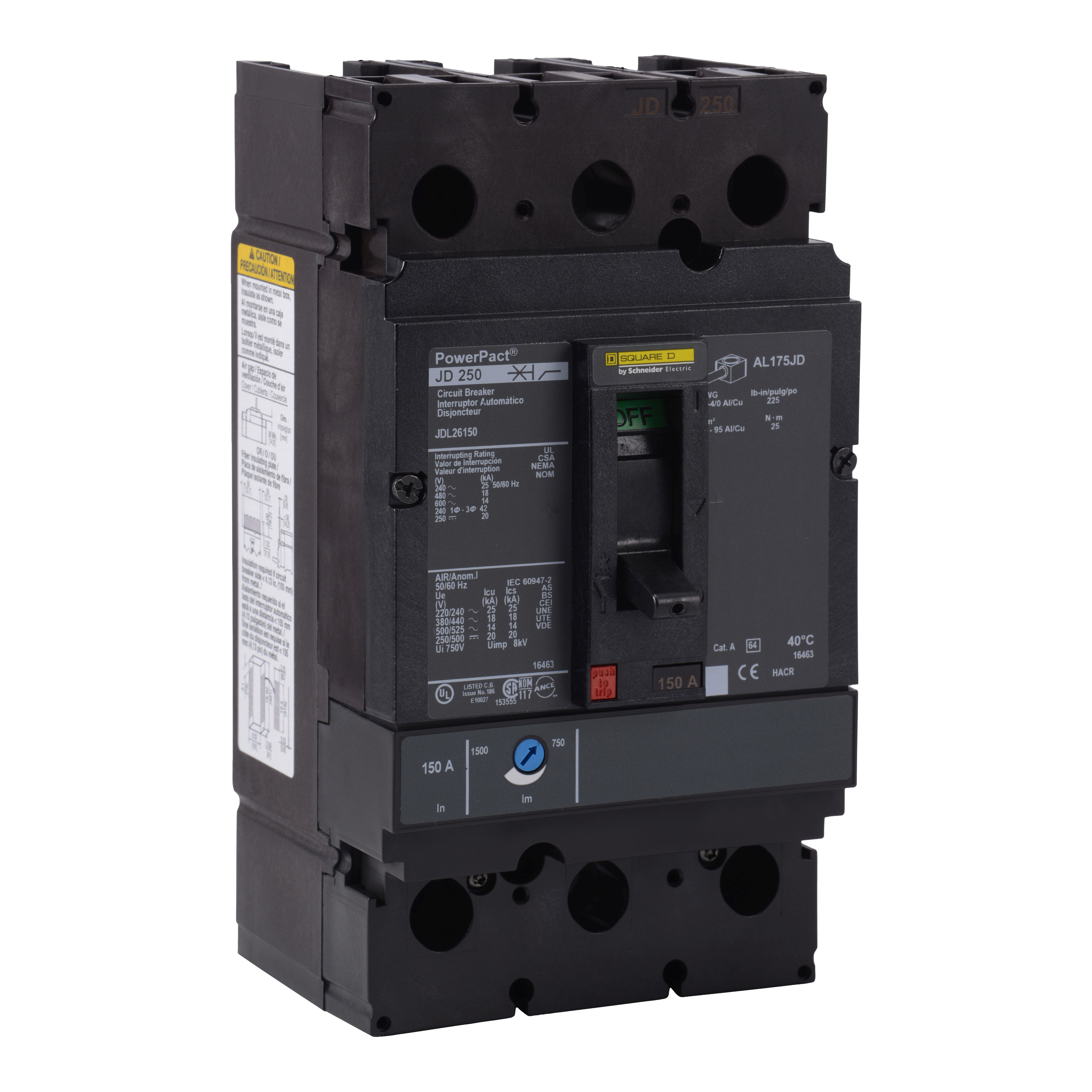

Square D™ PowerPact™ JDL26150 Type JDL Molded Case Circuit Breaker, 600 VAC/250 VDC, 150 A, 2 Poles
Molded Case Circuit Breakers
429268
MFG #: JDL26150
Square D™
1886.04000
/ ea
Square D JDL26150 MOLDED CASE CIRCUIT BREAKER 600V 150A,14 kA 600 V AC-20 kA 250 V DC-18 kA 480 V AC-25 kA 240 V AC,250 V DC-600 V AC,150 A,150 A,750...1500 A,2-Pole,250 V DC-600 V AC,J-Frame,Line Lug - Load Lug,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,thermal-magnetic,unit mount
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JDL26150_2D+Bottom+View.dxf(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_9IK305QSXPMR6OEJ.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_ZCELB8SPIJWGDUQ4.zip(Tech Drawing URL)
- User Manual URL - 11003_2BJ69C04G7FEHRNX.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/0ifsiqiXvbg(Video)
- Video - https://www.youtube.com/embed/wCXL5fqf9PE(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
| Rated current from 70 to 250 A |
| Breaking capacity from 18 to 65 kA at 480 VAC |
| Common accessories and auxiliaries with other PowerPact™ frames |
| 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
