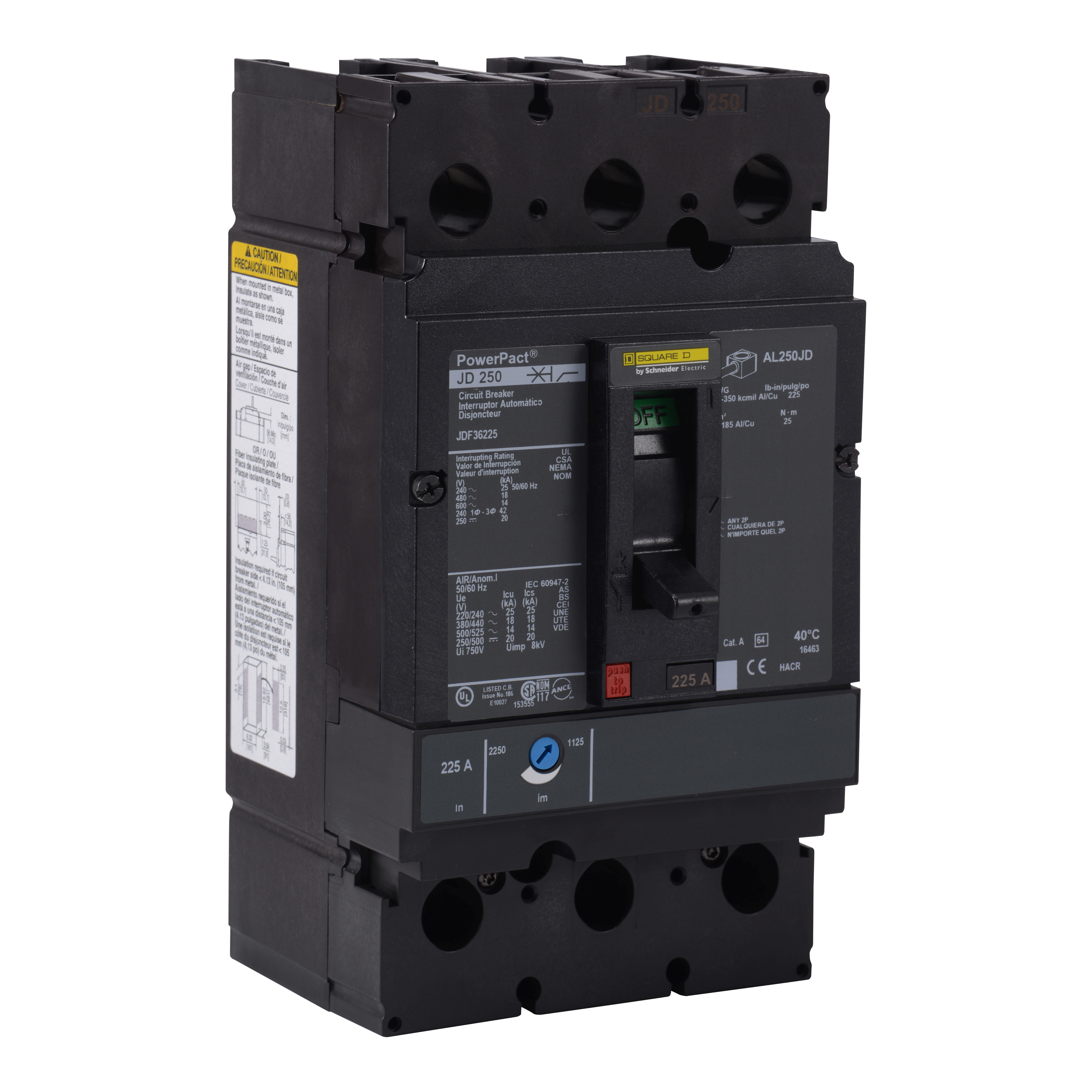

Square D™ PowerPact™ JDF36250 Molded Case Circuit Breaker, 600 VAC, 250 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
PDW~11729034
MFG #: JDF36250
Square D™
0.00000
/ ea
Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz Frequency, 14 kA Interrupt, J Frame, Thermal Magnetic Trip, 1250 to 2500 A Trip, 3 Poles, Busbar Line/Load Connection, 3/0 AWG to 350 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Backplate/DIN Rail/Flush Mounting, 104 deg F
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=48996-022-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_YV3EWLGDB1KPRFOZ.pdf(Service Manual URL)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_7M34QVGT0RBXC1WN.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0600DB1604.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_BFDSCUWEA6K9QLRI.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_CKU5AF7YLZ9SWVGB.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/8QrMlzB1bxs(Video)
- User Manual URL - 11003_2BJ69C04G7FEHRNX.pdf(User Manual URL)
- Applications
- Features
| Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization using PowerPact™ H and J-frame circuit breakers |
| Common accessories across the range of PowerPact™ Molded Case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
| IEC style rotary operating handles |
| NEMA 9421 door mounted rotary operating mechanism |
| NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated |
| Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency thanks to the Micrologic control units |
