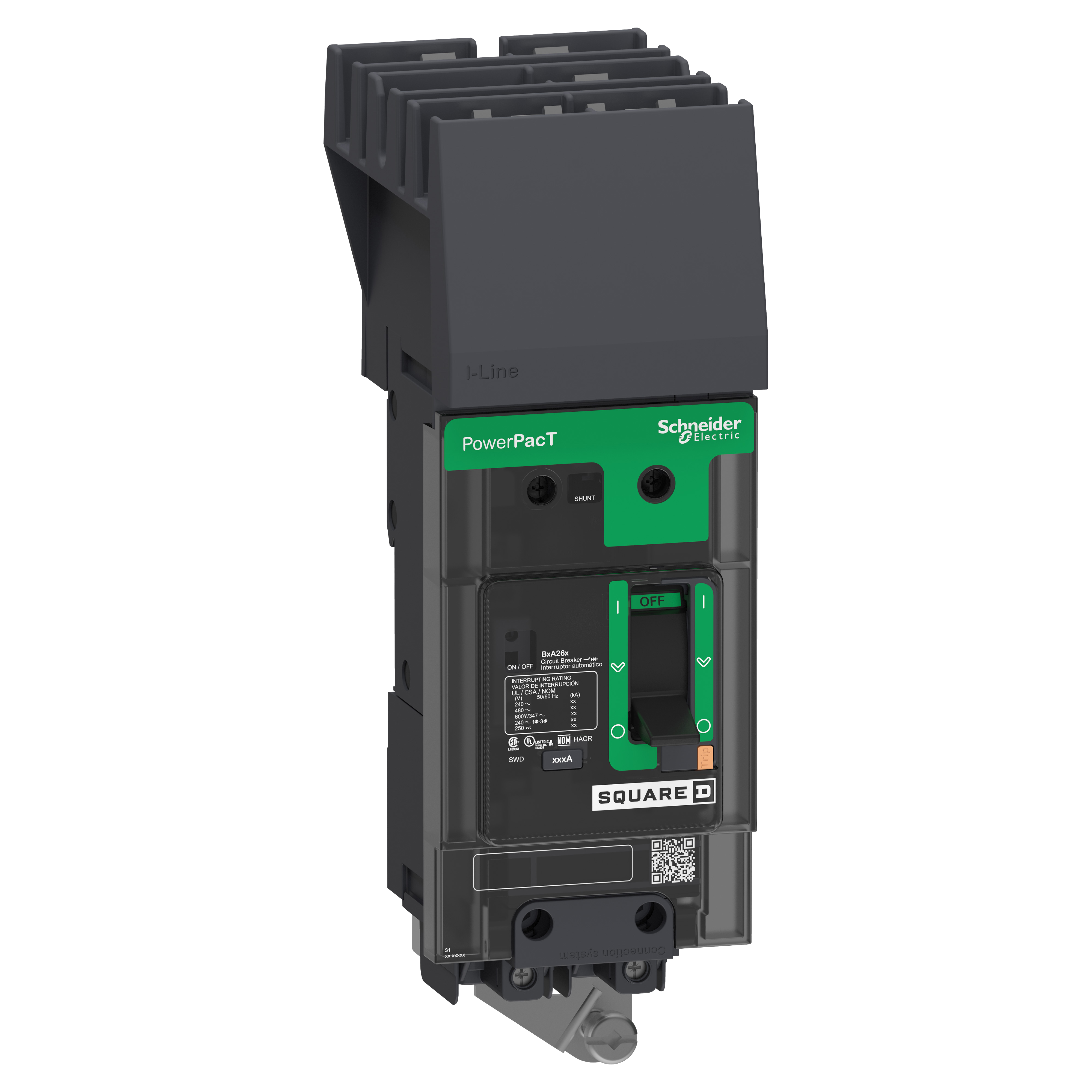

Square D™ PowerPact® I-Line® BGA260902 Type BGA Molded Case Circuit Breaker, 600Y/347 VAC, 90 A, 18 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Molded Case Circuit Breakers
PDW~13516585
MFG #: BGA260902
Square D™
0.00000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=14255541360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9KJEVN7GRBCHIZ3Y.pdf(Brochure URL)
- Brochure URL - 11003_HEG1U8LF92ZOSQD5.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=BGA260902_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=EAV91190 Rev01 2P B I-Line NA.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_DC1QF5WT4OKRJ9HY.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_RQOE5MLXIU2Z70T9.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_XSEH5794VWUZ0KJN.pdf(Tech Drawing URL)
- Applications
- Features
| Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building Applications |
| I-Line™ circuit breakers use blow on type line side connectors |
| In case of a short circuit, increased magnetic flux causes the plug on connectors of the circuit breaker to tighten their grasp on the busbars |
| I-Line™ connectors and circuit breaker mounting bracket are integral parts of I-Line™ circuit breakers and cannot be removed or replaced |
| I-Line™ circuit breakers come with aluminum mechanical load-side lugs or optional copper mechanical lugs, EverLink™ lugs with control wire terminals or terminal nuts to connect to busbars or to compression (crimp) lugs |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC interrupt rating |
| AC phase connection |
| I-Line™ ON end, aluminum mechanical lug OFF end terminations |
