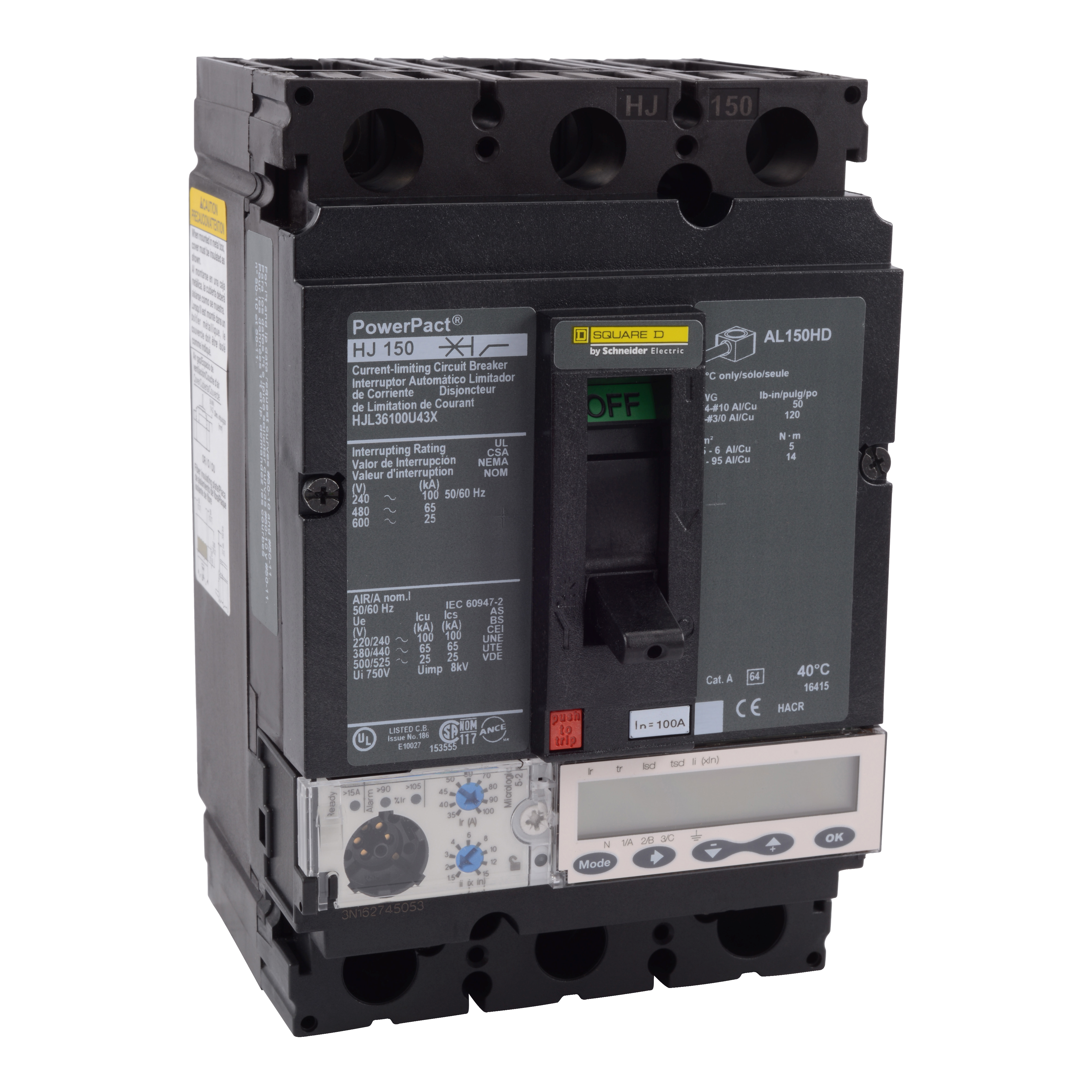

Square D™ PowerPact™ HJL36100U43X Molded Case Circuit Breaker, 600 VAC, 100 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HJL36100U43X Molded Case Circuit Breaker, 600 VAC, 100 A, 3 Poles
SKUPDW~11721641
MFGR #HJL36100U43X
Call For Price
List: Schneider Electric HJL36100U43X,MOLDED CASE CIRCUIT BREAKER 600V 100A
Schneider Electric HJL36100U43X,MOLDED CASE CIRCUIT BREAKER 600V 100A
Actuator Toggle Alternate Catalog Number HJL36100U43X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HJL36100U43X Connection Lugs line;lugs load; AWG 14...AWG 3/0 aluminium/copper terminal Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0227 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.0180 CM Height [Metric] 13.0180 cm Item Group 01107 Length 21.4330 CM Length [Metric] 21.4330 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980292&lang=en-us Mounting Type Surface Number Of Poles 3 Phase 3 pH Returnable Y Sub Brand PowerPact H Temperature Rating 104 °F Trip Range 900 to 1700 A Type Circuit Breaker UNSPSC 39121616 UPC 11 78590151710 UPC 12 785901517108 Warranty Description Contractual Warranty:18 months Width 18.0000 CM Width [Metric] 18.4150 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Trip Type Electronic LSI/Thermal Magnetic Voltage Rating 600 VAC Distribution Modbus;Ethernet;1 Easy to install, extremely versatile, a wide variety of terminal Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | HJL36100U43X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJL36100U43X |
| Connection | Lugs line;lugs load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0227 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.0180 CM |
| Height [Metric] | 13.0180 cm |
| Item Group | 01107 |
| Length | 21.4330 CM |
| Length [Metric] | 21.4330 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980292&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Sub Brand | PowerPact H |
| Temperature Rating | 104 °F |
| Trip Range | 900 to 1700 A |
| Type | Circuit Breaker |
| UNSPSC | 39121616 |
| UPC 11 | 78590151710 |
| UPC 12 | 785901517108 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.0000 CM |
| Width [Metric] | 18.4150 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC |
| Trip Type | Electronic LSI/Thermal Magnetic |
| Voltage Rating | 600 VAC |
| Distribution |
| Modbus;Ethernet;1 |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
