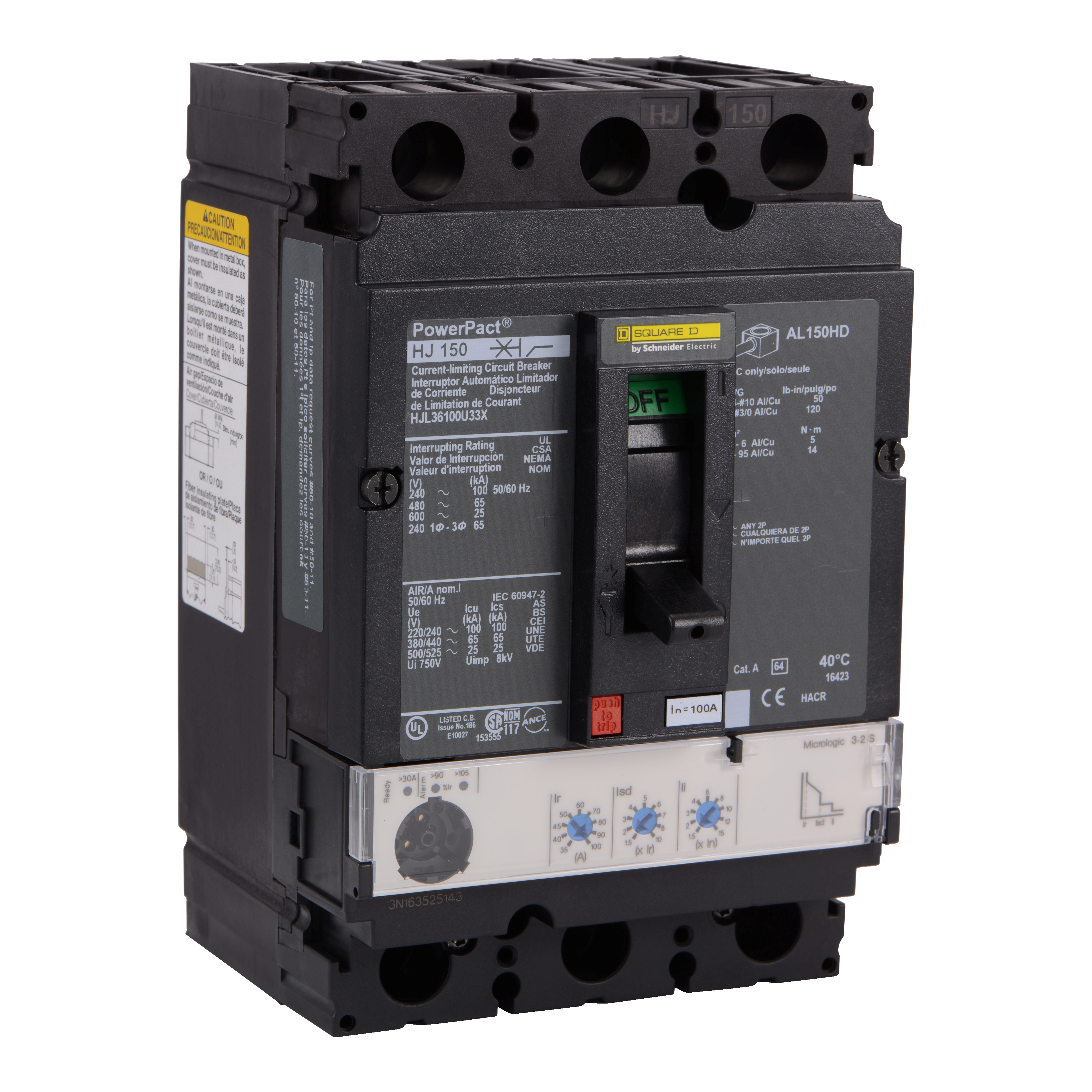

Square D™ PowerPact™ HJL36100U33X Molded Case Circuit Breaker, 600 VAC, 100 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HJL36100U33X Molded Case Circuit Breaker, 600 VAC, 100 A, 3 Poles
SKUPDW~11083622
MFGR #HJL36100U33X
Price Not Available
Schneider Electric HJL36100U33X MOLDED CASE CIRCUIT BREAKER 600V 100A,100 A,100 A,25 kA 600 V AC-65 kA 480 V AC-100 kA 240 V AC,600 V AC,600 V AC,J,circuit breaker,electronic standard Micrologic 3.2 S LSI,unit mount
Schneider Electric HJL36100U33X MOLDED CASE CIRCUIT BREAKER 600V 100A,100 A,100 A,25 kA 600 V AC-65 kA 480 V AC-100 kA 240 V AC,600 V AC,600 V AC,J,circuit breaker,electronic standard Micrologic 3.2 S LSI,unit mount
Actuator Type Toggle Alternate Catalog Number HJL36100U33X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HJL36100U33X Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0227 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.0180 in Height [Metric] 13.0180 cm Item Group 01107 Length 21.4330 in Length [Metric] 21.4330 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980290&lang=en-us Mounting Type Surface Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard CSA-CCC-CE-UL LISTED-IEC Temperature Rating 104 °F Trip Range 100 A Type Type HJL UNSPSC 39121601 UPC 11 78590185247 UPC 12 785901852476 Warranty Description Contractual Warranty:18 months Width 18.4150 in Width [Metric] 18.4150 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC Trip Type Electronic LSI/Thermal Magnetic Voltage Rating 600 VAC Distribution UNIT MOUNT Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | HJL36100U33X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJL36100U33X |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0227 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.0180 in |
| Height [Metric] | 13.0180 cm |
| Item Group | 01107 |
| Length | 21.4330 in |
| Length [Metric] | 21.4330 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980290&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CSA-CCC-CE-UL LISTED-IEC |
| Temperature Rating | 104 °F |
| Trip Range | 100 A |
| Type | Type HJL |
| UNSPSC | 39121601 |
| UPC 11 | 78590185247 |
| UPC 12 | 785901852476 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.4150 in |
| Width [Metric] | 18.4150 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC |
| Trip Type | Electronic LSI/Thermal Magnetic |
| Voltage Rating | 600 VAC |
| Distribution |
| UNIT MOUNT |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
| 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC interrupt rating |
