Square D™ PowerPact™ HJA36150 Molded Case Circuit Breaker, 600 VAC/250 VDC, 150 A, 20/25/65/100 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration

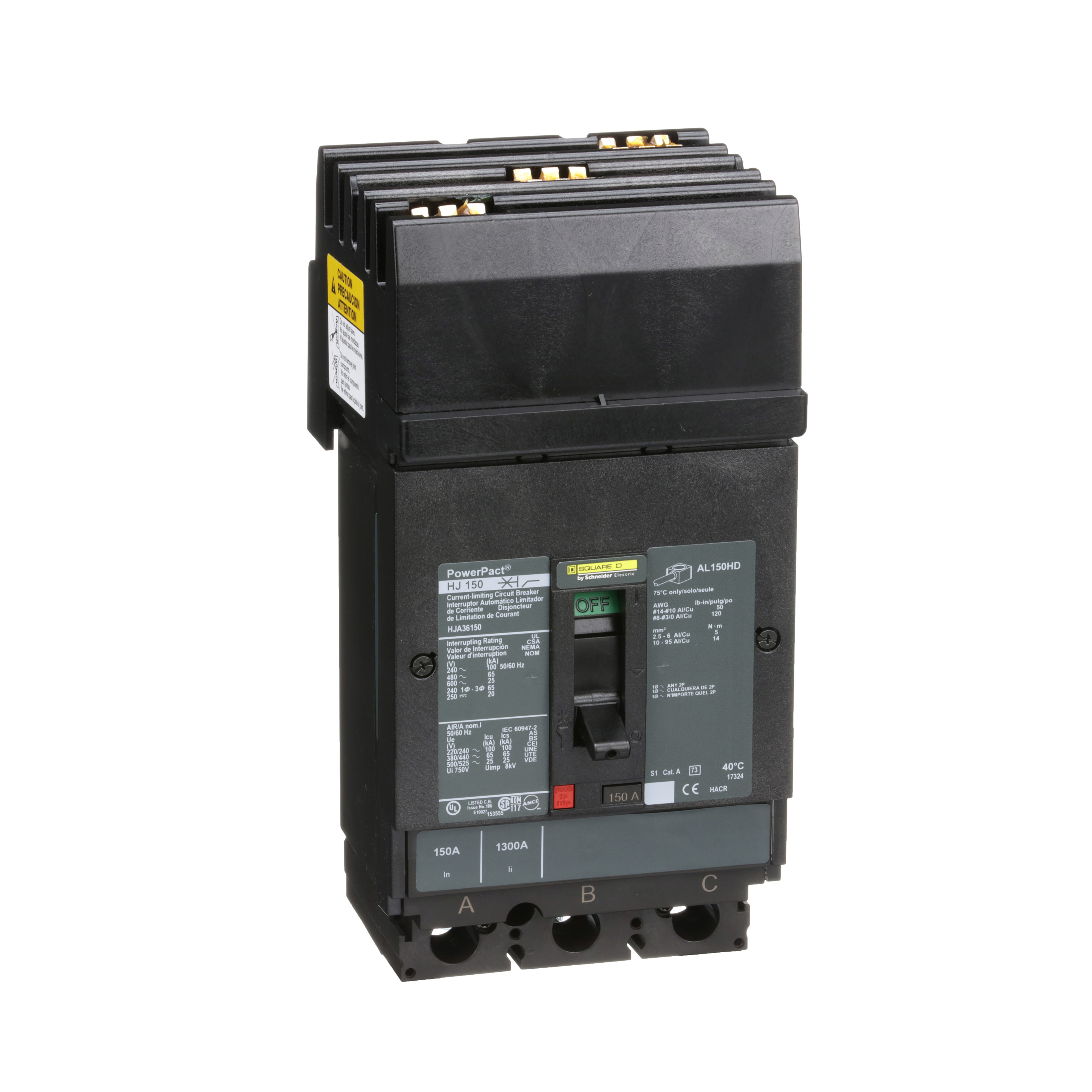

Square D™ PowerPact™ HJA36150 Molded Case Circuit Breaker, 600 VAC/250 VDC, 150 A, 20/25/65/100 kA Interrupt, 3 Poles
SKU278196
MFGR #HJA36150
Your Cost: $3,462.08/ea
List: Square D HJA36150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 150A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,150A,3,50/60Hz,600 Vac/250 Vdc,H-Frame,Hold 900A - Trip 1700A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HJA36150 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 150A,-13F and 158F (-25 C and +70 C),100kA240VAC - 65kA480VAC - 25kA600VAC - 20kA250VDC,150A,3,50/60Hz,600 Vac/250 Vdc,H-Frame,Hold 900A - Trip 1700A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Alternate Catalog Number HJA36150 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HJA36150 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line™ Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 754.80 Gross Volume per Pack Metric 12368.91 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 6.0800 lb Gross Weight per Pack Metric 2.75 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.2400 in Height [Metric] 15.2400 cm Item Group 01117 Length 37.5920 in Length [Metric] 37.5920 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423519&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Series HJA Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number PDC3HD2 Temperature Rating -13 to 158 °F Trip Range 900 A Hold, 1700 A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590165154 UPC 12 785901651543 Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.5900 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 150 A Interrupt Rating 20/25 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HJA36150 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HJA36150 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line™ Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 754.80 |
| Gross Volume per Pack Metric | 12368.91 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 6.0800 lb |
| Gross Weight per Pack Metric | 2.75 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.2400 in |
| Height [Metric] | 15.2400 cm |
| Item Group | 01117 |
| Length | 37.5920 in |
| Length [Metric] | 37.5920 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423519&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | HJA |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | PDC3HD2 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 900 A Hold, 1700 A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590165154 |
| UPC 12 | 785901651543 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 150 A |
| Interrupt Rating | 20/25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
