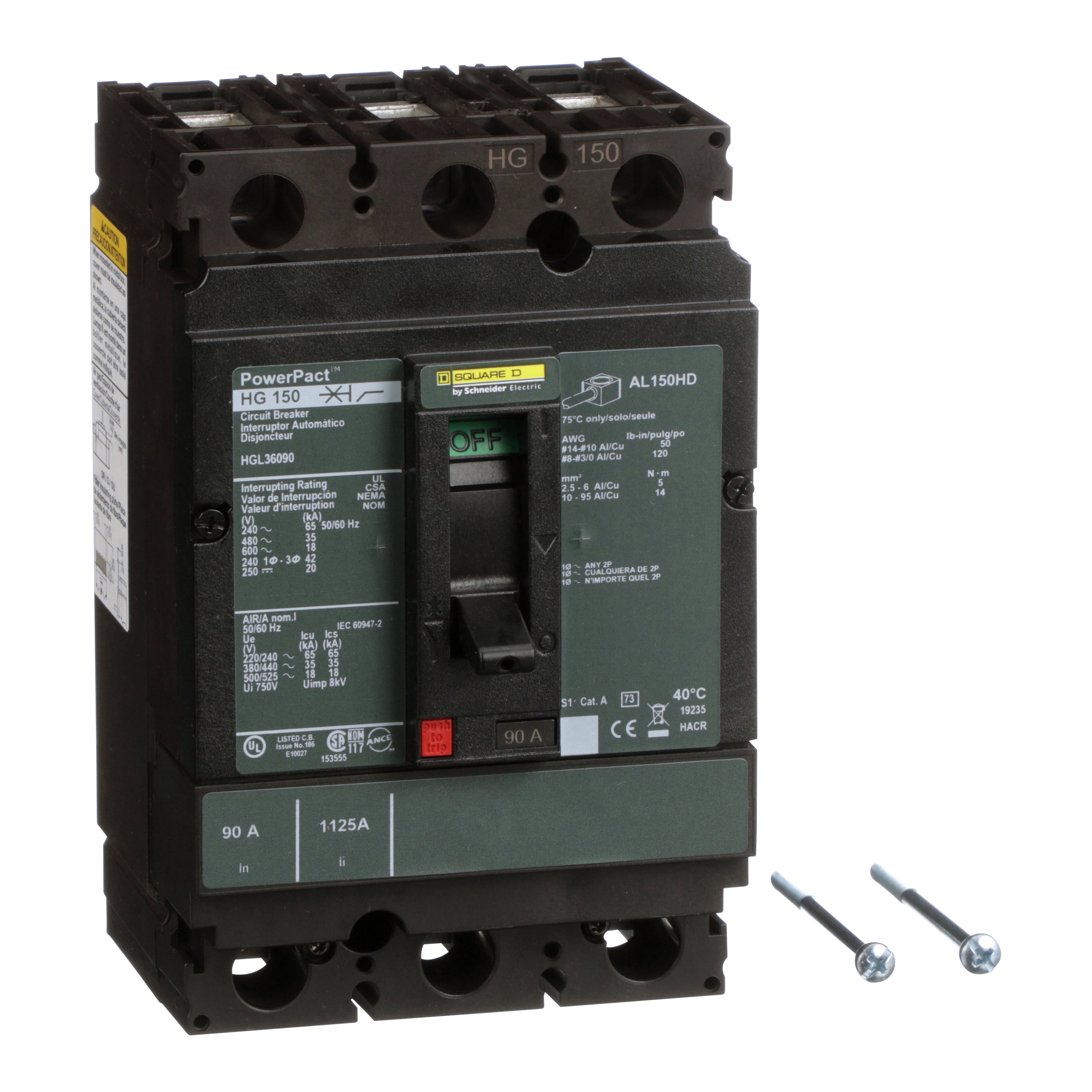

Square D™ PowerPact™ HGL Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 90 A, 18 to 20 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HGL Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 90 A, 18 to 20 kA Interrupt, 3 Poles
SKU327404
MFGR #HGL36090
$/ea
Square D HGL36090 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 90A,-13F and 158F (-25 C and +70 C),104 mm,163 mm,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,86 mm,90A,H-Frame,Hold 800A - Trip 1450A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D HGL36090 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 90A,-13F and 158F (-25 C and +70 C),104 mm,163 mm,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,86 mm,90A,H-Frame,Hold 800A - Trip 1450A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Alternate Catalog Number HGL36090 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HGL36090 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 86 mm L x 104 mm W x 163 mm H EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 378.45 Gross Volume per Pack Metric 6201.66 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0190 lb Gross Weight per Pack Metric 1.85 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.7320 in Height [Metric] 14.5000 cm Item Group 01115 Length 22.0980 in Length [Metric] 22.6000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422833&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Returnable Y Series HGL Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number PDC3HD2 Temperature Rating -13 to 158 °F Trip Range 800 A Hold, 1450 A Type Type HGL UNSPSC 39121601 UPC 11 78590188372 UPC 12 785901883722 Warranty Description Contractual Warranty:18 months Width 19.0500 in Width [Metric] 18.8000 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 90 A Interrupt Rating 18/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution UNIT MOUNT 65 kA at 240 VAC, 35 kA at 480 VAC, 20 kA at 500 VDC interrupt rating Aluminum/copper wire Unit mount
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HGL36090 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HGL36090 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 86 mm L x 104 mm W x 163 mm H |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 378.45 |
| Gross Volume per Pack Metric | 6201.66 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0190 lb |
| Gross Weight per Pack Metric | 1.85 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.7320 in |
| Height [Metric] | 14.5000 cm |
| Item Group | 01115 |
| Length | 22.0980 in |
| Length [Metric] | 22.6000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422833&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Returnable | Y |
| Series | HGL |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | PDC3HD2 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 800 A Hold, 1450 A |
| Type | Type HGL |
| UNSPSC | 39121601 |
| UPC 11 | 78590188372 |
| UPC 12 | 785901883722 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.0500 in |
| Width [Metric] | 18.8000 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 90 A |
| Interrupt Rating | 18/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| UNIT MOUNT |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 20 kA at 500 VDC interrupt rating |
| Aluminum/copper wire |
| Unit mount |
