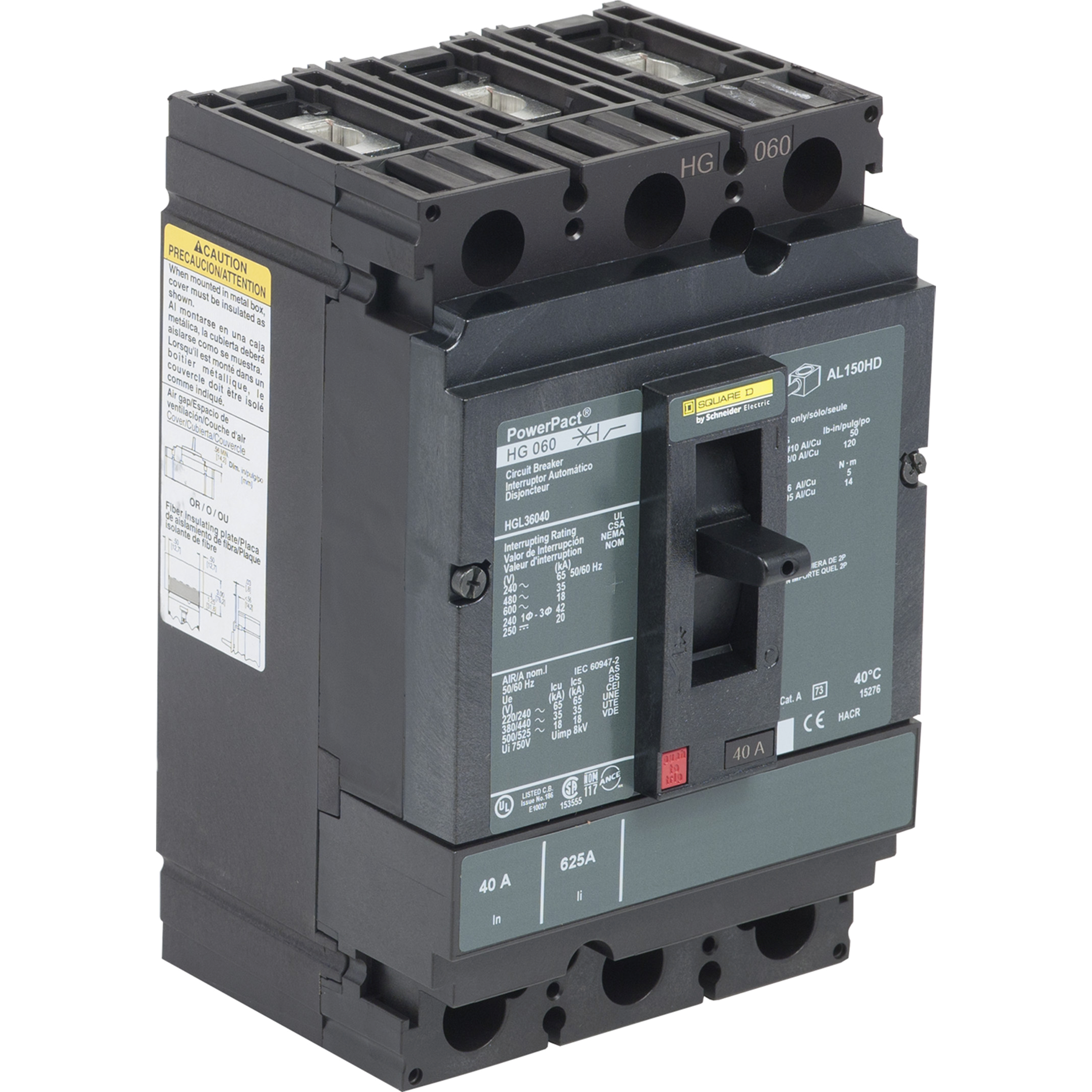

Square D™ PowerPact™ HGL Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 40 A, 18 to 20 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HGL Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 40 A, 18 to 20 kA Interrupt, 3 Poles
SKU409541
MFGR #HGL36040
$/ea
Square D HGL36040 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 40A,-13F and 158F (-25 C and +70 C),104 mm,163 mm,3,40A,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,86 mm,H-Frame,Hold 400A - Trip 850A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D HGL36040 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 40A,-13F and 158F (-25 C and +70 C),104 mm,163 mm,3,40A,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,86 mm,H-Frame,Hold 400A - Trip 850A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Actuator Toggle Alternate Catalog Number HGL36040 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HGL36040 Connection Lugs line;lugs load; AWG 14...AWG 3/0 aluminium/copper terminal Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 86 mm L x 104 mm W x 163 mm H EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 414.05 Gross Volume per Pack Metric 6785.04 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0184 lb Gross Weight per Pack Metric 1.84 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.5000 in Height [Metric] 14.5000 cm Item Group 01115 Length 22.4000 in Length [Metric] 22.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422751&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Returnable Y Series HGL Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29386 Temperature Rating -13 to 158 °F Trip Range 400 A Hold, 850 A Type Circuit Breaker UNSPSC 39121616 UPC 11 78590159874 UPC 12 785901598749 Warranty Description Contractual Warranty:18 months Width 18.8000 in Width [Metric] 18.8000 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 18/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution UNIT MOUNT 400 A hold, 850 A trip current 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC, 20 kA at 250 VDC interrupt rating Al/Cu wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | HGL36040 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HGL36040 |
| Connection | Lugs line;lugs load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 86 mm L x 104 mm W x 163 mm H |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 414.05 |
| Gross Volume per Pack Metric | 6785.04 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0184 lb |
| Gross Weight per Pack Metric | 1.84 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.5000 in |
| Height [Metric] | 14.5000 cm |
| Item Group | 01115 |
| Length | 22.4000 in |
| Length [Metric] | 22.4000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422751&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Returnable | Y |
| Series | HGL |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 400 A Hold, 850 A |
| Type | Circuit Breaker |
| UNSPSC | 39121616 |
| UPC 11 | 78590159874 |
| UPC 12 | 785901598749 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.8000 in |
| Width [Metric] | 18.8000 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 18/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| UNIT MOUNT |
| 400 A hold, 850 A trip current |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC, 20 kA at 250 VDC interrupt rating |
| Al/Cu wire |
