Square D™

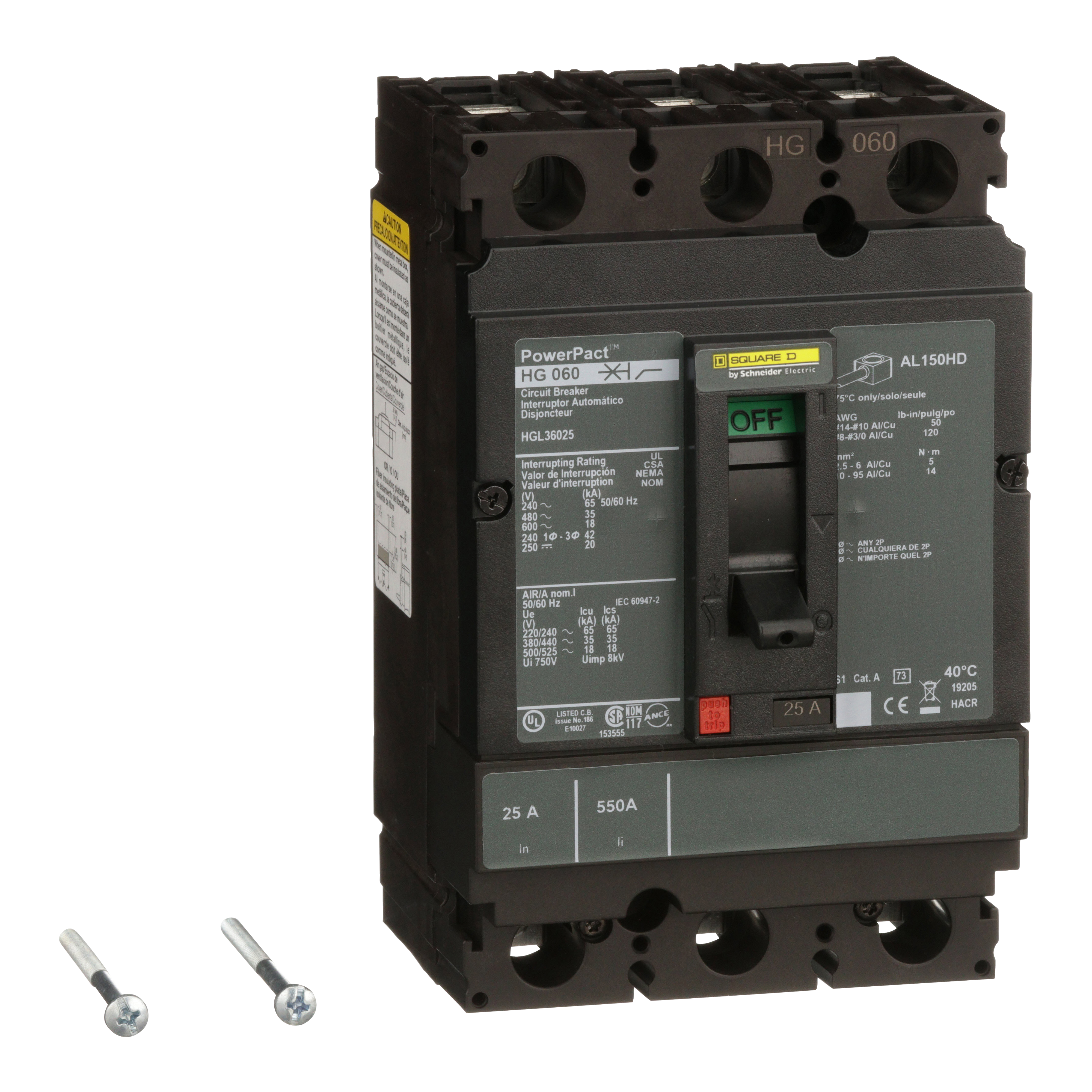

Square D™ PowerPact™ HGL Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 25 A, 18 to 20 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ HGL Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 25 A, 18 to 20 kA Interrupt, 3 Poles
SKU429226
MFGR #HGL36025
Your Cost: $1,294.64/ea
List: Square D HGL36025 MOLDED CASE CIRCUIT BREAKER 600V 25A,25 A,25 A,350 A,750 A,250 V DC-600 V AC,250 V DC-600 V AC,35 kA 480 V AC-18 kA 600 V AC-65 kA 240 V AC-20 kA 250 V DC,3-Pole,G,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,thermal-magnetic,unit mount
Square D HGL36025 MOLDED CASE CIRCUIT BREAKER 600V 25A,25 A,25 A,350 A,750 A,250 V DC-600 V AC,250 V DC-600 V AC,35 kA 480 V AC-18 kA 600 V AC-65 kA 240 V AC-20 kA 250 V DC,3-Pole,G,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,thermal-magnetic,unit mount
Alternate Catalog Number HGL36025 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HGL36025 Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame G Frequency Rating 50/60 Hz Gross Volume Per Pack 405.00 Gross Volume per Pack Metric 6636.74 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.1400 lb Gross Weight per Pack Metric 1.88 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.2240 in Height [Metric] 14.2240 cm Item Group 01115 Length 22.3520 in Length [Metric] 22.3520 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422713&lang=en-us Mounting Type Unit Number Of Poles 3 Operating Temperature 40 °C Returnable Y Standard CE-IEC-UL LISTED-CSA Sub Brand POWERPACT Substitute Product Catalog Number S29386 Temperature Rating 104 °F Trip Range 25 A, 350 A, 750 A Type Type HGL UNSPSC 39121601 UPC 11 78590159871 UPC 12 785901598718 Warranty Description Contractual Warranty:18 months Width 18.7960 in Width [Metric] 18.7960 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 25 A Interrupt Rating 18/20/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250/500 VDC Distribution UNIT MOUNT 350 A hold, 750 A trip current Al/Cu wire Unit mounting 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC, 20 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HGL36025 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HGL36025 |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | G |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 405.00 |
| Gross Volume per Pack Metric | 6636.74 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.1400 lb |
| Gross Weight per Pack Metric | 1.88 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.2240 in |
| Height [Metric] | 14.2240 cm |
| Item Group | 01115 |
| Length | 22.3520 in |
| Length [Metric] | 22.3520 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422713&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Returnable | Y |
| Standard | CE-IEC-UL LISTED-CSA |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Temperature Rating | 104 °F |
| Trip Range | 25 A, 350 A, 750 A |
| Type | Type HGL |
| UNSPSC | 39121601 |
| UPC 11 | 78590159871 |
| UPC 12 | 785901598718 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.7960 in |
| Width [Metric] | 18.7960 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 25 A |
| Interrupt Rating | 18/20/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250/500 VDC |
| Distribution |
| UNIT MOUNT |
| 350 A hold, 750 A trip current |
| Al/Cu wire |
| Unit mounting |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC, 20 kA at 250 VDC interrupt rating |
