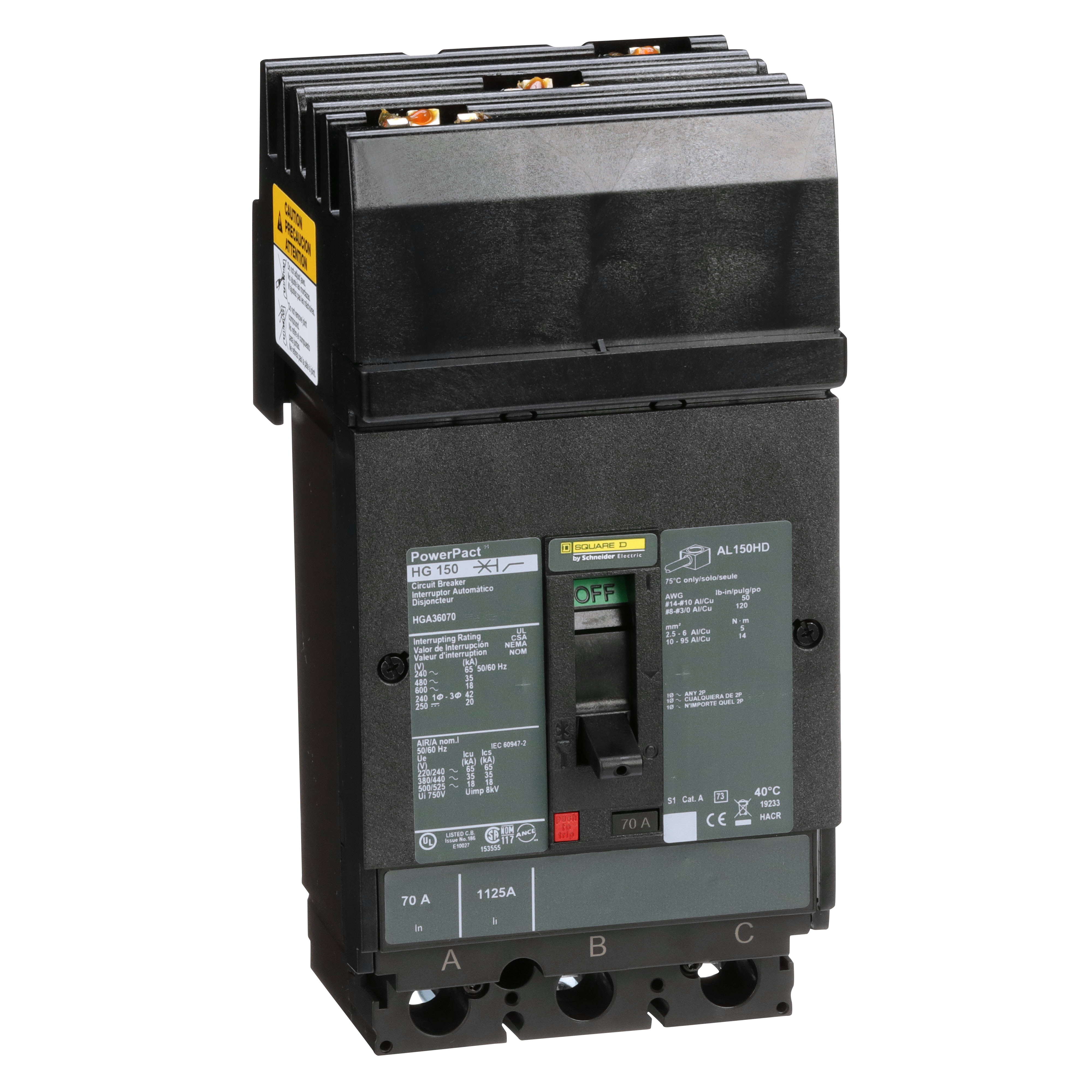

Square D™ PowerPact™ HGA36070 Molded Case Circuit Breaker, 600 VAC/250 VDC, 70 A, 18/20/35/65 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HGA36070 Molded Case Circuit Breaker, 600 VAC/250 VDC, 70 A, 18/20/35/65 kA Interrupt, 3 Poles
SKU380103
MFGR #HGA36070
Your Cost: $1,129.38/ea
List: Square D HGA36070 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 70A,-13F and 158F (-25 C and +70 C),3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,70A,H-Frame,Hold 800A - Trip 1450A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HGA36070 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 70A,-13F and 158F (-25 C and +70 C),3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,70A,H-Frame,Hold 800A - Trip 1450A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Alternate Catalog Number HGA36070 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HGA36070 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line™/Load Lug Country of Origin MX Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 777.75 Gross Volume per Pack Metric 12744.99 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.4700 lb Gross Weight per Pack Metric 2.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.4940 in Height [Metric] 15.0000 cm Item Group 01117 Length 38.1000 in Length [Metric] 37.6000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422465&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Series HGA Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29371 Temperature Rating -13 to 158 °F Trip Range 800 A Hold, 1450 A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590149129 UPC 12 785901491293 Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.8000 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 70 A Interrupt Rating 18/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON I-Line connection (ON end) - lugs (OFF end) ABC 14 - 3/0 AWG copper/aluminum 20 kA at 250 VDC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC 800 A hold, 1450 A trip Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HGA36070 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HGA36070 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line™/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 777.75 |
| Gross Volume per Pack Metric | 12744.99 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.4700 lb |
| Gross Weight per Pack Metric | 2.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.4940 in |
| Height [Metric] | 15.0000 cm |
| Item Group | 01117 |
| Length | 38.1000 in |
| Length [Metric] | 37.6000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422465&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | HGA |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29371 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 800 A Hold, 1450 A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590149129 |
| UPC 12 | 785901491293 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.8000 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 70 A |
| Interrupt Rating | 18/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line connection (ON end) - lugs (OFF end) ABC |
| 14 - 3/0 AWG copper/aluminum |
| 20 kA at 250 VDC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| 800 A hold, 1450 A trip |
