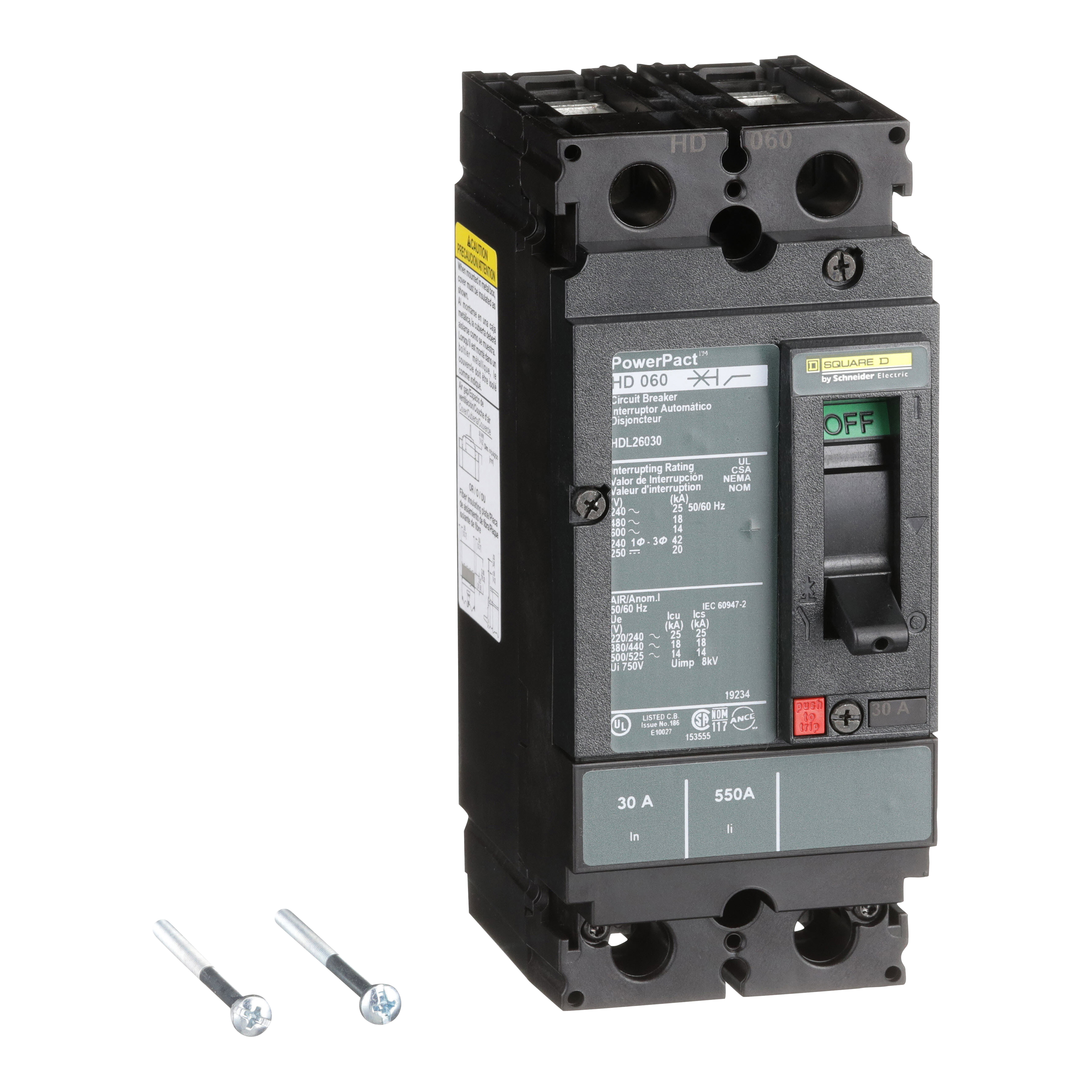

Square D™ PowerPact™ HDL26030 Molded Case Circuit Breaker, 600 VAC/250 VDC, 30 A, 14/18/20/25 kA Interrupt, 2 Poles
Molded Case Circuit Breakers
429193
MFG #: HDL26030
Square D™
754.41000
/ ea
Square D HDL26030 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 30A,-13F and 158F (-25 C and +70 C),163 mm,2,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,30A,50/60Hz,600 Vac/250 Vdc,70 mm,86 mm,H-Frame,Hold 350A - Trip 750A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
- 360 Degree View URL - index.html?pid=11003&id=8054921360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog 1 URL - Square_D_HDL26030_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HDL26030_2D+Front+View.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_FXH7MA1QBV6YLZGN.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_HDL26030_Installation_Instructions.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_CH71WDF50PQ8UVTX.pdf(Spec Sheet URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=48996-016-01.dwg(Tech Drawing URL)
- Video - https://docs.steinerelectric.com/IDW_DOCUMENT_ee2545c08666eef5564bbf902b05b329ac6743b1a20...(Video)
- Tech Bulletin URL - 11003_VRP57W264AQSK31L.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/1PjFQgO_-Ik(Video)
- User Manual URL - 11003_E9IAMWVOKTCDJUNZ.pdf(User Manual URL)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
| Unit mount |
| 14 - 3/0 AWG copper/aluminum |
| 20 kA at 250 VDC, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC |
| 350 A hold, 750 A trip |
| Standard |
