Square D™

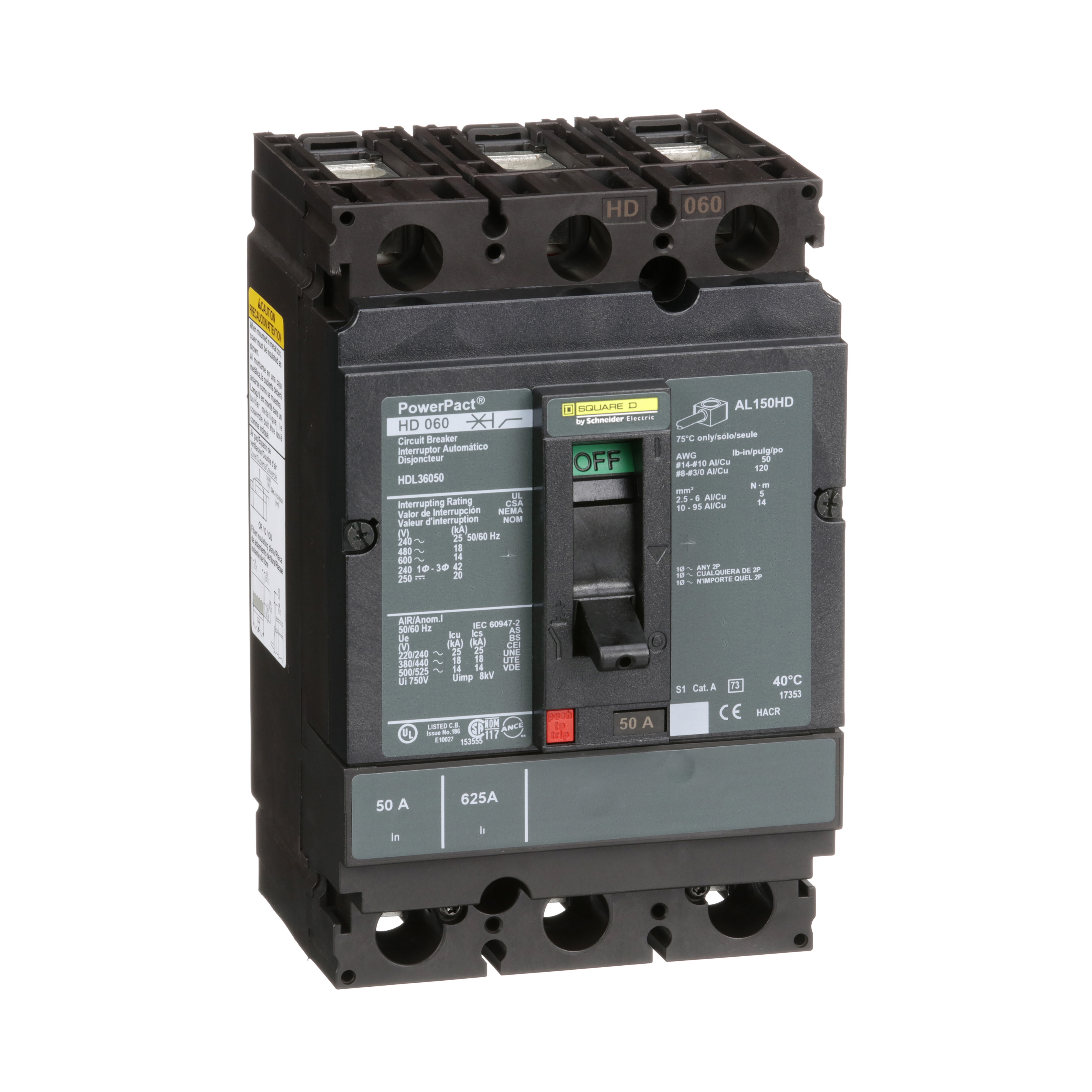

Square D™ PowerPact™ HDL Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 14 to 20 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ HDL Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 14 to 20 kA Interrupt, 3 Poles
SKU213143
MFGR #HDL36050
Call For Price
List: Square D HDL36050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),104 mm,163 mm,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,50A,600 Vac/250 Vdc,86 mm,H-Frame,Hold 400A - Trip 850A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D HDL36050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),104 mm,163 mm,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,50A,600 Vac/250 Vdc,86 mm,H-Frame,Hold 400A - Trip 850A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Alternate Catalog Number HDL36050 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number HDL36050 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 86 mm L x 104 mm W x 163 mm H EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 419.96 Gross Volume per Pack Metric 6881.97 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0184 lb Gross Weight per Pack Metric 1.84 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 16.5100 in Height [Metric] 16.5100 cm Item Group 01110 Length 23.1140 in Length [Metric] 23.1140 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421711&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Returnable Y Series HDL Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29386 Temperature Rating -13 to 158 °F Trip Range 400 A Hold, 850 A Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590170670 UPC 12 785901706700 Warranty Description Contractual Warranty:18 months Width 18.0340 in Width [Metric] 18.0340 cm Wire Size 14 to 3/0 AWG Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 50 A Interrupt Rating 14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC Distribution UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HDL36050 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDL36050 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 86 mm L x 104 mm W x 163 mm H |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 419.96 |
| Gross Volume per Pack Metric | 6881.97 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0184 lb |
| Gross Weight per Pack Metric | 1.84 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 16.5100 in |
| Height [Metric] | 16.5100 cm |
| Item Group | 01110 |
| Length | 23.1140 in |
| Length [Metric] | 23.1140 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421711&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Returnable | Y |
| Series | HDL |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 400 A Hold, 850 A |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590170670 |
| UPC 12 | 785901706700 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.0340 in |
| Width [Metric] | 18.0340 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 50 A |
| Interrupt Rating | 14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| Distribution |
| UNIT MOUNT |
