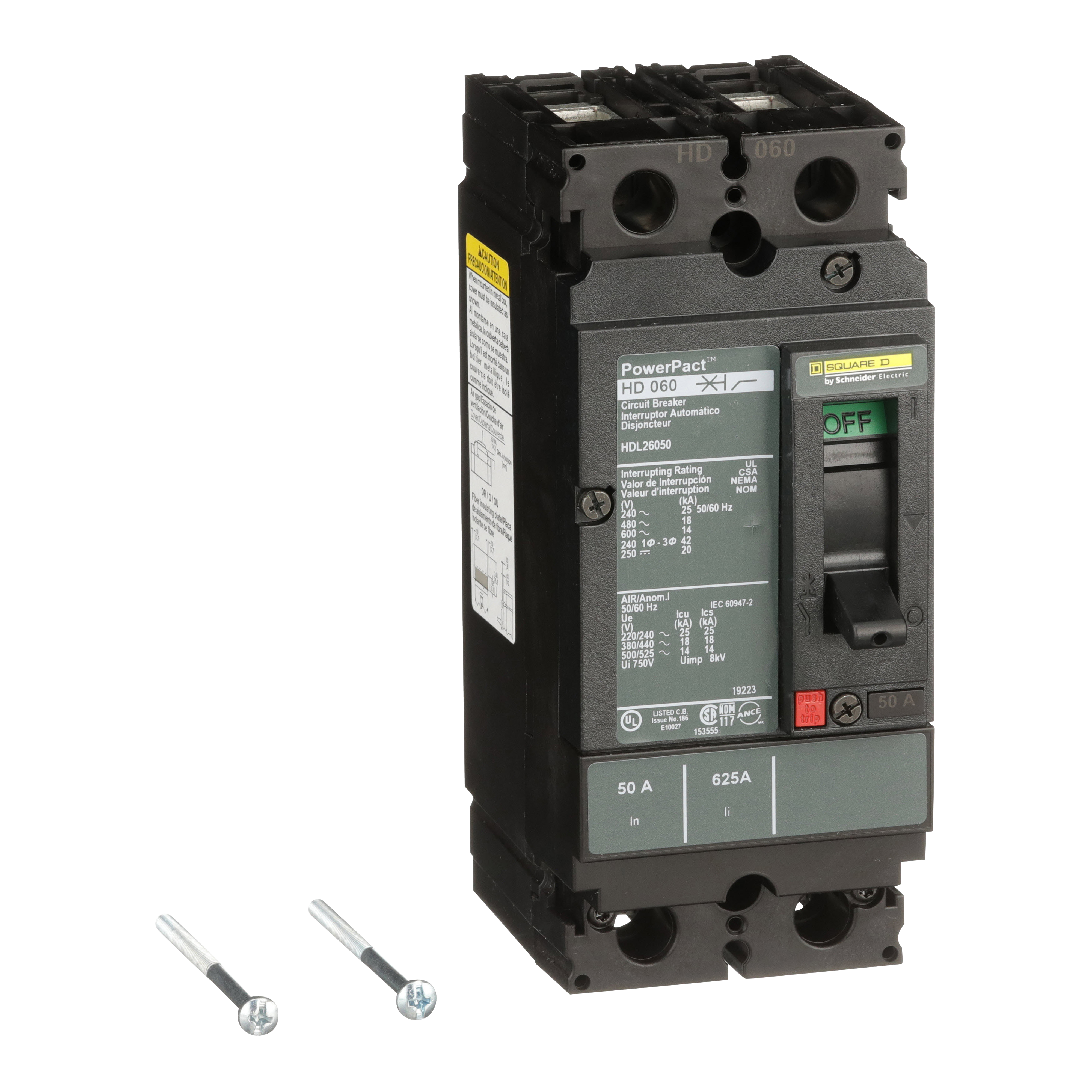

Square D™ PowerPact™ HDL Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 14 to 20 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HDL Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 14 to 20 kA Interrupt, 2 Poles
SKU429196
MFGR #HDL26050
Your Cost: $754.41/ea
List: Square D HDL26050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),163 mm,2,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,50/60Hz,50A,600 Vac/250 Vdc,70 mm,86 mm,H-Frame,Hold 400A - Trip 850A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D HDL26050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),163 mm,2,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,50/60Hz,50A,600 Vac/250 Vdc,70 mm,86 mm,H-Frame,Hold 400A - Trip 850A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Alternate Catalog Number HDL26050 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HDL26050 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 86 mm L x 70 mm W x 163 mm H EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 358.16 Gross Volume per Pack Metric 5869.17 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.9700 in Height [Metric] 14.2000 cm Item Group 01110 Length 22.3520 in Length [Metric] 21.8000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421567&lang=en-us Number Of Poles 2 Operating Temperature -13 to 158F (-25 to 70C) °C Returnable Y Series HDL Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Standards UL Listed, IEC, CSA Certified, CE Marked, RoHS Compliant Sub Brand POWERPACT Substitute Product Catalog Number PDC3HD2 Temperature Rating -13 to 158 °F Trip Range 400 A Hold, 850 A Type Type HDL UNSPSC 39121601 UPC 11 78590146189 UPC 12 785901461890 Warranty Description Contractual Warranty:18 months Width 18.7960 in Width [Metric] 19.1000 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 50 A Interrupt Rating 14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION UNIT MOUNT 400 A hold, 850 A trip current 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating Al/Cu wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HDL26050 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDL26050 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 86 mm L x 70 mm W x 163 mm H |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 358.16 |
| Gross Volume per Pack Metric | 5869.17 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.9700 in |
| Height [Metric] | 14.2000 cm |
| Item Group | 01110 |
| Length | 22.3520 in |
| Length [Metric] | 21.8000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421567&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Returnable | Y |
| Series | HDL |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Standards | UL Listed, IEC, CSA Certified, CE Marked, RoHS Compliant |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | PDC3HD2 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 400 A Hold, 850 A |
| Type | Type HDL |
| UNSPSC | 39121601 |
| UPC 11 | 78590146189 |
| UPC 12 | 785901461890 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.7960 in |
| Width [Metric] | 19.1000 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 50 A |
| Interrupt Rating | 14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
| 400 A hold, 850 A trip current |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating |
| Al/Cu wire |
