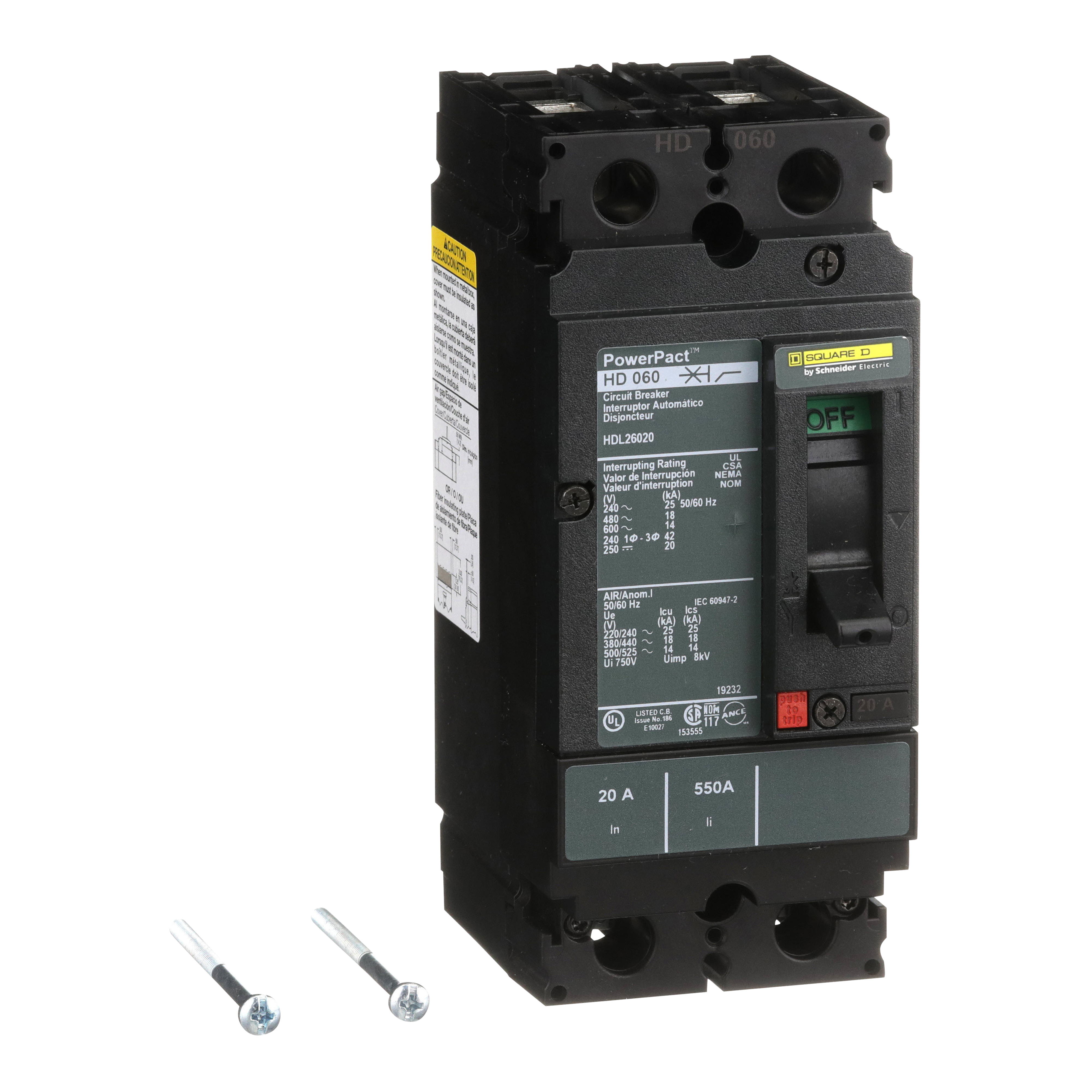

Square D™ PowerPact™ HDL Molded Case Circuit Breaker, 600 VAC/250 VDC, 20 A, 14 to 20 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ HDL Molded Case Circuit Breaker, 600 VAC/250 VDC, 20 A, 14 to 20 kA Interrupt, 2 Poles
SKU428090
MFGR #HDL26020
Your Cost: $754.41/ea
List: Square D HDL26020 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 20A,-13F and 158F (-25 C and +70 C),163 mm,2,20A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,50/60Hz,600 Vac/250 Vdc,70 mm,86 mm,H-Frame,Hold 350A - Trip 750A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D HDL26020 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 20A,-13F and 158F (-25 C and +70 C),163 mm,2,20A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,50/60Hz,600 Vac/250 Vdc,70 mm,86 mm,H-Frame,Hold 350A - Trip 750A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Alternate Catalog Number HDL26020 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HDL26020 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 86 mm L x 70 mm W x 163 mm H EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 398.25 Gross Volume per Pack Metric 6526.12 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.0400 lb Gross Weight per Pack Metric 1.38 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 18.2880 in Height [Metric] 18.2880 cm Item Group 01110 Length 19.8120 in Length [Metric] 19.8120 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421543&lang=en-us Number Of Poles 2 Operating Temperature -13 to 158F (-25 to 70C) °C Returnable Y Series HDL Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Standards UL Listed, IEC, CSA Certified, CE Marked, RoHS Compliant Sub Brand POWERPACT Substitute Product Catalog Number S29371 Temperature Rating -13 to 158 °F Trip Range 350 A Hold, 750 A Type Type HDL UNSPSC 39121601 UPC 11 78590157796 UPC 12 785901577966 Warranty Description Contractual Warranty:18 months Width 16.0020 in Width [Metric] 16.0020 cm Wire Size 14 to 3/0 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION UNIT MOUNT 350 A hold, 750 A trip current 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating Al/Cu wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HDL26020 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDL26020 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 86 mm L x 70 mm W x 163 mm H |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 398.25 |
| Gross Volume per Pack Metric | 6526.12 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.0400 lb |
| Gross Weight per Pack Metric | 1.38 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 18.2880 in |
| Height [Metric] | 18.2880 cm |
| Item Group | 01110 |
| Length | 19.8120 in |
| Length [Metric] | 19.8120 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421543&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Returnable | Y |
| Series | HDL |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Standards | UL Listed, IEC, CSA Certified, CE Marked, RoHS Compliant |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29371 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 350 A Hold, 750 A |
| Type | Type HDL |
| UNSPSC | 39121601 |
| UPC 11 | 78590157796 |
| UPC 12 | 785901577966 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.0020 in |
| Width [Metric] | 16.0020 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
| 350 A hold, 750 A trip current |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating |
| Al/Cu wire |
