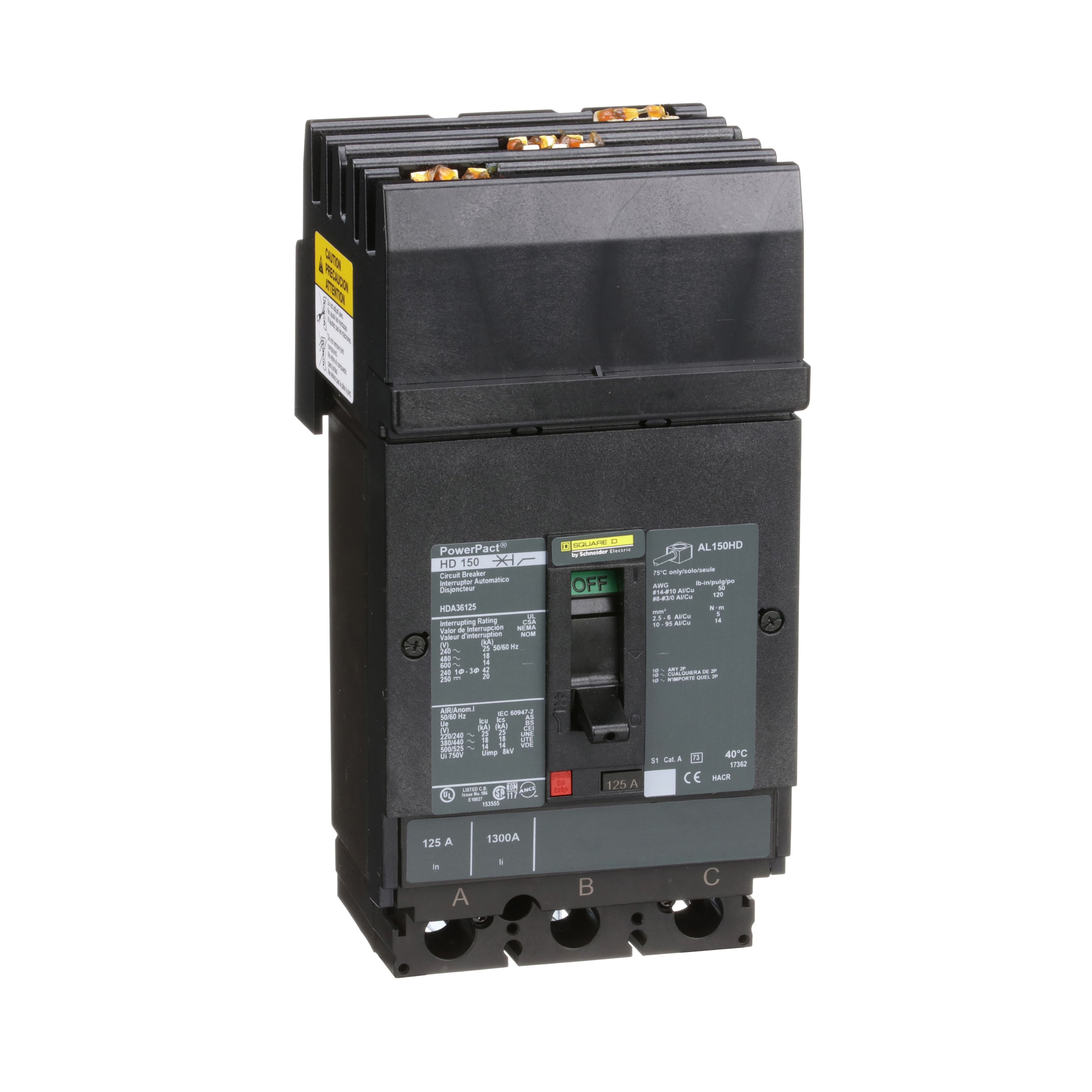

Square D™ PowerPact™ HDA36125 Molded Case Circuit Breaker, 600 VAC/250 VDC, 125 A, 14/18/20/25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ HDA36125 Molded Case Circuit Breaker, 600 VAC/250 VDC, 125 A, 14/18/20/25 kA Interrupt, 3 Poles
SKU232584
MFGR #HDA36125
Call For Price
List: Square D HDA36125 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 125A,-13F and 158F (-25 C and +70 C),125A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,H-Frame,Hold 900A - Trip 1700A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HDA36125 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 125A,-13F and 158F (-25 C and +70 C),125A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,H-Frame,Hold 900A - Trip 1700A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Alternate Catalog Number HDA36125 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HDA36125 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line® Lug Country of Origin CA Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 777.75 Gross Volume per Pack Metric 12744.99 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0248 lb Gross Weight per Pack Metric 2.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.4940 in Height [Metric] 15.4940 cm Item Group 01112 Length 38.1000 in Length [Metric] 38.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421429&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29370 Temperature Rating -13 to 158 °F Trip Range 900 to 1700 A Type Type HDA UNSPSC 39121601 UPC 11 78590141999 UPC 12 785901419990 Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.5900 cm Wire Size 14 to 3/0 AWG Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON I-Line® connection (On end) - lugs (Off end) AC 14 to 3/0 AWG aluminum copper wire 20 kA at 250 VDC, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HDA36125 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDA36125 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line® Lug |
| Country of Origin | CA |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 777.75 |
| Gross Volume per Pack Metric | 12744.99 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0248 lb |
| Gross Weight per Pack Metric | 2.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.4940 in |
| Height [Metric] | 15.4940 cm |
| Item Group | 01112 |
| Length | 38.1000 in |
| Length [Metric] | 38.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421429&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29370 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 900 to 1700 A |
| Type | Type HDA |
| UNSPSC | 39121601 |
| UPC 11 | 78590141999 |
| UPC 12 | 785901419990 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.5900 cm |
| Wire Size | 14 to 3/0 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| I-Line® connection (On end) - lugs (Off end) AC |
| 14 to 3/0 AWG aluminum copper wire |
| 20 kA at 250 VDC, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC interrupt rating |
