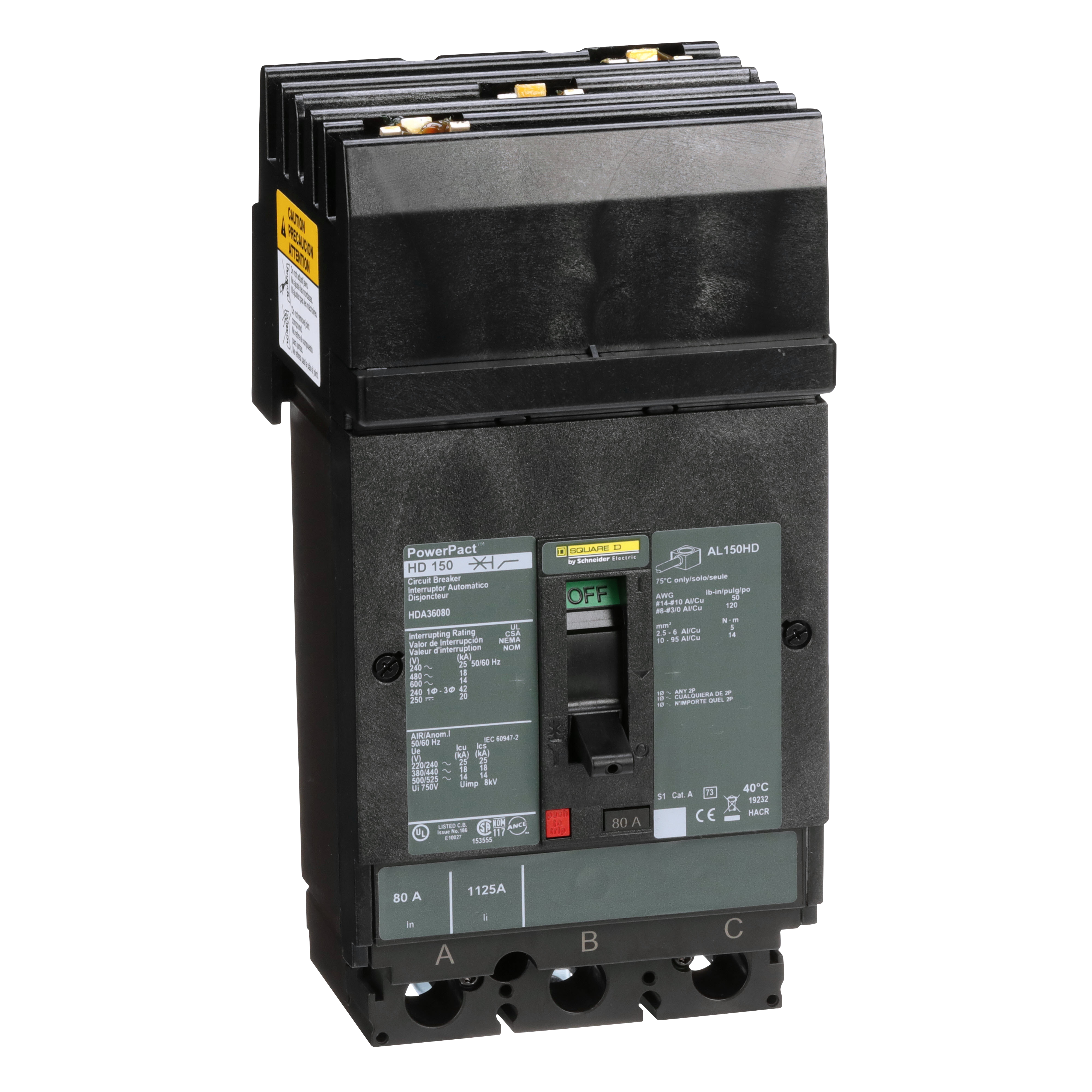

Square D™ PowerPact™ HDA36080 Type HAD Molded Case Circuit Breaker, 600 VAC/250 VDC, 80 A, 14 to 20 kA Interrupt
Molded Case Circuit Breakers
424919
MFG #: HDA36080
Square D™
1170.46000
/ ea
Square D HDA36080 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 80A,-13F and 158F (-25 C and +70 C),25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,80A,H-Frame,Hold 800A - Trip 1450A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=8074945360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Catalog URL - Square_D_HDA260402_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HDA36080_2D+Bottom+View.dwg(Computer~Aided [CAD|BIM] Model URL)
- User Manual URL - 11003_E9IAMWVOKTCDJUNZ.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/ja3DCvAs9M4(Video)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=HDA36080_2D+Left+Side+View.dwg(Tech Drawing URL)
- Spec Sheet URL - 11003_59DUX7VKOQB6EI1Z.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_VRP57W264AQSK31L.pdf(Tech Bulletin URL)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| For reverse fed applications |
| 25 kA 240 VAC 18 kA 480 VAC breaking capacity |
| Complete with non-interchangeable trip |
| Provides overload and short circuit protection |
| For use with I-line Panelboards and Switchboards |
