Square D™

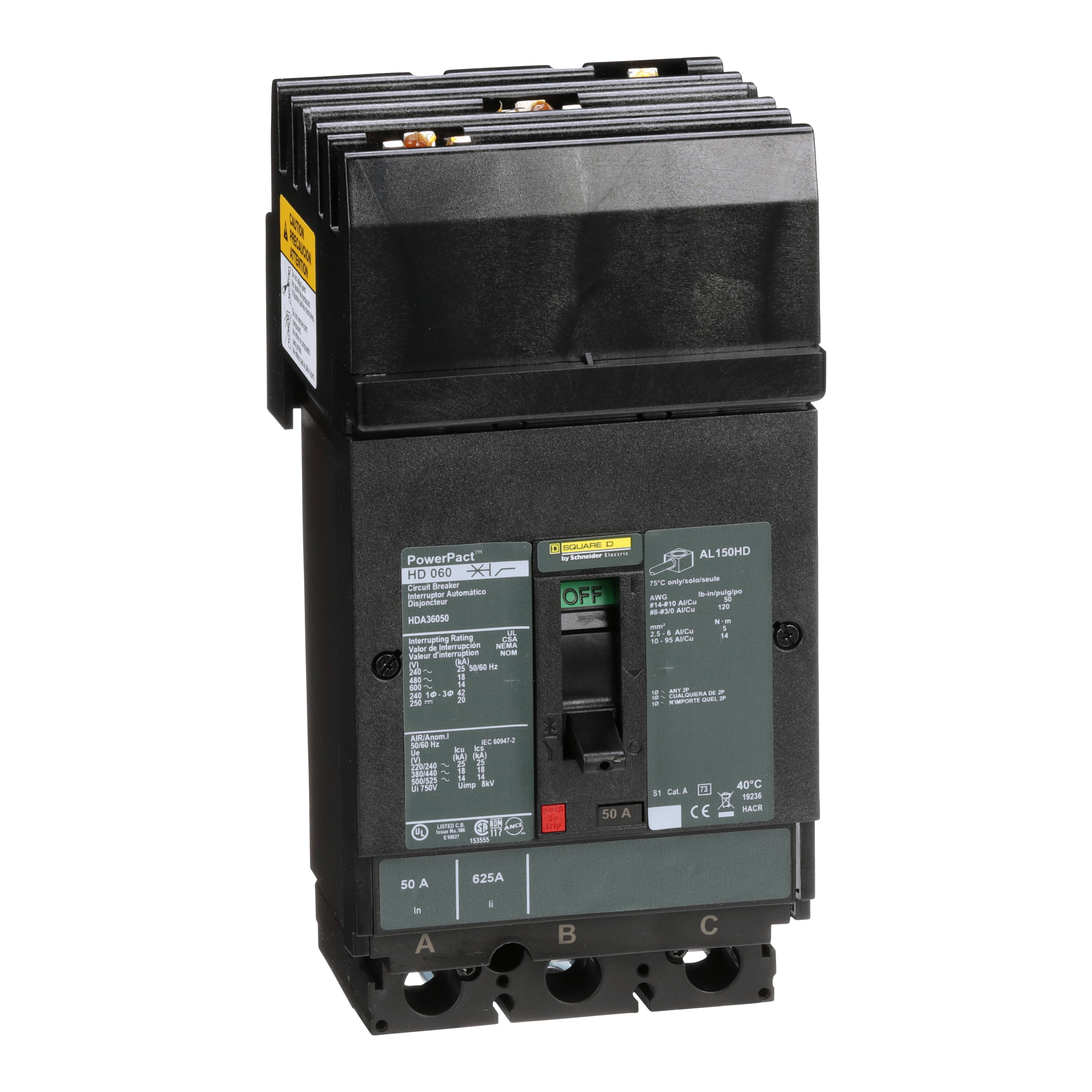

Square D™ PowerPact™ HDA36050 Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 14/18/20/25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ HDA36050 Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 14/18/20/25 kA Interrupt, 3 Poles
SKU413650
MFGR #HDA36050
Your Cost: $716.38/ea
List: Square D HDA36050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,50A,600 Vac/250 Vdc,H-Frame,Hold 400A - Trip 850A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Square D HDA36050 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 50A,-13F and 158F (-25 C and +70 C),25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,50A,600 Vac/250 Vdc,H-Frame,Hold 400A - Trip 850A,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
Alternate Catalog Number HDA36050 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HDA36050 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Country of Origin US Currency USD EU RoHS Indicator Y Frame H-FRAME Frequency Rating 50/60 Hz Gross Volume Per Pack 759.90 Gross Volume per Pack Metric 12452.48 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.4700 lb Gross Weight per Pack Metric 2.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.7320 in Height [Metric] 14.8000 cm Item Group 01112 Length 38.1000 in Length [Metric] 38.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421379&lang=en-us Number Of Poles 3 Operating Temperature -13 to 158F (-25 to 70C) °C Phase ABC Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29386 Trip Range HOLD: 400A - TRIP: 850A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590153992 UPC 12 785901539926 Warranty Description Contractual Warranty:18 months Width 21.3360 in Width [Metric] 21.4000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 50 A Interrupt Rating 25KA240VAC - 18KA480VAC - 14KA600VAC - 20KA250VDC Trip Type Thermal-magnetic Voltage Rating 600//250 VAC//VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HDA36050 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDA36050 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Frame | H-FRAME |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 759.90 |
| Gross Volume per Pack Metric | 12452.48 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.4700 lb |
| Gross Weight per Pack Metric | 2.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.7320 in |
| Height [Metric] | 14.8000 cm |
| Item Group | 01112 |
| Length | 38.1000 in |
| Length [Metric] | 38.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421379&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | ABC |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Trip Range | HOLD: 400A - TRIP: 850A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590153992 |
| UPC 12 | 785901539926 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.3360 in |
| Width [Metric] | 21.4000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 50 A |
| Interrupt Rating | 25KA240VAC - 18KA480VAC - 14KA600VAC - 20KA250VDC |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 600//250 VAC//VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
