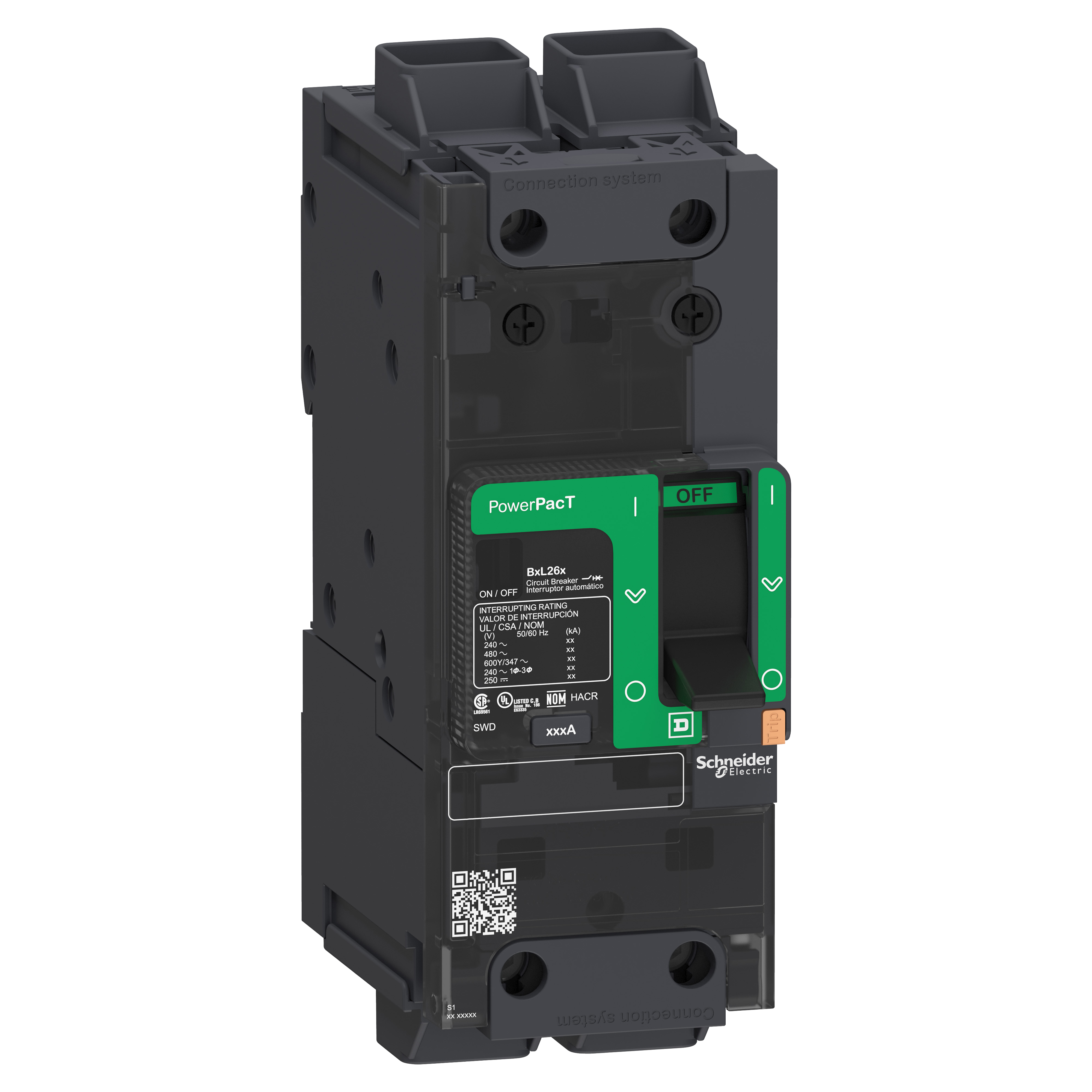

Square D™ PowerPact™ EverLink BGL26070 Molded Case Circuit Breaker, 600Y/347 VAC, 70 A, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ EverLink BGL26070 Molded Case Circuit Breaker, 600Y/347 VAC, 70 A, 2 Poles, Thermal Magnetic Trip
SKUPDW~12314941
MFGR #BGL26070
Your Cost: $753.86/ea
List: Square D™ PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 70 A, 50/60 Hz, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 640 to 960 A Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 14 to 3/0/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 2.12 in W x 4.01 in D, Gray
Square D™ PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 70 A, 50/60 Hz, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 640 to 960 A Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 14 to 3/0/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 2.12 in W x 4.01 in D, Gray
Actuator HANDLE AND PUSH-TO-TRIP BUTTON Actuator Type Toggle Alternate Catalog Number BGL26070 Application For providing overload and short circuit protection ARRA Compliant N Auxiliary Contacts AVAILABLE SEPARATELY Buy American Compliant N Catalog Number BGL26070 Color Gray Connection LINE/LOAD: LUG TERMINAL Connection Type Line/Load Lug Country of Origin US Dimensions 5.39 in H x 2.12 in W x 4.01 in D Enclosure MOLDED CASE Enclosure Type NEMA AB4/IP40 EU RoHS Indicator Y Frame B Frequency Rating 50/60 Hz Gross Weight Per Pack 1 lb Height 5.39 in Item Group 01131 Length 2.12 Load Rating 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590410&lang=en-us Mounting Type DIN Rail/Threaded Number Of Poles 2 Operating Temperature -25 to 70 °C Phase 1 pH Returnable N Standard UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING Standards ARRA CompliantBuy American Act CompliantCSA C22.2 No 5CE CertifiedCCC CertifiedEAC CertifiedEN/IEC 60947-2, 60947-5-1GB 14048.2NOM CertifiedUL 489 Sub Brand SQUARE D Temperature Rating -13 to 158 °F Trip Range 640 to 960 A Type POWERPACT B-FRAME UNSPSC 39121601 UPC 11 78590163596 UPC 12 785901635963 Width 2.13 in Wire Size 14 to 3/0 AWG, 6 to 2/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 70 A Interrupt Rating 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION BUILT-IN DIN RAIL - EVERLINK CREEP-COMPENSATING LUGS - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms The PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | HANDLE AND PUSH-TO-TRIP BUTTON |
| Actuator Type | Toggle |
| Alternate Catalog Number | BGL26070 |
| Application | For providing overload and short circuit protection |
| ARRA Compliant | N |
| Auxiliary Contacts | AVAILABLE SEPARATELY |
| Buy American Compliant | N |
| Catalog Number | BGL26070 |
| Color | Gray |
| Connection | LINE/LOAD: LUG TERMINAL |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Dimensions | 5.39 in H x 2.12 in W x 4.01 in D |
| Enclosure | MOLDED CASE |
| Enclosure Type | NEMA AB4/IP40 |
| EU RoHS Indicator | Y |
| Frame | B |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1 lb |
| Height | 5.39 in |
| Item Group | 01131 |
| Length | 2.12 |
| Load Rating | 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590410&lang=en-us |
| Mounting Type | DIN Rail/Threaded |
| Number Of Poles | 2 |
| Operating Temperature | -25 to 70 °C |
| Phase | 1 pH |
| Returnable | N |
| Standard | UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING |
| Standards | ARRA CompliantBuy American Act CompliantCSA C22.2 No 5CE CertifiedCCC CertifiedEAC CertifiedEN/IEC 60947-2, 60947-5-1GB 14048.2NOM CertifiedUL 489 |
| Sub Brand | SQUARE D |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 640 to 960 A |
| Type | POWERPACT B-FRAME |
| UNSPSC | 39121601 |
| UPC 11 | 78590163596 |
| UPC 12 | 785901635963 |
| Width | 2.13 in |
| Wire Size | 14 to 3/0 AWG, 6 to 2/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 70 A |
| Interrupt Rating | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600Y/347 VAC |
| FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION |
| BUILT-IN DIN RAIL - EVERLINK CREEP-COMPENSATING LUGS - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS |
| Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms |
| The PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards |
| B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products |
| PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits |
| The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product |
| Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications |
