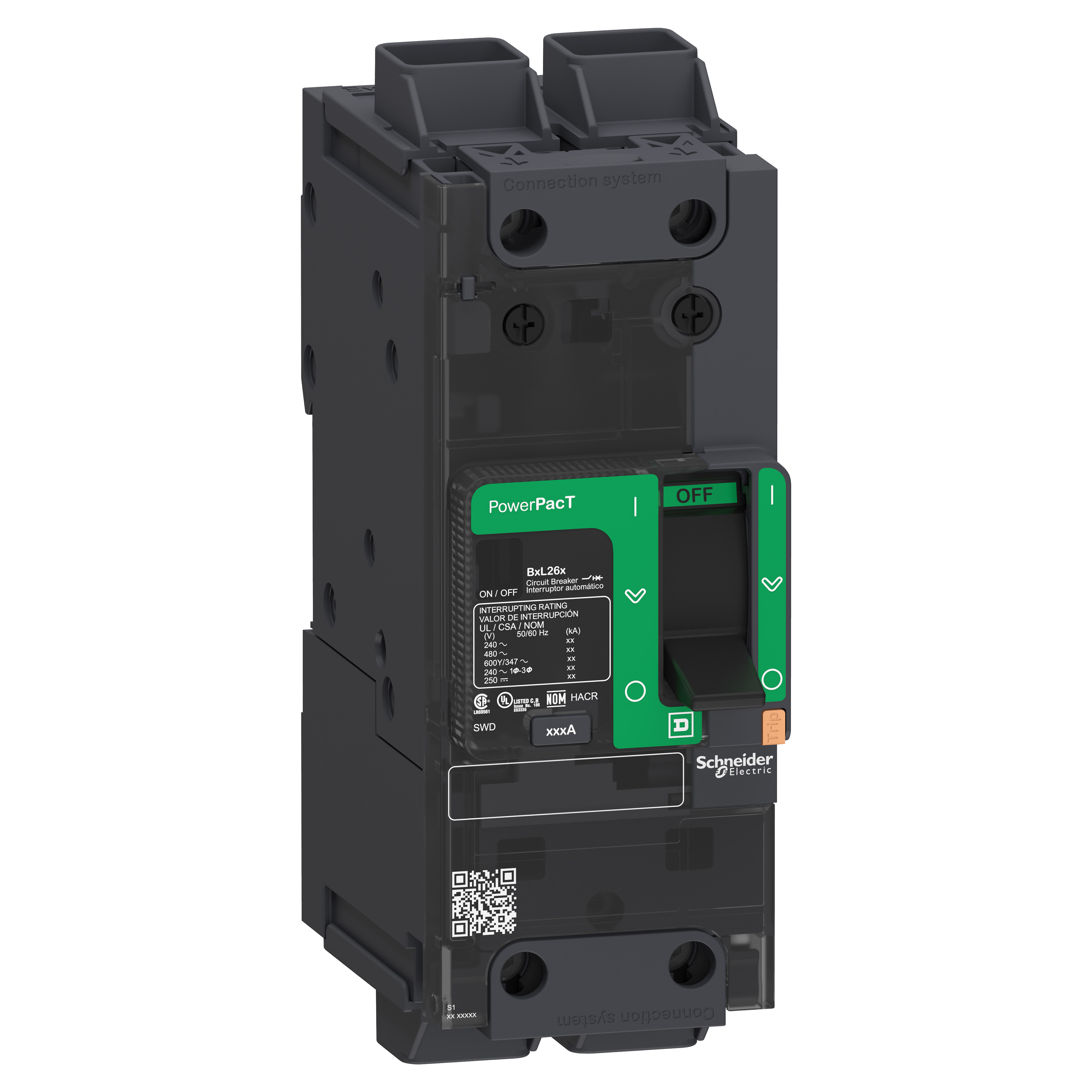

Square D™ PowerPact™ EverLink BGL26035 Molded Case Circuit Breaker, 600Y/347 VAC, 35 A, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ EverLink BGL26035 Molded Case Circuit Breaker, 600Y/347 VAC, 35 A, 2 Poles, Thermal Magnetic Trip
SKUPDW~12314983
MFGR #BGL26035
Your Cost: $729.97/ea
List: Square D™ PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 35 A, 50/60 Hz, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 14 to 3/0/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 2.12 in W x 4.01 in D, Gray
Square D™ PowerPact™ EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 35 A, 50/60 Hz, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 14 to 3/0/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 2.12 in W x 4.01 in D, Gray
Actuator HANDLE AND PUSH-TO-TRIP BUTTON Alternate Catalog Number BGL26035 Application For providing overload and short circuit protection ARRA Compliant N Auxiliary Contacts AVAILABLE SEPARATELY Hz Buy American Compliant N Catalog Number BGL26035 Connection LINE/LOAD: LUG TERMINAL Country of Origin US Currency USD Enclosure MOLDED CASE EU RoHS Indicator Y Frame B-FRAME Frequency Rating 35 Gross Weight Per Pack 6.8039 lb Gross Weight per Pack Metric 680.39 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 5.4000 in Height [Metric] 5.4000 cm Item Group 01131 Length 13.7000 in Length [Metric] 13.7000 cm Load Rating 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590400&lang=en-us Number Of Poles 2 Operating Temperature -25 to 70 °C Reset Type MANUAL RESET Returnable N Standard UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING Standards ARRABuy American Act CompliantCSA C22.2 No 5CECCCEACEN/IEC 60947-2EN/IEC 60947-5-1GB 14048.2NOM CertifiedUL 489PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Sub Brand SQUARE D Trip Range 400 AMP (HOLD)- 600 AMP (TRIP) Type POWERPACT B-FRAME UNSPSC 39121601 UPC 11 78590107309 UPC 12 785901073093 Width 10.1900 in Width [Metric] 10.1900 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 35 A Interrupt Rating 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC deg F Trip Type Thermal-magnetic Voltage Rating 347/600 VAC FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION BUILT-IN DIN RAIL - EVERLINK CREEP-COMPENSATING LUGS - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms The PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | HANDLE AND PUSH-TO-TRIP BUTTON |
| Alternate Catalog Number | BGL26035 |
| Application | For providing overload and short circuit protection |
| ARRA Compliant | N |
| Auxiliary Contacts | AVAILABLE SEPARATELY Hz |
| Buy American Compliant | N |
| Catalog Number | BGL26035 |
| Connection | LINE/LOAD: LUG TERMINAL |
| Country of Origin | US |
| Currency | USD |
| Enclosure | MOLDED CASE |
| EU RoHS Indicator | Y |
| Frame | B-FRAME |
| Frequency Rating | 35 |
| Gross Weight Per Pack | 6.8039 lb |
| Gross Weight per Pack Metric | 680.39 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.4000 in |
| Height [Metric] | 5.4000 cm |
| Item Group | 01131 |
| Length | 13.7000 in |
| Length [Metric] | 13.7000 cm |
| Load Rating | 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590400&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25 to 70 °C |
| Reset Type | MANUAL RESET |
| Returnable | N |
| Standard | UL 489 - CSA C22.2 NO. 5 - NMX J-266 - IEC/EN 60947-2 - IEC/EN60947-5-1 - GB 14048-2 - NOM - CE MARKING |
| Standards | ARRABuy American Act CompliantCSA C22.2 No 5CECCCEACEN/IEC 60947-2EN/IEC 60947-5-1GB 14048.2NOM CertifiedUL 489PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Sub Brand | SQUARE D |
| Trip Range | 400 AMP (HOLD)- 600 AMP (TRIP) |
| Type | POWERPACT B-FRAME |
| UNSPSC | 39121601 |
| UPC 11 | 78590107309 |
| UPC 12 | 785901073093 |
| Width | 10.1900 in |
| Width [Metric] | 10.1900 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 35 A |
| Interrupt Rating | 65KA AT 240VAC - 35KA AT 480VAC - 18KA AT 600Y/347VAC deg F |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 347/600 VAC |
| FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION |
| BUILT-IN DIN RAIL - EVERLINK CREEP-COMPENSATING LUGS - FIELD-INSTALLABLE ACCESSORIES - FIELD INSTALLABLE LUGS |
| Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms |
| The PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards |
| B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products |
| PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits |
| The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product |
| Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications |
