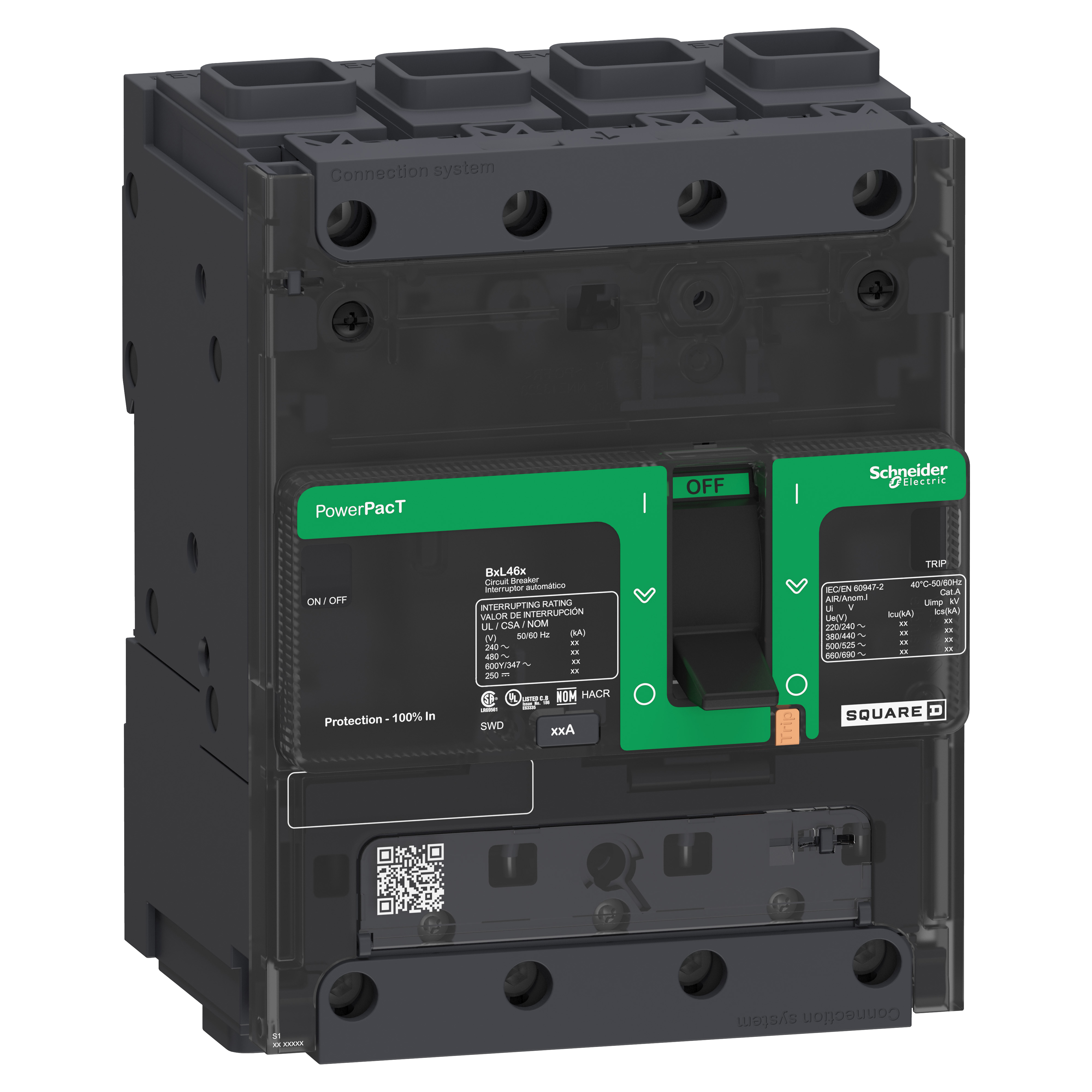

Square D™ PowerPact® BJF46030 Type BJF Molded Case Circuit Breaker, 600Y/347 VAC, 30 A, 25 kA Interrupt, 4 Poles, Thermal Magnetic/Electronic LI Trip
Molded Case Circuit Breakers
PDW~12314767
MFG #: BJF46030
Square D™
0.00000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=14255486360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9KJEVN7GRBCHIZ3Y.pdf(Brochure URL)
- Brochure URL - 11003_HEG1U8LF92ZOSQD5.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_BEZU6PD4R8VG9I35.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_NVELWGX9H1FPMC65.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_G9RF86BP7DTEYCQK.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_N2PY5DERC3FBGHVK.pdf(Tech Drawing URL)
- Applications
- Features
| Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications |
| PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards |
| One product can be used and sourced globally |
| B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products from Square D™ by Schneider Electric |
| PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits |
| Offered in unit mount construction only with a 100% protected neutral located in the far left pole |
| B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product |
| Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications |
| B-frame circuit breakers with thermal magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole |
| 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC interrupt rating |
| Screw plate/clip on 35 mm symmetrical DIN-rail mount |
| Screw plate/clip on 35 mm symmetrical DIN-rail mount |
