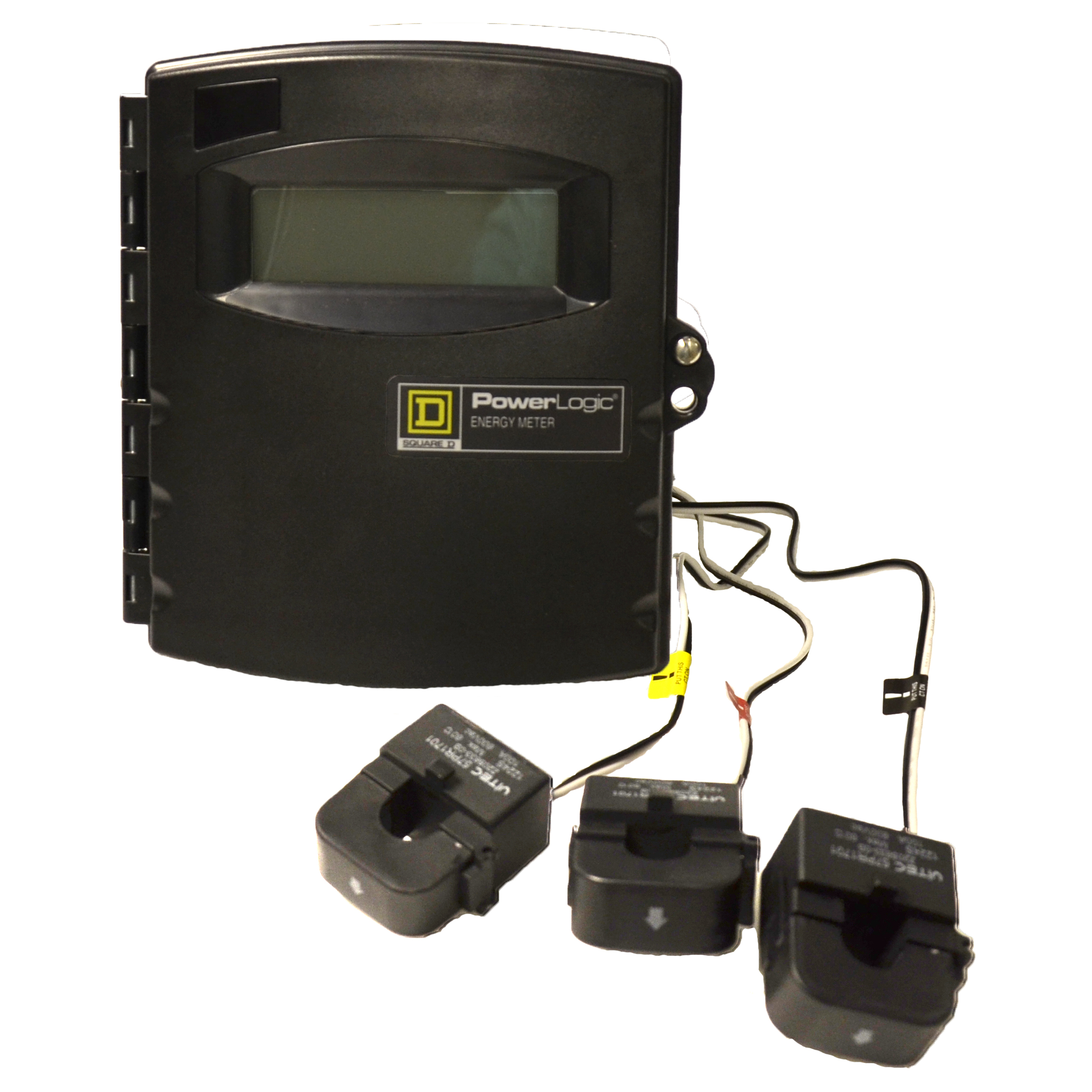

Square D™ PowerLogic® EME3083 3-Circuit Extended Range Energy Meter, 120/240 to 480Y/277 VAC, 800 A, 50/60 Hz
Custom_Product_Images_Illustration
Square D™
Square D™ PowerLogic® EME3083 3-Circuit Extended Range Energy Meter, 120/240 to 480Y/277 VAC, 800 A, 50/60 Hz
SKU316543
MFGR #EME3083
Your Cost: $1,217.91/ea
List: Schneider Electric EME3083 ENERGY METER EXT RANGE 800A 2.45X2.89ID
Schneider Electric EME3083 ENERGY METER EXT RANGE 800A 2.45X2.89ID
Alternate Catalog Number EME3083 Application ENERGY MONITORING ARRA Compliant N Buy American Compliant N Catalog Number EME3083 Country of Origin US Currency USD Dimensions 8.3 in H x 7.6 in W x 3 in D Display Type LCD/Backlit with Green LEDs EU RoHS Indicator Y Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 2.72 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9028300000 Height 22.2250 in Height [Metric] 20.0030 cm Indicator BACKLIT LCD,ENERGY CONSUMPTION-POWER-POWER MAXIMUM)-REACTIVE POWER-POWER FACTOR-VOLTAGE-CURRENT,PHASE LOSS NC FUNCTION Insulation , 320-320 V Item Group 09779 Length 2.7220 in Length [Metric] 30.4800 cm Output 1 PULSE-1 ALARM OUTPUT,24 V AC/DC@100 MA Phase 1 or 3 Returnable N Size 193 MM,211 MM in Standard ANSI C12.1,UL UL 3111-1-CUL Standards UL ListedcUL Listed Sub Brand PowerLogic ENERGY METER Type 3-Circuit Extended Range UNSPSC 39121106 UPC 11 78590100037 UPC 12 785901000372 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 22.2250 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 A Frequency Rating 50/60 Hz Voltage Rating 120/240 to 480Y/277 VAC ENERGY MONITORING 1280 HZ High-resolution back-lit liquid crystal display True reading display High accuracy, meets ANSI C12.1 metering accuracy standards KW demand metering Simple, fast installation Easy integration to PowerLogic or control/data acquisition systems Automatic meter reading, optional EMCB provides serial Modbus® RS-485 RTU communications for connecting the energy meter to a remote monitoring system 2.45 x 2.89 in ID Physical 1.2 x 3.8 in viewing area, 160 segments 600 VAC CT case isolation, 1280 Hz sample rate, 2500 VAC internal isolation, 0 to 50 deg C (<95% RH, non-condensing) operating temperature range, 20 ft meter/CT distance, line powered 120-277 VAC, line-to-neutral power source, services provided are 1-phase 2W, 1-phase 3W and 3-phase 4W up to 480Y/277V, pulse output is N.O, Opto-FET, 100 mA at 24 VAC/DC, pulse rate is 0.10, 0.25, 0.50 or 1 kWh per pulse, 4 wire wye connection 1/3-phase plus neutral
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Alternate Catalog Number | EME3083 |
| Application | ENERGY MONITORING |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EME3083 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.3 in H x 7.6 in W x 3 in D |
| Display Type | LCD/Backlit with Green LEDs |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 2.72 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9028300000 |
| Height | 22.2250 in |
| Height [Metric] | 20.0030 cm |
| Indicator | BACKLIT LCD,ENERGY CONSUMPTION-POWER-POWER MAXIMUM)-REACTIVE POWER-POWER FACTOR-VOLTAGE-CURRENT,PHASE LOSS NC FUNCTION |
| Insulation | , 320-320 V |
| Item Group | 09779 |
| Length | 2.7220 in |
| Length [Metric] | 30.4800 cm |
| Output | 1 PULSE-1 ALARM OUTPUT,24 V AC/DC@100 MA |
| Phase | 1 or 3 |
| Returnable | N |
| Size | 193 MM,211 MM in |
| Standard | ANSI C12.1,UL UL 3111-1-CUL |
| Standards | UL ListedcUL Listed |
| Sub Brand | PowerLogic ENERGY METER |
| Type | 3-Circuit Extended Range |
| UNSPSC | 39121106 |
| UPC 11 | 78590100037 |
| UPC 12 | 785901000372 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 22.2250 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 A |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 120/240 to 480Y/277 VAC |
| ENERGY MONITORING |
| 1280 HZ |
| High-resolution back-lit liquid crystal display |
| True reading display |
| High accuracy, meets ANSI C12.1 metering accuracy standards |
| KW demand metering |
| Simple, fast installation |
| Easy integration to PowerLogic or control/data acquisition systems |
| Automatic meter reading, optional EMCB provides serial Modbus® RS-485 RTU communications for connecting the energy meter to a remote monitoring system |
| 2.45 x 2.89 in ID |
| Physical 1.2 x 3.8 in viewing area, 160 segments |
| 600 VAC CT case isolation, 1280 Hz sample rate, 2500 VAC internal isolation, 0 to 50 deg C (<95% RH, non-condensing) operating temperature range, 20 ft meter/CT distance, line powered 120-277 VAC, line-to-neutral power source, services provided are 1-phase 2W, 1-phase 3W and 3-phase 4W up to 480Y/277V, pulse output is N.O, Opto-FET, 100 mA at 24 VAC/DC, pulse rate is 0.10, 0.25, 0.50 or 1 kWh per pulse, 4 wire wye connection |
| 1/3-phase plus neutral |
