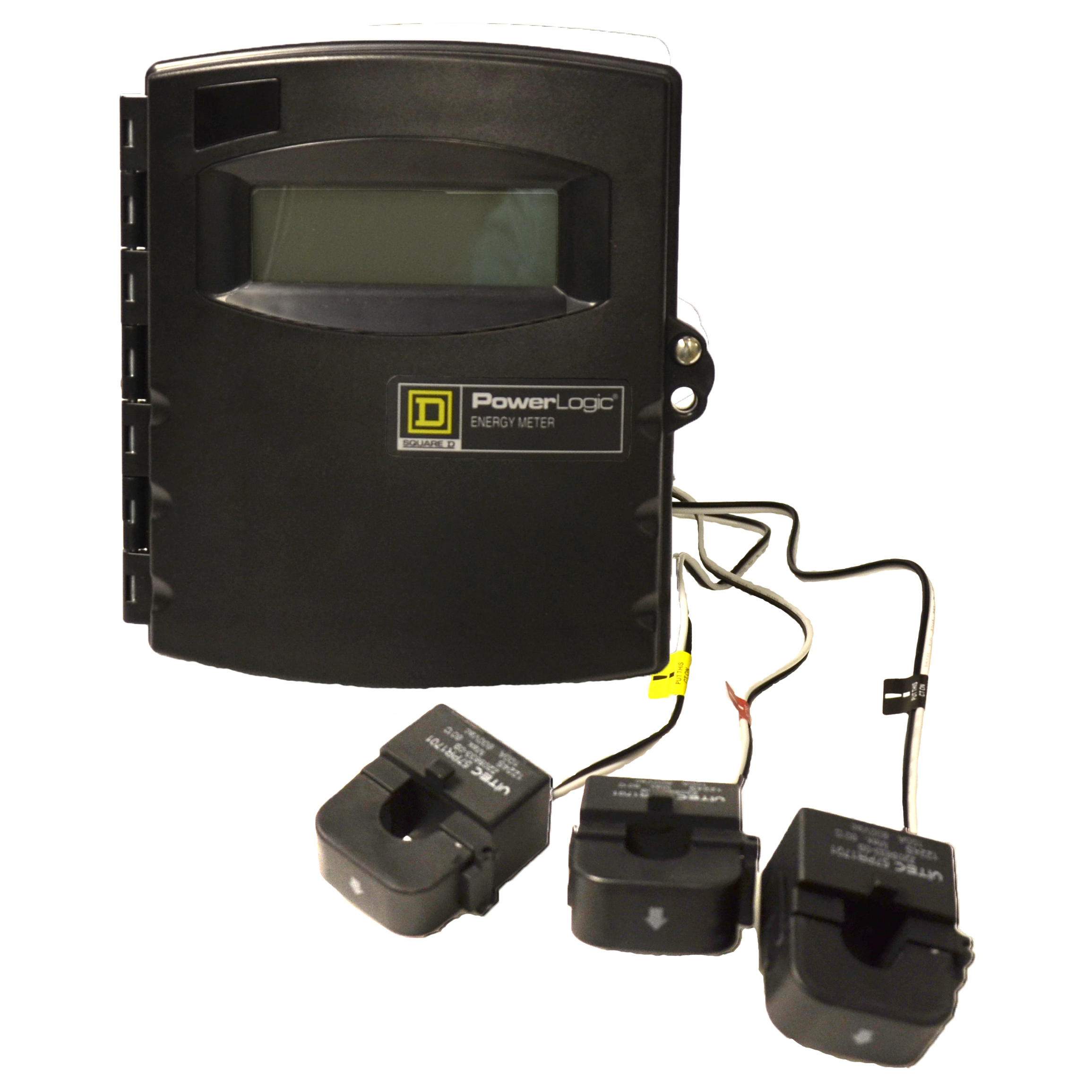

Square D™ PowerLogic® EME3021 3-Circuit Extended Range Energy Meter, 120/240 to 480Y/277 VAC, 200 A, 50/60 Hz
Custom_Product_Images_Illustration
Square D™ PowerLogic® EME3021 3-Circuit Extended Range Energy Meter, 120/240 to 480Y/277 VAC, 200 A, 50/60 Hz
SKU348316
MFGR #EME3021
Your Cost: $983.63/ea
List: Schneider Electric EME3021 ENERGY METER EXT RANGE 200A 90X1.90ID
Schneider Electric EME3021 ENERGY METER EXT RANGE 200A 90X1.90ID
Alternate Catalog Number EME3021 Application ENERGY MONITORING ARRA Compliant N Buy American Compliant N Catalog Number EME3021 Country of Origin US Currency USD Dimensions 8.3 in H x 7.6 in W x 3 in D Display Type LCD Enclosure Type NEMA 1 EU RoHS Indicator Y Gross Volume Per Pack 0.06 Gross Volume per Pack Metric 1.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 2.72 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9028300000 Height 22.2250 in Height [Metric] 20.0030 cm Indicator BACKLIT LCD,ENERGY CONSUMPTION-POWER-POWER MAXIMUM)-REACTIVE POWER-POWER FACTOR-VOLTAGE-CURRENT,PHASE LOSS NC FUNCTION Insulation , 320-320 V Item Group 09779 Length 2.7220 in Length [Metric] 30.4800 cm Output 1 PULSE-1 ALARM OUTPUT,24 V AC/DC@100 MA Phase 3 Returnable N Size 193 MM,211 MM in Standard ANSI C12.1,UL UL 3111-1-CUL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Sub Brand POWERLOGIC ENERGY METER Type Extended UNSPSC 39121106 UPC 11 78590100036 UPC 12 785901000365 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 22.2250 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Frequency Rating 50/60 Hz Voltage Rating 120/240 to 480Y/277 VAC ENERGY MONITORING 1280 HZ High-resolution back-lit liquid crystal display True reading display High accuracy, meets ANSI C12.1 metering accuracy standards KW demand metering Simple, fast installation Easy integration to PowerLogic or control/data acquisition systems Automatic meter reading, optional EMCB provides serial Modbus® RS-485 RTU communications for connecting the energy meter to a remote monitoring system 0.9 x 1.9 in ID Physical 1.2 in x 3.8 in viewing area, 160 segments 600 VAC CT case isolation, 1280 Hz sample rate, 2500 VAC internal isolation, 0 to 50 deg C (<95% RH, non-condensing) operating temperature range, 20 ft meter/CT distance, line powered 120-277 VAC, line-to-neutral power source, services provided are 1-phase 2W, 1-phase 3W and 3-phase 4W up to 480Y/277V, pulse output is N.O, Opto-FET, 100 mA at 24 VAC/DC, pulse rate is 0.10, 0.25, 0.50 or 1 kWh per pulse, 4 wire wye connection 1/3-phase plus neutral
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Alternate Catalog Number | EME3021 |
| Application | ENERGY MONITORING |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EME3021 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.3 in H x 7.6 in W x 3 in D |
| Display Type | LCD |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 0.06 |
| Gross Volume per Pack Metric | 1.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 2.72 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9028300000 |
| Height | 22.2250 in |
| Height [Metric] | 20.0030 cm |
| Indicator | BACKLIT LCD,ENERGY CONSUMPTION-POWER-POWER MAXIMUM)-REACTIVE POWER-POWER FACTOR-VOLTAGE-CURRENT,PHASE LOSS NC FUNCTION |
| Insulation | , 320-320 V |
| Item Group | 09779 |
| Length | 2.7220 in |
| Length [Metric] | 30.4800 cm |
| Output | 1 PULSE-1 ALARM OUTPUT,24 V AC/DC@100 MA |
| Phase | 3 |
| Returnable | N |
| Size | 193 MM,211 MM in |
| Standard | ANSI C12.1,UL UL 3111-1-CUL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Sub Brand | POWERLOGIC ENERGY METER |
| Type | Extended |
| UNSPSC | 39121106 |
| UPC 11 | 78590100036 |
| UPC 12 | 785901000365 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 22.2250 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 120/240 to 480Y/277 VAC |
| ENERGY MONITORING |
| 1280 HZ |
| High-resolution back-lit liquid crystal display |
| True reading display |
| High accuracy, meets ANSI C12.1 metering accuracy standards |
| KW demand metering |
| Simple, fast installation |
| Easy integration to PowerLogic or control/data acquisition systems |
| Automatic meter reading, optional EMCB provides serial Modbus® RS-485 RTU communications for connecting the energy meter to a remote monitoring system |
| 0.9 x 1.9 in ID |
| Physical 1.2 in x 3.8 in viewing area, 160 segments |
| 600 VAC CT case isolation, 1280 Hz sample rate, 2500 VAC internal isolation, 0 to 50 deg C (<95% RH, non-condensing) operating temperature range, 20 ft meter/CT distance, line powered 120-277 VAC, line-to-neutral power source, services provided are 1-phase 2W, 1-phase 3W and 3-phase 4W up to 480Y/277V, pulse output is N.O, Opto-FET, 100 mA at 24 VAC/DC, pulse rate is 0.10, 0.25, 0.50 or 1 kWh per pulse, 4 wire wye connection |
| 1/3-phase plus neutral |
