Square D™

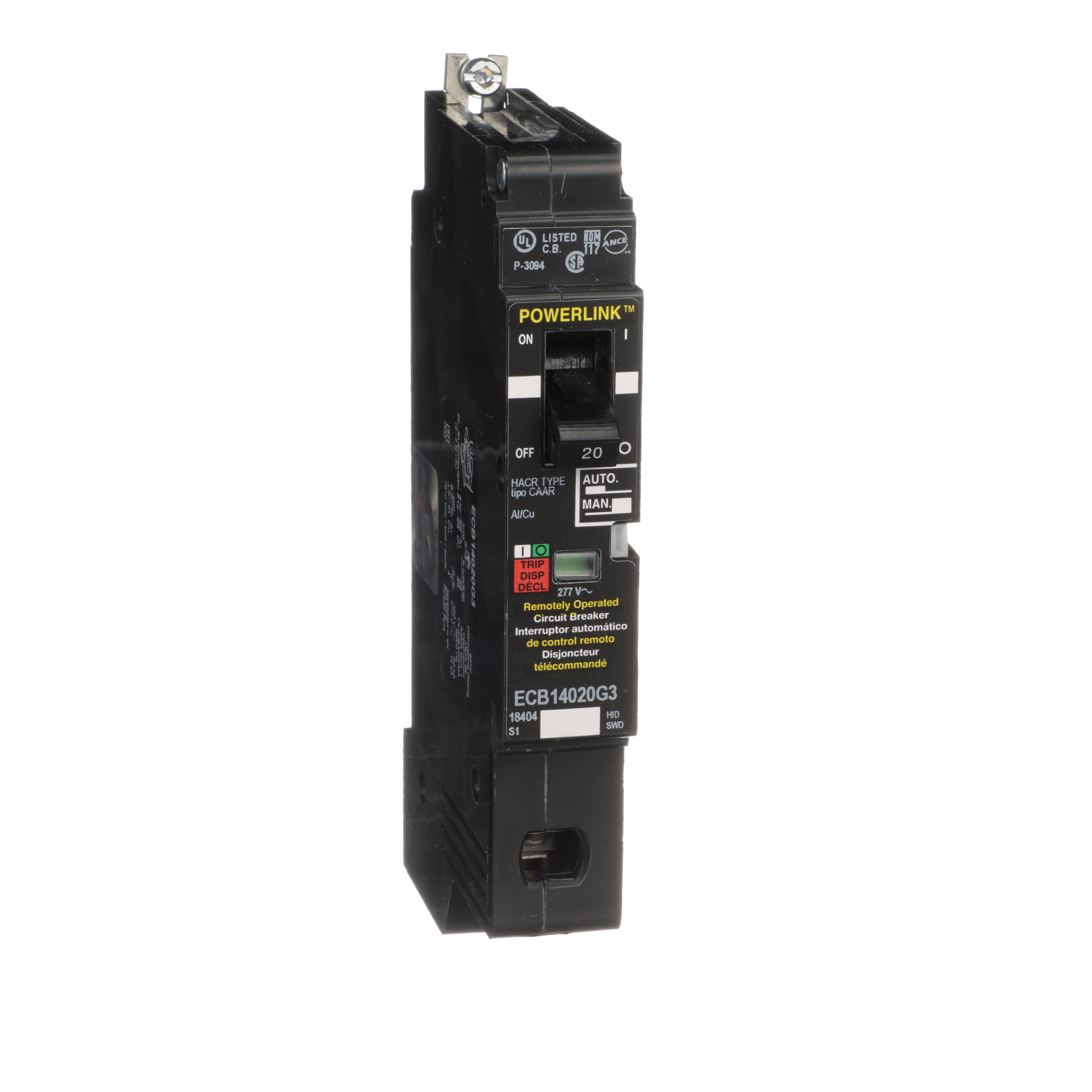

Square D™ POWERLINK™ ECB Molded Case Circuit Breaker, 120/277 VAC, 20 A, 14 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ POWERLINK™ ECB Molded Case Circuit Breaker, 120/277 VAC, 20 A, 14 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU95451
MFGR #ECB14020G3
Your Cost: $237.00/ea
Square D ECB14020G3 MOLDED CASE CIRCUIT BREAKER 480V 20AMP,20 A,277 V AC, 120 V AC,G3,circuit breaker,remotely operated
Square D ECB14020G3 MOLDED CASE CIRCUIT BREAKER 480V 20AMP,20 A,277 V AC, 120 V AC,G3,circuit breaker,remotely operated
Alternate Catalog Number ECB14020G3 Application HACR rated;Switching Duty rated;HID rated ARRA Compliant N Buy American Compliant N Catalog Number ECB14020G3 Connection AWG 12...AWG 8 ALUMINIUM-AWG 10...AWG 8 COPPER,BOLTED CONNECTION Connection Type Lug Country of Origin US Currency USD EU RoHS Indicator Y Frame C Gross Weight Per Pack 1.3500 lb Gross Weight per Pack Metric 612.35 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 4.5720 in Height [Metric] 4.0640 cm Item Group 09663 Length 23.8760 in Length [Metric] 23.6220 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253625&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Returnable Y Standard UL LISTED-CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedECCN EAR99PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Sub Brand G3 Temperature Rating 104 °F Trip Range 20 A Type CIRCUIT BREAKER,MOTOR FOR CIRCUIT-BREAKER 24 V DC UNSPSC 39121616 UPC 11 78590100097 UPC 12 785901000976 Warranty Description Contractual Warranty:18 months Width 16.0020 in Width [Metric] 16.0020 cm Wire Size 12 to 8 AWG, 10 to 8 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 14 kA Trip Type Standard LI/Thermal Magnetic Voltage Rating 480Y/277 VAC HACR rated;Switching Duty rated;HID rated BOLT-ON 65 kA at 120 VAC, 14 kA at 277 VAC interrupt rating Remotely operated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ECB14020G3 |
| Application | HACR rated;Switching Duty rated;HID rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ECB14020G3 |
| Connection | AWG 12...AWG 8 ALUMINIUM-AWG 10...AWG 8 COPPER,BOLTED CONNECTION |
| Connection Type | Lug |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Frame | C |
| Gross Weight Per Pack | 1.3500 lb |
| Gross Weight per Pack Metric | 612.35 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.5720 in |
| Height [Metric] | 4.0640 cm |
| Item Group | 09663 |
| Length | 23.8760 in |
| Length [Metric] | 23.6220 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253625&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedECCN EAR99PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Sub Brand | G3 |
| Temperature Rating | 104 °F |
| Trip Range | 20 A |
| Type | CIRCUIT BREAKER,MOTOR FOR CIRCUIT-BREAKER 24 V DC |
| UNSPSC | 39121616 |
| UPC 11 | 78590100097 |
| UPC 12 | 785901000976 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.0020 in |
| Width [Metric] | 16.0020 cm |
| Wire Size | 12 to 8 AWG, 10 to 8 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 14 kA |
| Trip Type | Standard LI/Thermal Magnetic |
| Voltage Rating | 480Y/277 VAC |
| HACR rated;Switching Duty rated;HID rated |
| BOLT-ON |
| 65 kA at 120 VAC, 14 kA at 277 VAC interrupt rating |
| Remotely operated |
