Square D™

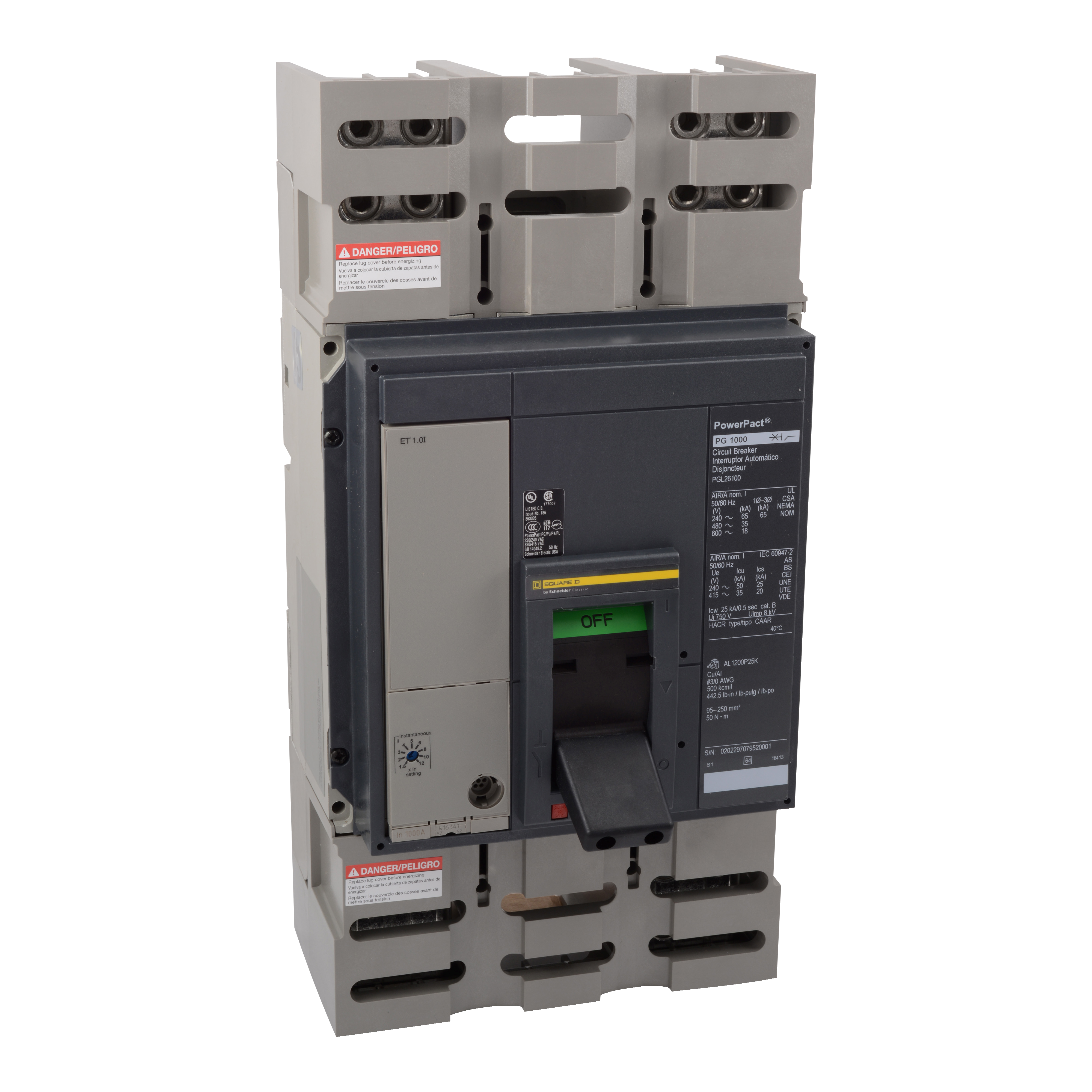

Square D™ PLL34120 Molded Case Circuit Breaker, 480 VAC, 1200 A, 125 kA at 240 VAC, 100 kA at 480 VAC, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Basic ET 1.0 I LI Trip
Custom_Product_Images_Illustration
Square D™
Square D™ PLL34120 Molded Case Circuit Breaker, 480 VAC, 1200 A, 125 kA at 240 VAC, 100 kA at 480 VAC, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Basic ET 1.0 I LI Trip
SKUPDW~7521002
MFGR #PLL34120
Your Cost: $15,136.53/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, 480 VAC, 1200 A, 50/60 Hz, 125 kA at 240 VAC, 100 kA at 480 VAC, 25 kA at 600 VAC Interrupt, P Frame, Electronic Basic ET 1.0 I LI Trip, 1200 A Trip, 3 Pole, 3, Line/Load Lug, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1, DIN Rail Mount, -13 to 158 deg F, 16.26 in H x 8.27 in W x 8.07 in D
Square D™ PowerPact™ Molded Case Circuit Breaker, 480 VAC, 1200 A, 50/60 Hz, 125 kA at 240 VAC, 100 kA at 480 VAC, 25 kA at 600 VAC Interrupt, P Frame, Electronic Basic ET 1.0 I LI Trip, 1200 A Trip, 3 Pole, 3, Line/Load Lug, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1, DIN Rail Mount, -13 to 158 deg F, 16.26 in H x 8.27 in W x 8.07 in D
Alternate Catalog Number PLL34120 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number PLL34120 Connection AWG 3/0...500 KCMIL ALUMINIUM/COPPER)4,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin UKN Currency USD Dimensions 16.26 in H x 8.27 in W x 8.07 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P-FRAME Frequency Rating 50/60 Gross Weight Per Pack 32.0000 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.99 in Height [Metric] 41.0000 cm Item Group 01215 Length 7.96 in Length [Metric] 20.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434165&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable Y Standard IEC-UL LISTED-CSA Temperature Rating -13 to 158 Trip Range 1200 A,1200 A Type Circuit Breaker UNSPSC 39121601 UPC 11 78590183067 UPC 12 785901830672 Warranty Description Contractual Warranty:18 months Width 8.19 in Width [Metric] 21.0000 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A,1200 A Interrupt Rating 125 KA 240 V AC-100 KA 480 V AC,480 V AC Trip Type ELECTRONIC, BASIC, ET 1.0I, LI Voltage Rating 480 VAC Distribution UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | PLL34120 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PLL34120 |
| Connection | AWG 3/0...500 KCMIL ALUMINIUM/COPPER)4,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | UKN |
| Currency | USD |
| Dimensions | 16.26 in H x 8.27 in W x 8.07 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P-FRAME |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 32.0000 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.99 in |
| Height [Metric] | 41.0000 cm |
| Item Group | 01215 |
| Length | 7.96 in |
| Length [Metric] | 20.4000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434165&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Standard | IEC-UL LISTED-CSA |
| Temperature Rating | -13 to 158 |
| Trip Range | 1200 A,1200 A |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590183067 |
| UPC 12 | 785901830672 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.19 in |
| Width [Metric] | 21.0000 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A,1200 A |
| Interrupt Rating | 125 KA 240 V AC-100 KA 480 V AC,480 V AC |
| Trip Type | ELECTRONIC, BASIC, ET 1.0I, LI |
| Voltage Rating | 480 VAC |
| Distribution |
| UNIT MOUNT |
