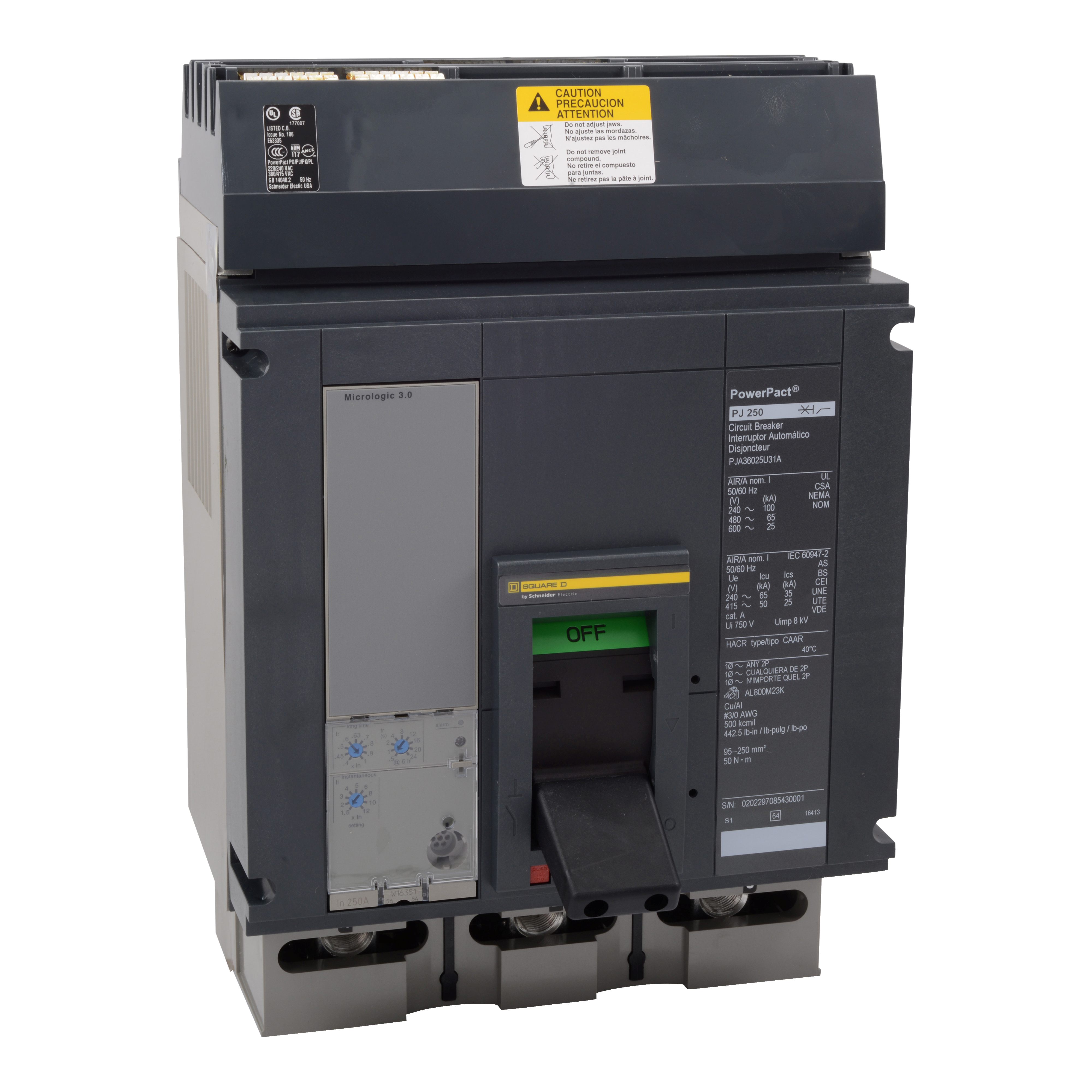

Square D™ PLA34025U44A Molded Case Circuit Breaker, 480 VAC, 250 A, 100 kA Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.0 A LSIG Trip
Molded Case Circuit Breakers
PDW~11759459
MFG #: PLA34025U44A
Square D™
21365.00000
/ ea
Square D™ PowerPact™ Molded Case Circuit Breaker, 480 VAC, 250 A, 60 Hz Frequency, 100 kA Interrupt, P Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 3 Poles, I-Line™ Line/Lug Load Connection, (3) 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, 8.27 in W x 8.05 in D x 12.86 in H Dimensions
- Brochure URL - 11003_L0S91UTP6K43QWE5.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PLA34025U44A_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_0MVS43HU5R1IP2LW.pdf(Service Manual URL)
- Spec Sheet URL - 11003_W6TOVS0N3M2GHAXD.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_9W7NE3ROYJCF42SI.pdf(Tech Drawing URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=48049-148-05.pdf(User Manual URL)
