Square D™

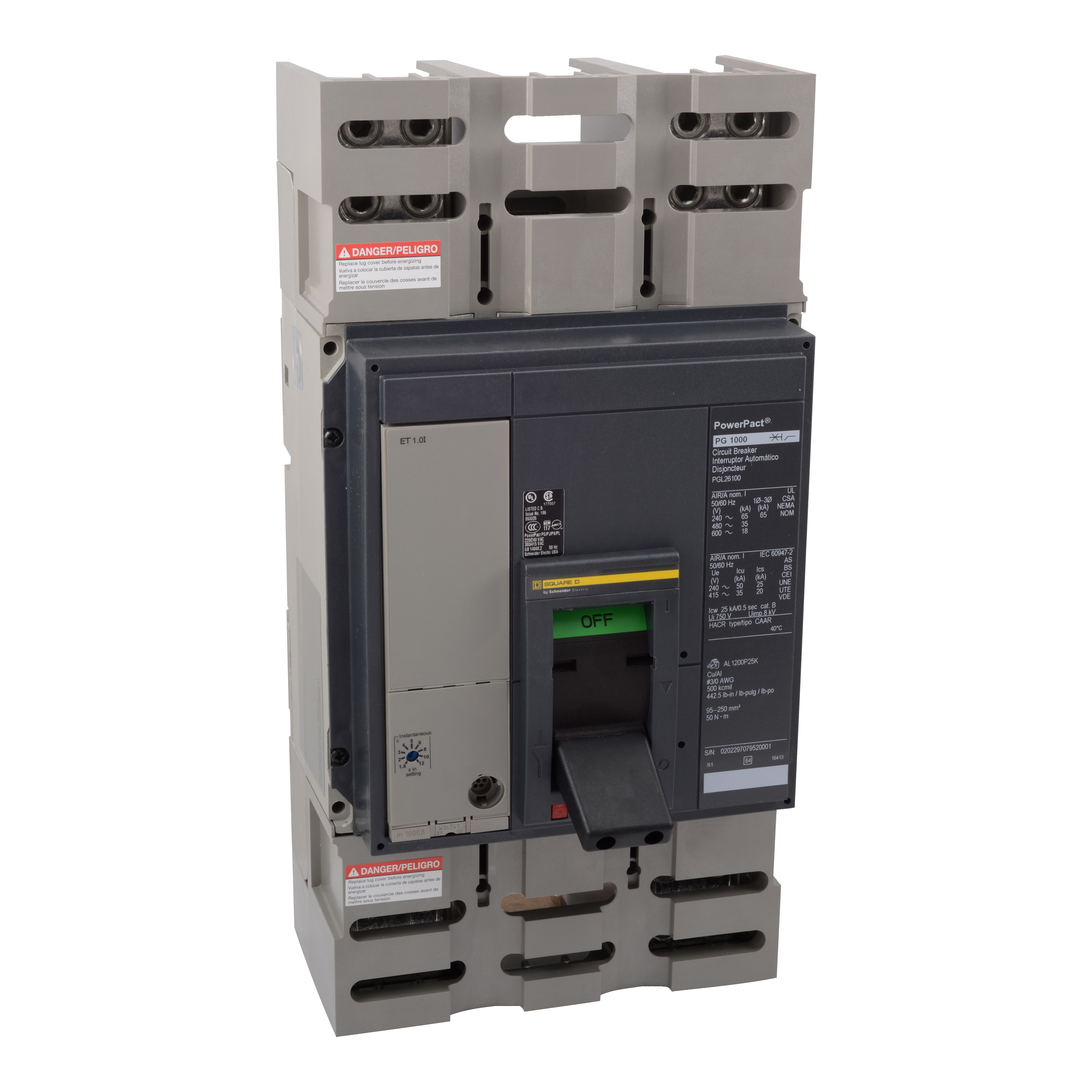

Square D™ PJL36100CU44A Molded Case Circuit Breaker, 600 VAC, 1000 A, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.0 A LSIG Trip
Square D™
Square D™ PJL36100CU44A Molded Case Circuit Breaker, 600 VAC, 1000 A, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.0 A LSIG Trip
SKUPDW~11758542
MFGR #PJL36100CU44A
Your Cost: $23,026.19/ea
List: Schneider Electric Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 1000 A, 50/60 Hz Frequency, 25 kA at 600 VAC Interrupt, P Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 3 Pole, Line/Load Lug Connection, 3/0 AWG to 500 kcmil AL/CU Wire, 104 deg F, 8.27 in W x 8.05 in D x 16.16 in H Dimensions
Schneider Electric Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 1000 A, 50/60 Hz Frequency, 25 kA at 600 VAC Interrupt, P Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 3 Pole, Line/Load Lug Connection, 3/0 AWG to 500 kcmil AL/CU Wire, 104 deg F, 8.27 in W x 8.05 in D x 16.16 in H Dimensions
Alternate Catalog Number PJL36100CU44A Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number PJL36100CU44A Connection Lugs line;lugs load; 4 x AWG 3/0...500 kcmil aluminium/copper Country of Origin IT Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 29.8450 in Height [Metric] 29.8450 cm Item Group 01215 Length 51.4350 in Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432847&lang=en-us Number Of Poles 3 Returnable Y Type Circuit Breaker UNSPSC 39121601 UPC 11 78590118943 UPC 12 785901189435 Warranty Description Contractual Warranty:18 months Width 29.5280 in Width [Metric] 29.5280 cm Brand Square D™ Manufacturer Schneider Electric Trip Type Electronic, ammeter, MicroLogic 6.0 A, LSIG Distribution
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Substitute Products
| Alternate Catalog Number | PJL36100CU44A |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJL36100CU44A |
| Connection | Lugs line;lugs load; 4 x AWG 3/0...500 kcmil aluminium/copper |
| Country of Origin | IT |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 29.8450 in |
| Height [Metric] | 29.8450 cm |
| Item Group | 01215 |
| Length | 51.4350 in |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432847&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590118943 |
| UPC 12 | 785901189435 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.5280 in |
| Width [Metric] | 29.5280 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Electronic, ammeter, MicroLogic 6.0 A, LSIG |
| Distribution |
