Steiner serves territories in Northern Illinois, Northwest Indiana and Southern Wisconsin. Please for assistance if outside our sales territory.
Square D™

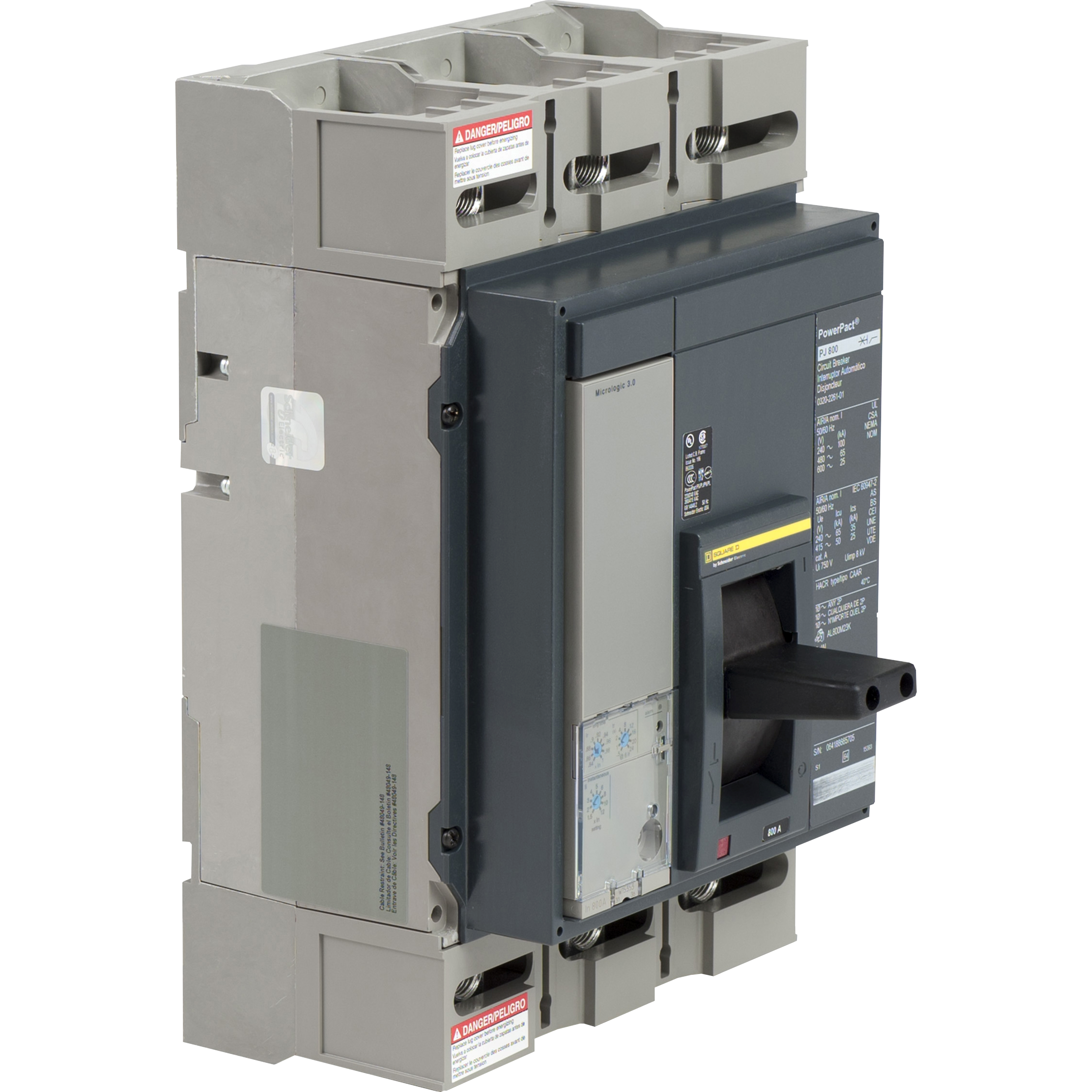

Square D™ PJL36080CU33A Type PJL P Molded Case Circuit Breaker, 600 VAC, 800 A, 25/65/100 kA Interrupt, 3 Poles, Electronic Standard Micrologic™ 5.0 LSI Trip
Custom_Product_Images_Illustration
Square D™
Square D™ PJL36080CU33A Type PJL P Molded Case Circuit Breaker, 600 VAC, 800 A, 25/65/100 kA Interrupt, 3 Poles, Electronic Standard Micrologic™ 5.0 LSI Trip
SKUPDW~7385348
MFGR #PJL36080CU33A
Your Cost: $14,778.24/ea
List: Square D™ PowerPact™ P Molded Case Circuit Breaker, Type PJL, 600 VAC, 800 A, 50/60 Hz, 25/65/100 kA Interrupt, P Frame, Electronic Standard Micrologic™ 5.0 LSI Trip, 3 Pole, 3, Line/Load Lug, (3) 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1, DIN Rail Mount, -13 to 158 deg F, 8.05 in L x 8.27 in W x 12.86 in H
Square D™ PowerPact™ P Molded Case Circuit Breaker, Type PJL, 600 VAC, 800 A, 50/60 Hz, 25/65/100 kA Interrupt, P Frame, Electronic Standard Micrologic™ 5.0 LSI Trip, 3 Pole, 3, Line/Load Lug, (3) 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1, DIN Rail Mount, -13 to 158 deg F, 8.05 in L x 8.27 in W x 12.86 in H
Actuator Toggle Alternate Catalog Number PJL36080CU33A Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number PJL36080CU33A Connection Lugs line;lugs load; 3 x AWG 3/0...500 kcmil aluminium/copper Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 8.05 in L x 8.27 in W x 12.86 in H Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P Frequency Rating 50/60 Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 29.8450 in Height [Metric] 29.8450 cm Item Group 01215 Length 51.4350 in Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432797&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable Y Sub Brand PowerPact P Temperature Rating -13 to 158 Type Type PJL UNSPSC 39121616 UPC 11 78590191797 UPC 12 785901917977 Warranty Description Contractual Warranty:18 months Width 29.5280 in Width [Metric] 29.5280 cm Wire Size (3) 3/0 AWG to 500 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 Interrupt Rating 25/65/100 Trip Type Electronic Standard Micrologic™ 5.0 LSI Voltage Rating 600 Distribution 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | PJL36080CU33A |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJL36080CU33A |
| Connection | Lugs line;lugs load; 3 x AWG 3/0...500 kcmil aluminium/copper |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.05 in L x 8.27 in W x 12.86 in H |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 29.8450 in |
| Height [Metric] | 29.8450 cm |
| Item Group | 01215 |
| Length | 51.4350 in |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432797&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Sub Brand | PowerPact P |
| Temperature Rating | -13 to 158 |
| Type | Type PJL |
| UNSPSC | 39121616 |
| UPC 11 | 78590191797 |
| UPC 12 | 785901917977 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.5280 in |
| Width [Metric] | 29.5280 cm |
| Wire Size | (3) 3/0 AWG to 500 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 |
| Interrupt Rating | 25/65/100 |
| Trip Type | Electronic Standard Micrologic™ 5.0 LSI |
| Voltage Rating | 600 |
