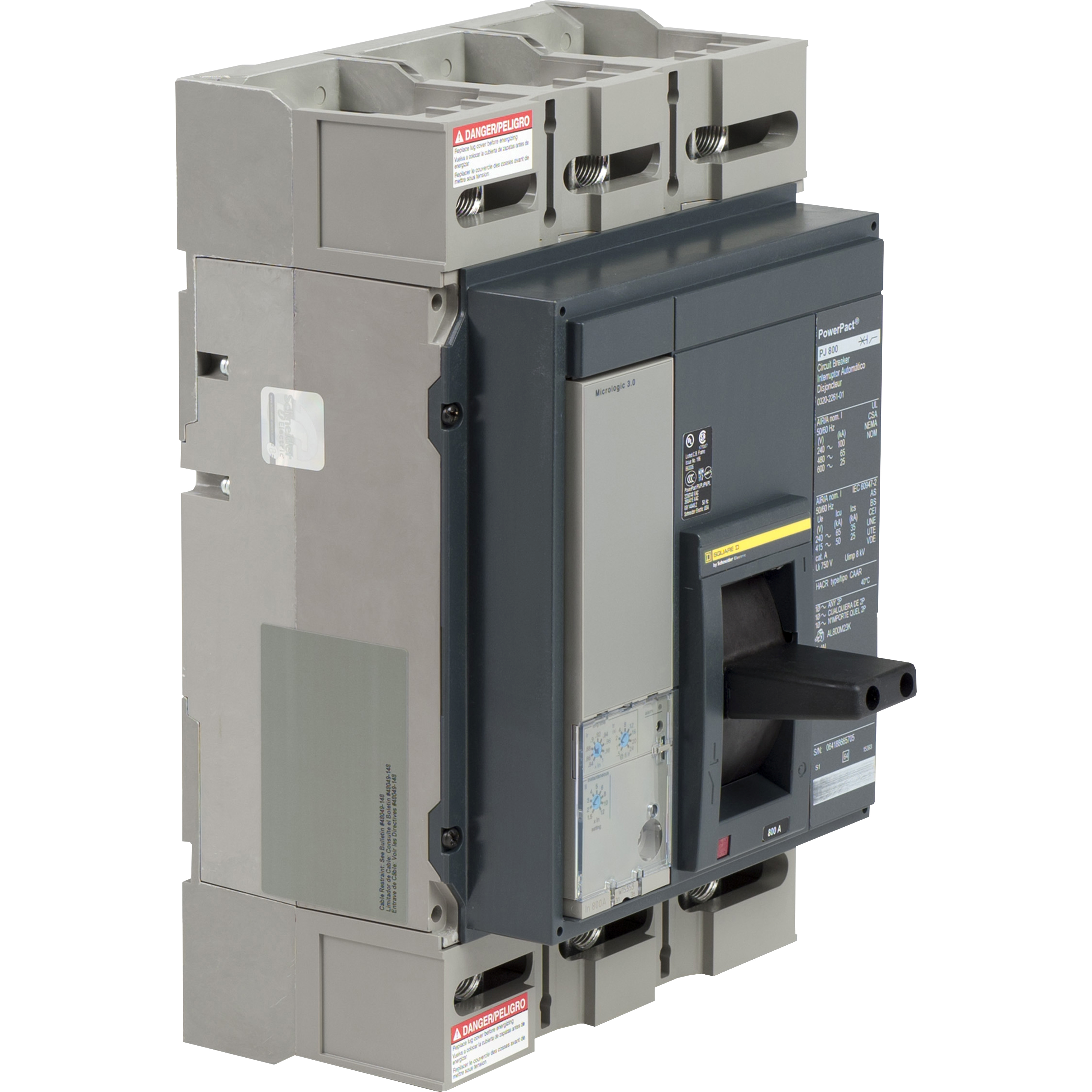

Square D™ PJL36025U31A Molded Case Circuit Breaker, 600 VAC, 250 A, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Standard Micrologic™ 3.0 LI Trip
Custom_Product_Images_Illustration
Square D™ PJL36025U31A Molded Case Circuit Breaker, 600 VAC, 250 A, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Standard Micrologic™ 3.0 LI Trip
SKUPDW~6412998
MFGR #PJL36025U31A
Price Not Available
List: Schneider Electric PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz Frequency, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, P Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 250 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, DIN Rail Mounting, -13 to 158 deg F, 12.86 in H x 8.27 in W x 8.07 in D Dimensions
Schneider Electric PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz Frequency, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, P Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 250 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, DIN Rail Mounting, -13 to 158 deg F, 12.86 in H x 8.27 in W x 8.07 in D Dimensions
Alternate Catalog Number PJL36025U31A Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number PJL36025U31A Connection Lugs line;lugs load; 3 x AWG 3/0...500 kcmil aluminium/copper Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 12.86 in H x 8.27 in W x 8.07 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P Frequency Rating 50/60 Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 29.8450 CM Height [Metric] 29.8450 cm Item Group 01215 Length 51.4350 CM Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432683&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable Y Temperature Rating -13 to 158 Trip Range 250 Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590145809 UPC 12 785901458098 Warranty Description Contractual Warranty:18 months Width 30.0000 CM Width [Metric] 29.5280 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 Interrupt Rating 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Trip Type Electronic Standard Micrologic™ 3.0 LI Voltage Rating 600 VAC Distribution UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | PJL36025U31A |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJL36025U31A |
| Connection | Lugs line;lugs load; 3 x AWG 3/0...500 kcmil aluminium/copper |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 12.86 in H x 8.27 in W x 8.07 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 29.8450 CM |
| Height [Metric] | 29.8450 cm |
| Item Group | 01215 |
| Length | 51.4350 CM |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432683&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Temperature Rating | -13 to 158 |
| Trip Range | 250 |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590145809 |
| UPC 12 | 785901458098 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.0000 CM |
| Width [Metric] | 29.5280 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 |
| Interrupt Rating | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC |
| Trip Type | Electronic Standard Micrologic™ 3.0 LI |
| Voltage Rating | 600 VAC |
| Distribution |
| UNIT MOUNT |
