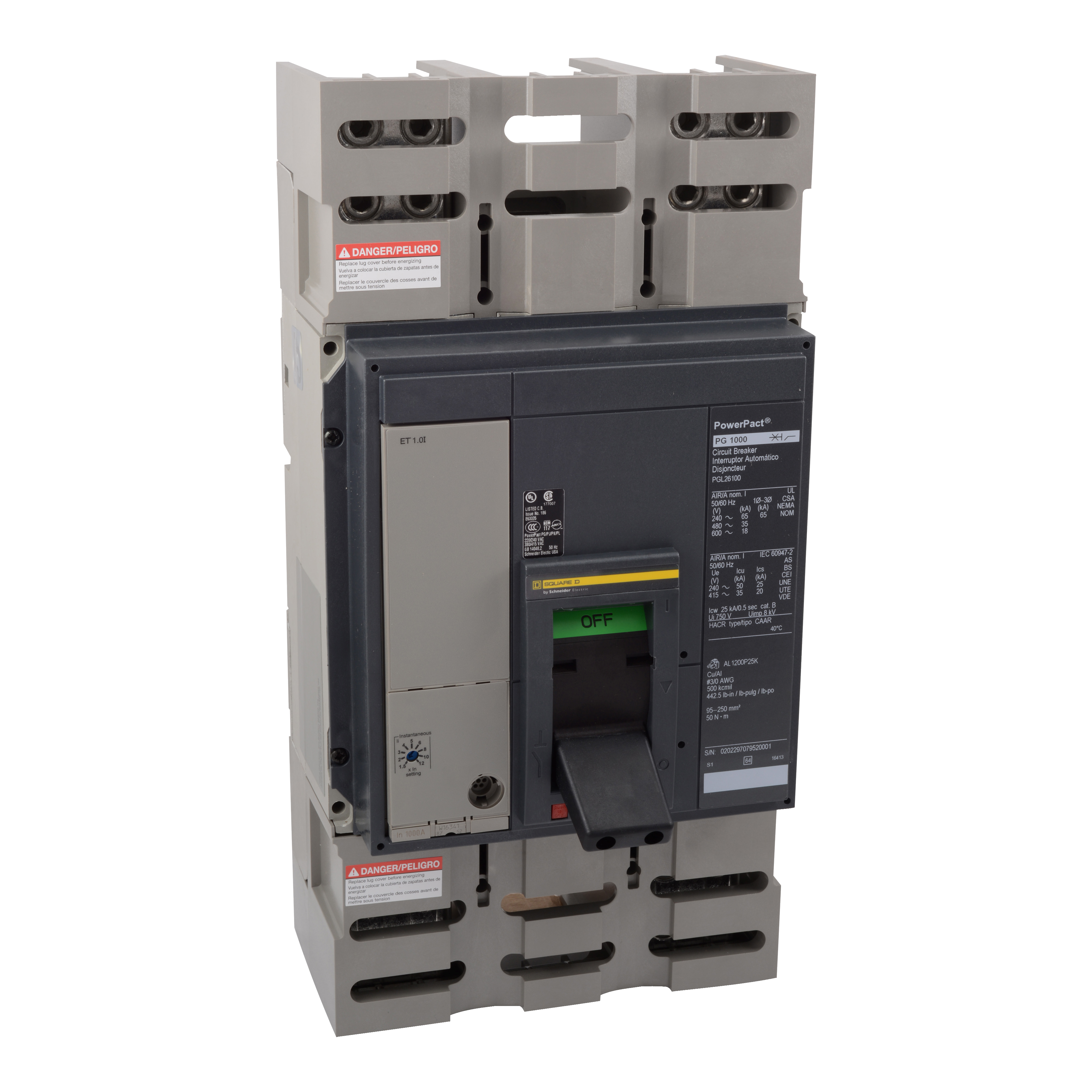

Square D™ PJF36080CU31A Molded Case Circuit Breaker, 600 VAC, 800 A, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Standard Micrologic™ 3.0 LI Trip
Custom_Product_Images_Illustration
Square D™ PJF36080CU31A Molded Case Circuit Breaker, 600 VAC, 800 A, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Standard Micrologic™ 3.0 LI Trip
SKUPDW~9356184
MFGR #PJF36080CU31A
Your Cost: $19,305.81/ea
List: Schneider Electric PowerPact™ Molded Case Circuit Breaker, 600 VAC, 800 A, 50/60 Hz Frequency, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, P Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 800 A Trip, 3 Pole, 3 ph, Line/Load Busbar Connection, NEMA AB1 Enclosure, DIN Rail Mounting, -13 to 158 deg F, 12.86 in H x 8.27 in W x 8.05 in D Dimensions
Schneider Electric PowerPact™ Molded Case Circuit Breaker, 600 VAC, 800 A, 50/60 Hz Frequency, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, P Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 800 A Trip, 3 Pole, 3 ph, Line/Load Busbar Connection, NEMA AB1 Enclosure, DIN Rail Mounting, -13 to 158 deg F, 12.86 in H x 8.27 in W x 8.05 in D Dimensions
Actuator Toggle Alternate Catalog Number PJF36080CU31A Application Distribution;HACR rated ARRA Compliant N Buy American Compliant N Catalog Number PJF36080CU31A Connection Busbar connection line;busbar connection load; 3 x AWG 3/0...500 kcmil aluminium/copper Connection Type Line/Load Busbar Country of Origin US Currency USD Depth 8.05 in Dimensions 12.86 in H x 8.27 in W x 8.05 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P Frequency Rating 50/60 Hz Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 22.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 28.2000 in Height [Metric] 28.2000 cm Item Group 01215 Length 51.5000 in Length [Metric] 51.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61680872&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable Y Sub Brand PowerPact P Temperature Rating -13 to 158 Trip Range 800 Type Circuit Breaker UNSPSC 39121616 UPC 11 78590176250 UPC 12 785901762508 Warranty Description Contractual Warranty:18 months Width 29.6000 in Width [Metric] 29.6000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 Interrupt Rating 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Trip Type Electronic Standard Micrologic™ 3.0 LI Voltage Rating 600 Distribution;HACR rated 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | PJF36080CU31A |
| Application | Distribution;HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJF36080CU31A |
| Connection | Busbar connection line;busbar connection load; 3 x AWG 3/0...500 kcmil aluminium/copper |
| Connection Type | Line/Load Busbar |
| Country of Origin | US |
| Currency | USD |
| Depth | 8.05 in |
| Dimensions | 12.86 in H x 8.27 in W x 8.05 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 22.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 28.2000 in |
| Height [Metric] | 28.2000 cm |
| Item Group | 01215 |
| Length | 51.5000 in |
| Length [Metric] | 51.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61680872&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Sub Brand | PowerPact P |
| Temperature Rating | -13 to 158 |
| Trip Range | 800 |
| Type | Circuit Breaker |
| UNSPSC | 39121616 |
| UPC 11 | 78590176250 |
| UPC 12 | 785901762508 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.6000 in |
| Width [Metric] | 29.6000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 |
| Interrupt Rating | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC |
| Trip Type | Electronic Standard Micrologic™ 3.0 LI |
| Voltage Rating | 600 |
| Distribution;HACR rated |
