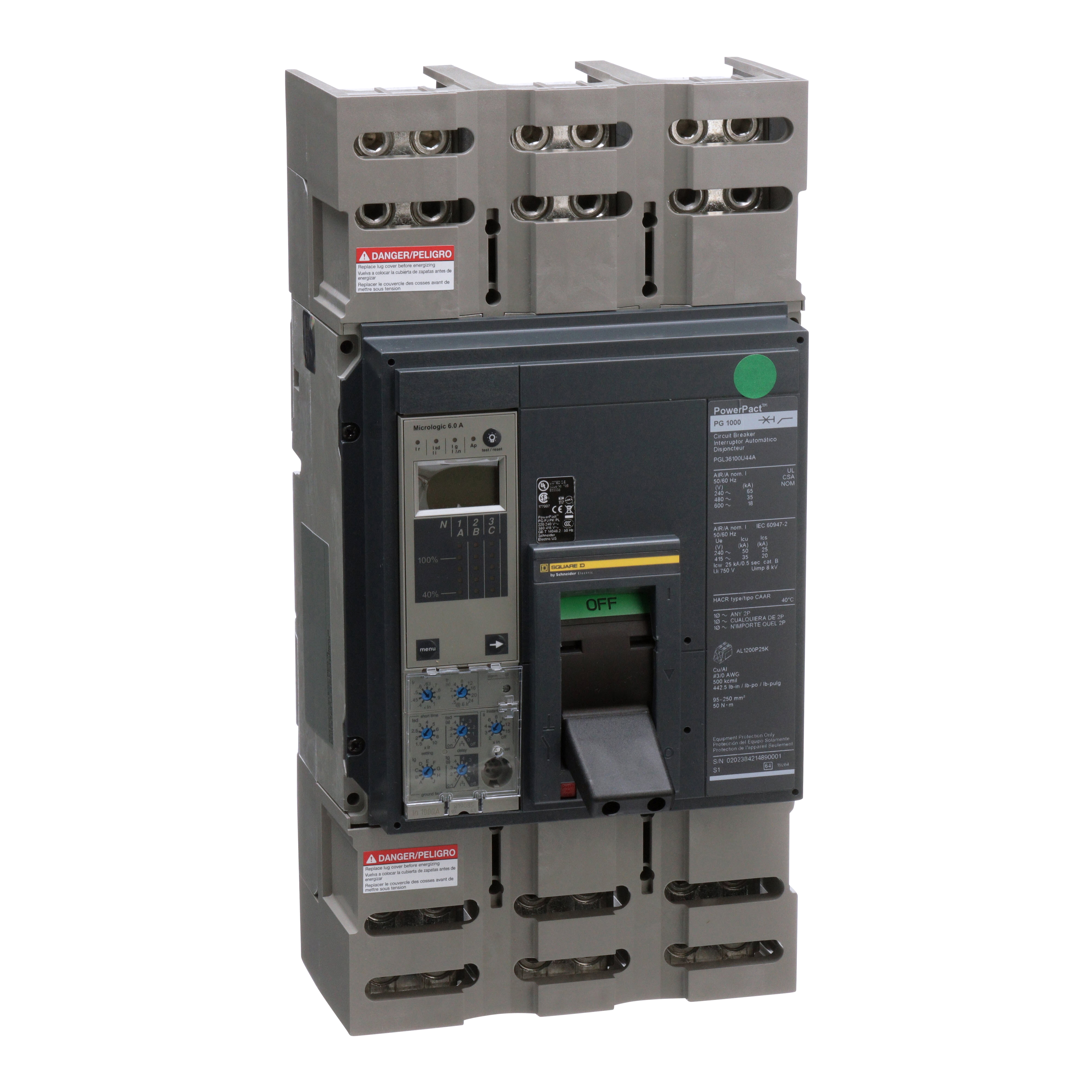

Square D™ PGL36100U44A Type PGL Molded Case Circuit Breaker, 600 VAC, 1000 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.0 A LSIG Trip
Custom_Product_Images_Illustration
Square D™ PGL36100U44A Type PGL Molded Case Circuit Breaker, 600 VAC, 1000 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.0 A LSIG Trip
SKUPDW~7520992
MFGR #PGL36100U44A
Your Cost: $15,330.82/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, Type PGL, 600 VAC, 1000 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 100 to 1200 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al, 4 AWG Cu Wire, NEMA AB1 Enclosure, Bolt-On/Unit Mounting, 104 deg F, 8.1 in L x 8.3 in W x 16.2 in H Dimensions
Square D™ PowerPact™ Molded Case Circuit Breaker, Type PGL, 600 VAC, 1000 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 100 to 1200 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al, 4 AWG Cu Wire, NEMA AB1 Enclosure, Bolt-On/Unit Mounting, 104 deg F, 8.1 in L x 8.3 in W x 16.2 in H Dimensions
Actuator ELECTRONIC Alternate Catalog Number PGL36100U44A Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number PGL36100U44A Connection LUGS (ON AND OFF ENDS) Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 8.1 in L x 8.3 in W x 16.2 in H Enclosure Type NEMA AB1 Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame P-FRAME Frequency Rating 50/60 Hz Gross Volume Per Pack 3025.80 Gross Volume per Pack Metric 49583.78 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1698 lb Gross Weight per Pack Metric 17.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 31.2420 in Height [Metric] 31.2420 cm Item Group 01215 Length 52.0700 in Length [Metric] 52.0700 cm Material Various Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431887&lang=en-us Mounting Type Bolt-On/Unit Number Of Poles 3 Operating Temperature 40DEG CELSIUS Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED Sub Brand POWERPACT Temperature Rating 104 Trip Range 100-1200A Type ELECTRONIC TRIP CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590191259 UPC 12 785901912590 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 30.4800 cm Wire Size 3/0 AWG to 500 kcmil Al, 4 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1k A Interrupt Rating 65KA@240VAC - 35KA@480VAC - 18KA@600VAC Trip Type MICROLOGIC AMMETER TRIP UNIT (6.0A) LSIG Voltage Rating 600 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | ELECTRONIC |
| Alternate Catalog Number | PGL36100U44A |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PGL36100U44A |
| Connection | LUGS (ON AND OFF ENDS) |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.1 in L x 8.3 in W x 16.2 in H |
| Enclosure Type | NEMA AB1 |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | P-FRAME |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3025.80 |
| Gross Volume per Pack Metric | 49583.78 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1698 lb |
| Gross Weight per Pack Metric | 17.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 31.2420 in |
| Height [Metric] | 31.2420 cm |
| Item Group | 01215 |
| Length | 52.0700 in |
| Length [Metric] | 52.0700 cm |
| Material | Various |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431887&lang=en-us |
| Mounting Type | Bolt-On/Unit |
| Number Of Poles | 3 |
| Operating Temperature | 40DEG CELSIUS |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Sub Brand | POWERPACT |
| Temperature Rating | 104 |
| Trip Range | 100-1200A |
| Type | ELECTRONIC TRIP CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590191259 |
| UPC 12 | 785901912590 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 30.4800 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al, 4 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1k A |
| Interrupt Rating | 65KA@240VAC - 35KA@480VAC - 18KA@600VAC |
| Trip Type | MICROLOGIC AMMETER TRIP UNIT (6.0A) LSIG |
| Voltage Rating | 600 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
