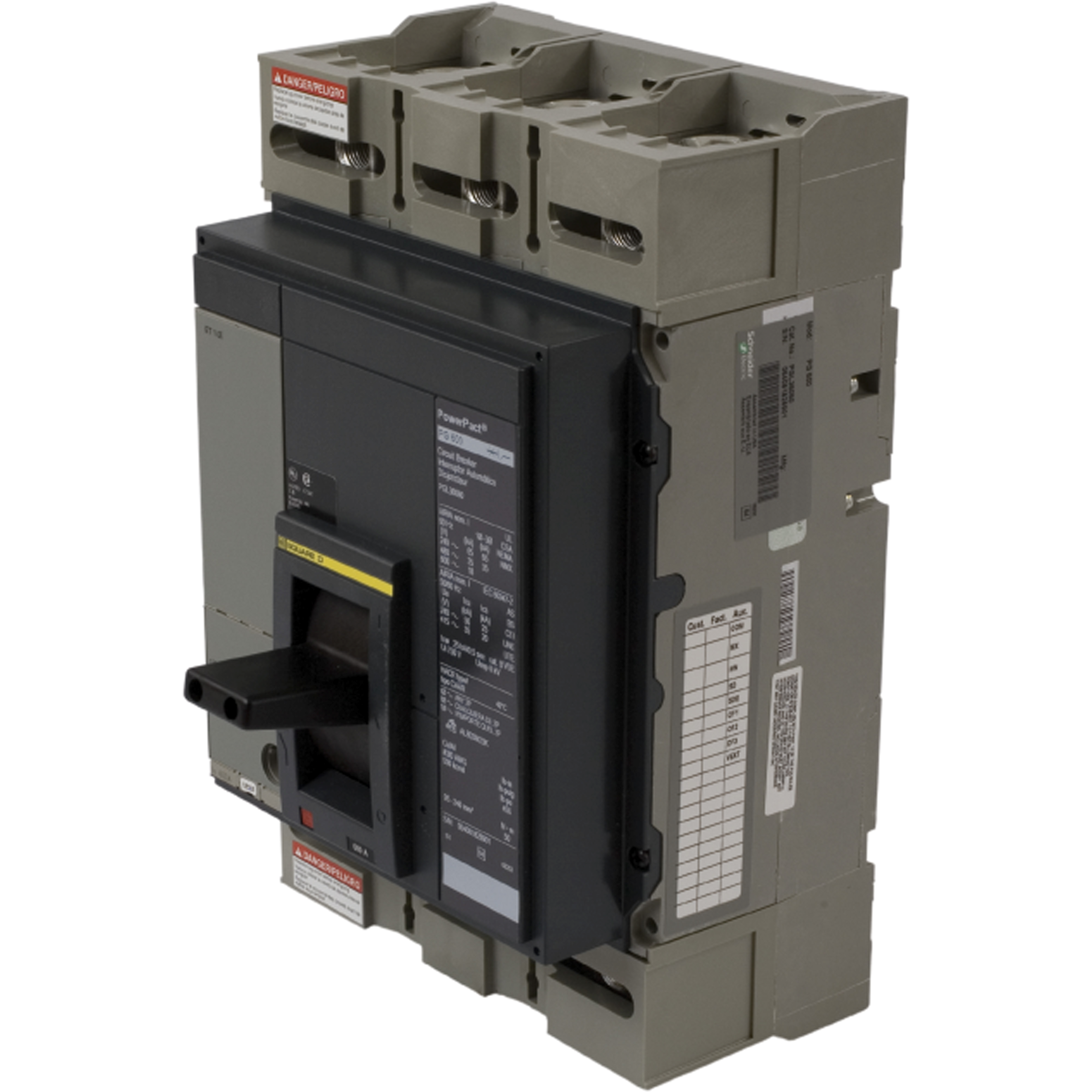

Square D™ PGL36025U63AE1 Molded Case Circuit Breaker, 600 VAC, 250 A, 18 kA Interrupt, 3 Poles, Electronic Power Micrologic 5.0 P LSI Trip
Molded Case Circuit Breakers
PDW~11756684
MFG #: PGL36025U63AE1
Square D™
0.00000
/ ea
Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 60 Hz Frequency, 18 kA Interrupt, P Frame, Electronic Power Micrologic 5.0 P LSI Trip, 3 Poles, Lug Line/Load Connection, (3) 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, 8.27 in W x 8.05 in D x 12.86 in H Dimensions
- Brochure URL - 11003_L0S91UTP6K43QWE5.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PGL36025U63AE1_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_0MVS43HU5R1IP2LW.pdf(Service Manual URL)
- Spec Sheet URL - 11003_1A7W2MGKQZO0F9N3.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_E7SPO3QIJGV8BRZ4.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_RI0QU3L5K2BC61FM.pdf(Tech Drawing URL)
- Applications
- Features
| Distribution |
| Modbus connecting cable;Modbus |
