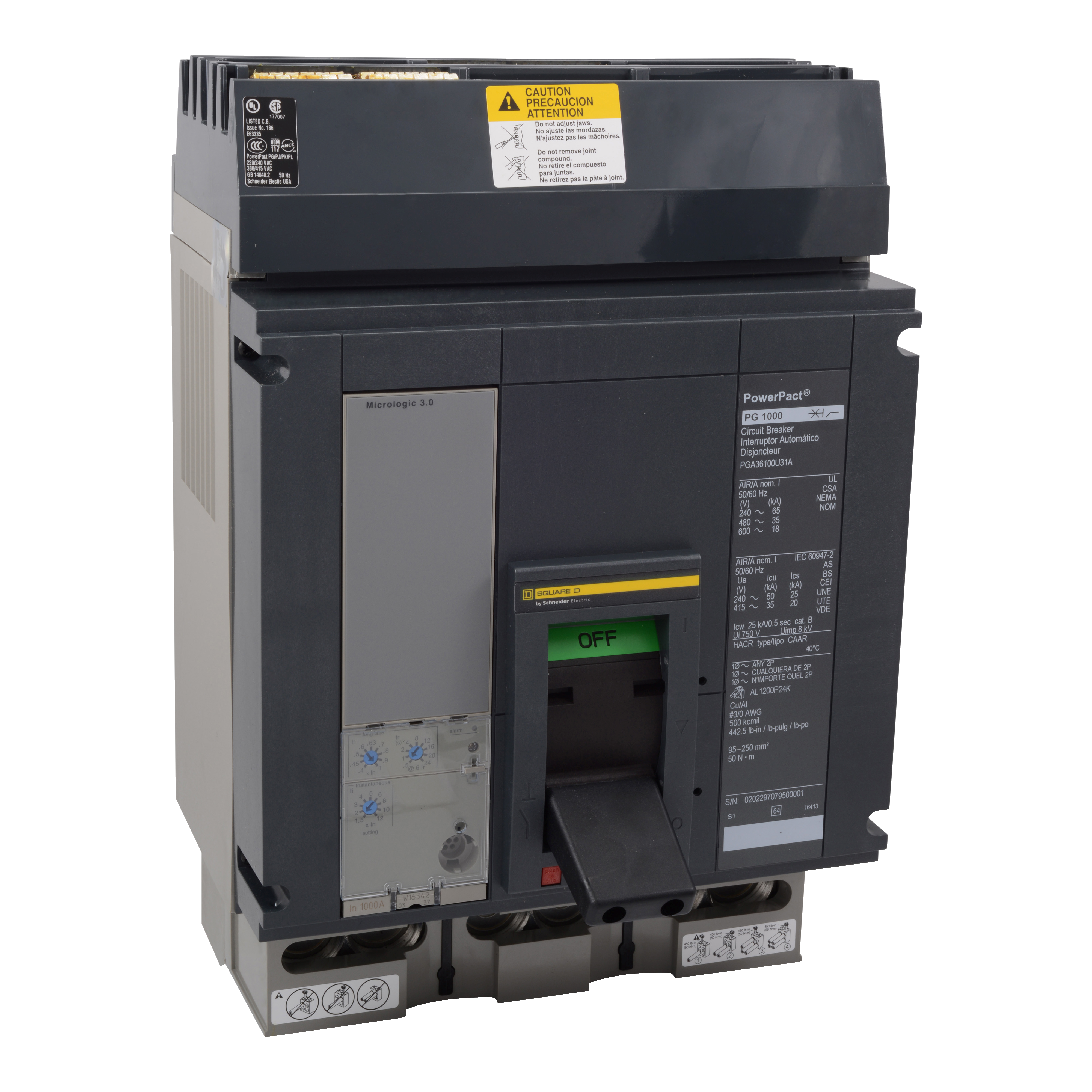

Square D™ PGA36120U31A Type PGA Molded Case Circuit Breaker, 600 VAC, 1200 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Standard Micrologic™ 3.0 LI Trip
Custom_Product_Images_Illustration
Square D™
Square D™ PGA36120U31A Type PGA Molded Case Circuit Breaker, 600 VAC, 1200 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Standard Micrologic™ 3.0 LI Trip
SKUPDW~6412902
MFGR #PGA36120U31A
Your Cost: $16,496.12/ea
List: Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type PGA, 600 VAC, 1200 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 100 to 1200 A Trip, 3 Pole, 3 ph, Load Lug/Plug-On Connection, 3/0 AWG to 500 kcmil Al, 4 AWG Cu Wire, NEMA AB1 Enclosure, Busbar Mounting, 104 deg F, 8.1 in L x 8.3 in W x 16.2 in H Dimensions
Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type PGA, 600 VAC, 1200 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 100 to 1200 A Trip, 3 Pole, 3 ph, Load Lug/Plug-On Connection, 3/0 AWG to 500 kcmil Al, 4 AWG Cu Wire, NEMA AB1 Enclosure, Busbar Mounting, 104 deg F, 8.1 in L x 8.3 in W x 16.2 in H Dimensions
Actuator Toggle Alternate Catalog Number PGA36120U31A Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number PGA36120U31A Connection I-Line connection line;lugs load; 4 x AWG 3/0...500 kcmil aluminium/copper Connection Type Load Lug/Plug-On Country of Origin US Currency USD Dimensions 8.1 in L x 8.3 in W x 16.2 in H Enclosure Type NEMA AB1 Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame P Frequency Rating 50/60 Hz Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 29.8450 in Height [Metric] 29.8450 cm Item Group 01210 Length 51.4350 in Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431393&lang=en-us Mounting Type Busbar Number Of Poles 3 Phase 3 Returnable Y Sub Brand PowerPact P Temperature Rating 104 Trip Range 100 to 1200 Type Type PGA UNSPSC 39121616 UPC 11 78590155094 UPC 12 785901550945 Warranty Description Contractual Warranty:18 months Width 29.5280 in Width [Metric] 29.5280 cm Wire Size 3/0 AWG to 500 kcmil Al, 4 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A Interrupt Rating 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Trip Type Electronic Standard Micrologic™ 3.0 LI Voltage Rating 600 Distribution 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | PGA36120U31A |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PGA36120U31A |
| Connection | I-Line connection line;lugs load; 4 x AWG 3/0...500 kcmil aluminium/copper |
| Connection Type | Load Lug/Plug-On |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.1 in L x 8.3 in W x 16.2 in H |
| Enclosure Type | NEMA AB1 |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 29.8450 in |
| Height [Metric] | 29.8450 cm |
| Item Group | 01210 |
| Length | 51.4350 in |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431393&lang=en-us |
| Mounting Type | Busbar |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Sub Brand | PowerPact P |
| Temperature Rating | 104 |
| Trip Range | 100 to 1200 |
| Type | Type PGA |
| UNSPSC | 39121616 |
| UPC 11 | 78590155094 |
| UPC 12 | 785901550945 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.5280 in |
| Width [Metric] | 29.5280 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al, 4 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A |
| Interrupt Rating | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| Trip Type | Electronic Standard Micrologic™ 3.0 LI |
| Voltage Rating | 600 |
