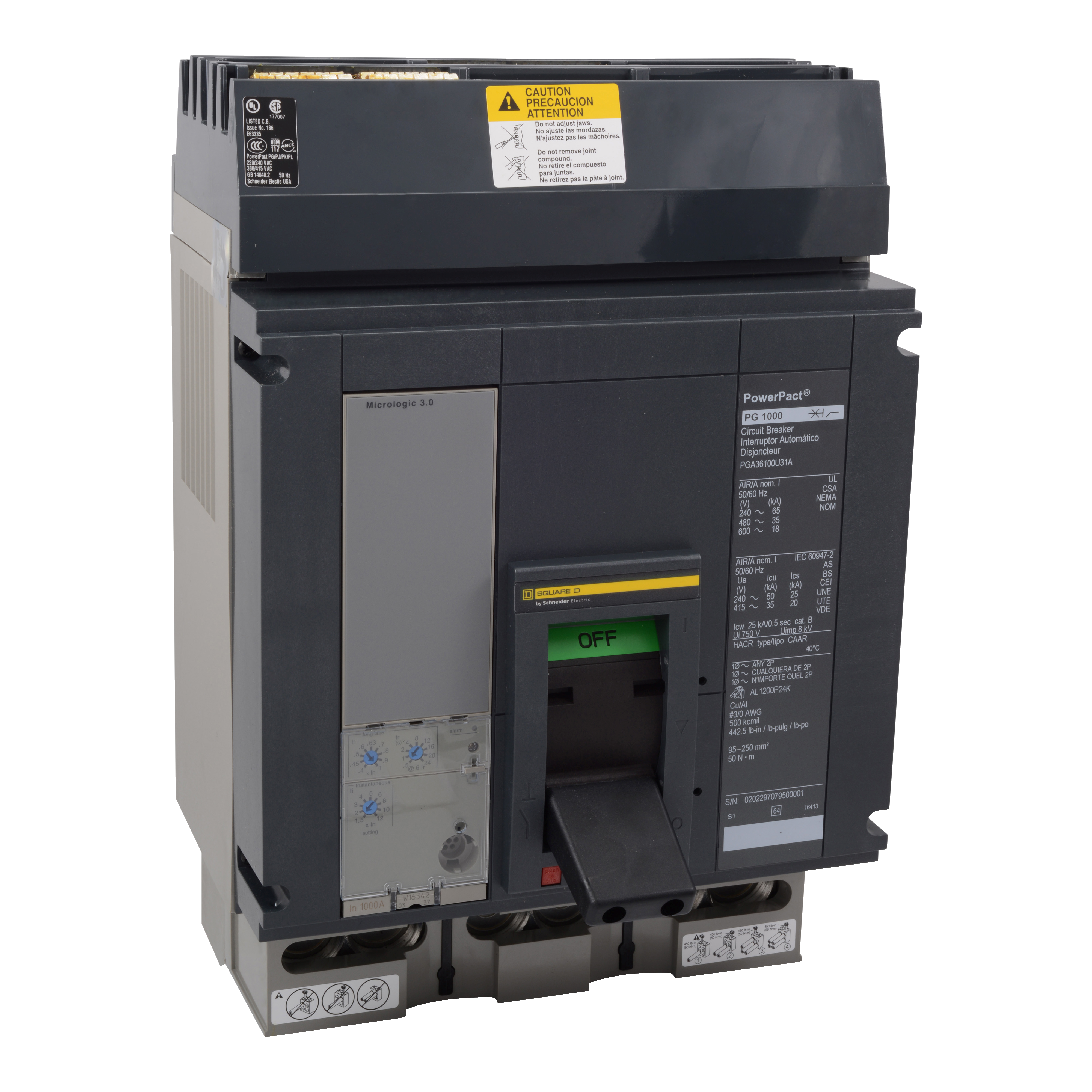

Square D™ PGA36100U41A Molded Case Circuit Breaker, 600 VAC, 1000 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 3.0 A LI Trip
Custom_Product_Images_Illustration
Square D™ PGA36100U41A Molded Case Circuit Breaker, 600 VAC, 1000 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 3.0 A LI Trip
SKUPDW~9920259
MFGR #PGA36100U41A
Your Cost: $13,793.52/ea
List: Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 1000 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Ammeter Micrologic 3.0 A LI Trip, 1000 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, DIN Rail Mounting, -13 to 158 deg F, 16.26 in H x 8.27 in W x 8.07 in D Dimensions
Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 1000 A, 50/60 Hz Frequency, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Ammeter Micrologic 3.0 A LI Trip, 1000 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, DIN Rail Mounting, -13 to 158 deg F, 16.26 in H x 8.27 in W x 8.07 in D Dimensions
Alternate Catalog Number PGA36100U41A ARRA Compliant N Buy American Compliant N Catalog Number PGA36100U41A Connection AWG 3/0...500 KCMIL ALUMINIUM/COPPER)4,I-LINE CONNECTION LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 16.26 in H x 8.27 in W x 8.07 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P-FRAME Frequency Rating 50/60 Gross Weight Per Pack 0.1452 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 29.8450 in Height [Metric] 29.8450 cm Item Group 01210 Length 51.4350 in Length [Metric] 51.4350 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431365&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable Y Standard UL LISTED-CSA-IEC Sub Brand A Temperature Rating -13 to 158 Trip Range 1000 A,1000 A Type Circuit Breaker UNSPSC 39121601 UPC 11 78590197753 UPC 12 785901977537 Warranty Description Contractual Warranty:18 months Width 29.5280 in Width [Metric] 29.5280 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1000 A,1000 A Interrupt Rating 600 V AC,65 KA 240 V AC-35 KA 480 V AC-18 KA 600 V AC Trip Type Electronic, ammeter, MicroLogic 3.0 A, LI Voltage Rating 600 VAC I-LINE
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | PGA36100U41A |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PGA36100U41A |
| Connection | AWG 3/0...500 KCMIL ALUMINIUM/COPPER)4,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 16.26 in H x 8.27 in W x 8.07 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P-FRAME |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 0.1452 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 29.8450 in |
| Height [Metric] | 29.8450 cm |
| Item Group | 01210 |
| Length | 51.4350 in |
| Length [Metric] | 51.4350 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431365&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED-CSA-IEC |
| Sub Brand | A |
| Temperature Rating | -13 to 158 |
| Trip Range | 1000 A,1000 A |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590197753 |
| UPC 12 | 785901977537 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.5280 in |
| Width [Metric] | 29.5280 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1000 A,1000 A |
| Interrupt Rating | 600 V AC,65 KA 240 V AC-35 KA 480 V AC-18 KA 600 V AC |
| Trip Type | Electronic, ammeter, MicroLogic 3.0 A, LI |
| Voltage Rating | 600 VAC |
| I-LINE |
