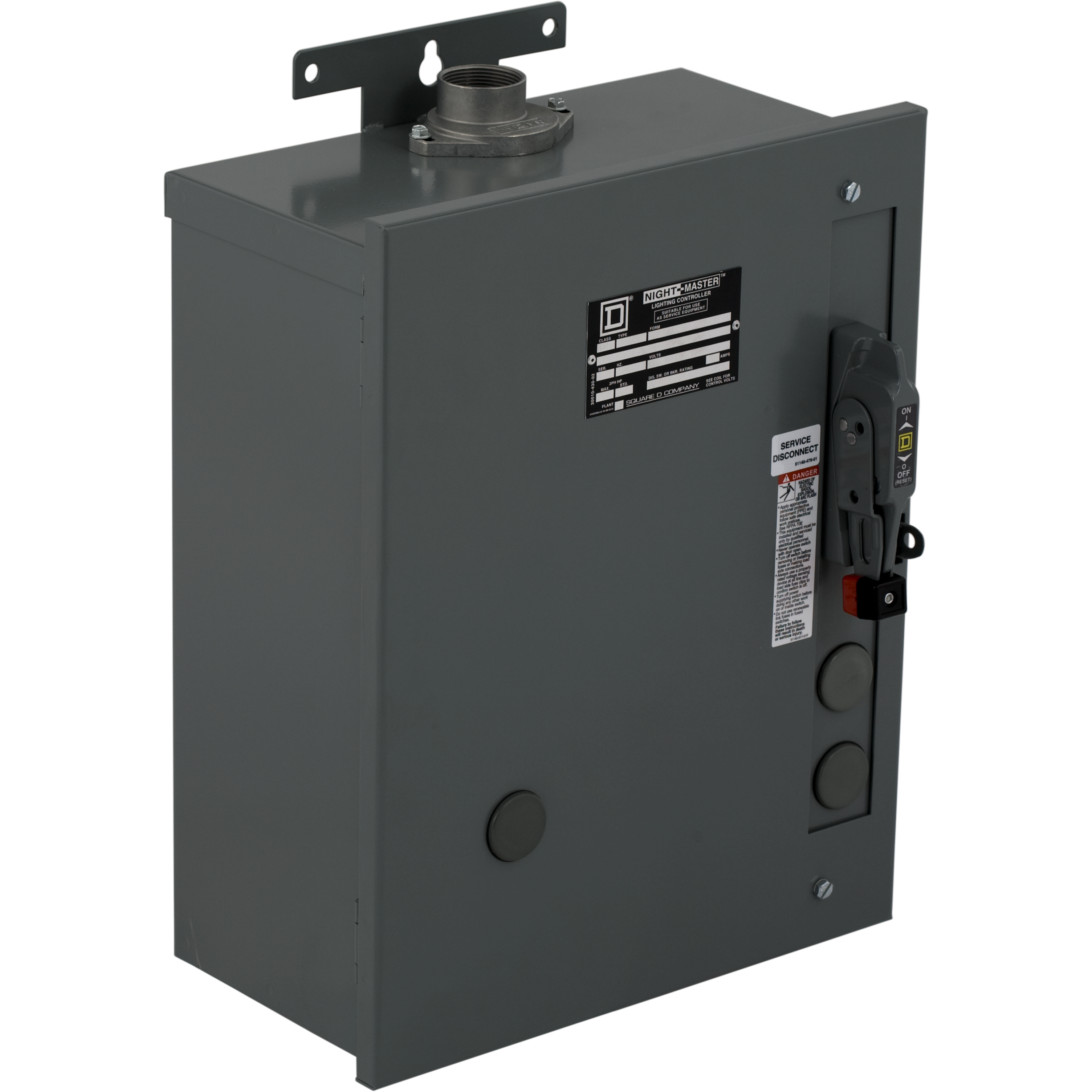

Square D™ Night-Master™ 8903SPC81V02 Combination Electrically Held Type S Lighting Contactor, 110 VAC at 50 Hz to 120 VAC at 60 Hz V Coil, 3 Poles
Custom_Product_Images_Illustration
Square D™ Night-Master™ 8903SPC81V02 Combination Electrically Held Type S Lighting Contactor, 110 VAC at 50 Hz to 120 VAC at 60 Hz V Coil, 3 Poles
SKU1163308
MFGR #8903SPC81V02
Your Cost: $3,159.00/ea
Square D™ Night-Master™ Lighting Contactor, Combination Electrically Held Type S, Series: 8903, 110 VAC at 50 Hz to 120 VAC at 60 Hz Coil, 3 Pole, 50/60 Hz Frequency, 20.7 kW at 200 V/23.9 kW at 230 V/39.4 kW at 380 V/47.8 kW at 460 V/60 kW at 575 V Wattage, 60 A Contact, Screw Clamp Terminal, NEMA 3R Enclosure, 10000 cpm Operating Cycles, 0 to 40 deg C Operating, Surface Mounting, Sheet Steel, Painted, 15 in W x 10.51 in D x 23.5 in H Dimensions
Square D™ Night-Master™ Lighting Contactor, Combination Electrically Held Type S, Series: 8903, 110 VAC at 50 Hz to 120 VAC at 60 Hz Coil, 3 Pole, 50/60 Hz Frequency, 20.7 kW at 200 V/23.9 kW at 230 V/39.4 kW at 380 V/47.8 kW at 460 V/60 kW at 575 V Wattage, 60 A Contact, Screw Clamp Terminal, NEMA 3R Enclosure, 10000 cpm Operating Cycles, 0 to 40 deg C Operating, Surface Mounting, Sheet Steel, Painted, 15 in W x 10.51 in D x 23.5 in H Dimensions
Alternate Catalog Number 8903SPC81V02 Application One stop shopping for OEM, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, The contactors can also be used for resistance heating loads ARRA Compliant N Buy American Compliant N Catalog Number 8903SPC81V02 Connection LUGS Contact Rating 60 Country of Origin MX Currency USD Dimensions 15 in W x 10.51 in D x 23.5 in H Enclosure Type NEMA 3R EU RoHS Indicator Y Finish Painted Frequency Rating 50/60 Gross Weight Per Pack 104.7800 lb Gross Weight per Pack Metric 47.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 23.28 in Height [Metric] 59.7000 cm Indicator Without pilot light Item Group 21326 Length 10.41 in Length [Metric] 26.7000 cm Material Sheet Steel Mounting Type Surface Number Of Poles 3 Operating Cycles 10000 Operating Temperature 0 to 40 Returnable N Series 8903 Size 10.51 in Standard UL LISTED FILE E16151 CCN NRNT Sub Brand S-NIGHT-MASTER Terminal Type Screw/Clamp UNSPSC 39121529 UPC 11 78590177991 UPC 12 785901779919 Warranty Description Contractual Warranty:18 months Wattage 20.7 kW at 200 V/23.9 kW at 230 V/39.4 kW at 380 V/47.8 kW at 460 V/60 kW at 575 V Width 14.86 in Width [Metric] 38.1000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Coil Voltage 110 VAC at 50 Hz to 120 VAC at 60 Hz Contact Configuration Without Type Combination Electrically Held Type S One stop shopping for OEM, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, The contactors can also be used for resistance heating loads COMMON CONTROL CIRCUIT,NONE Factory wired controls and clearly marked termination points 600 VAC system voltage Without indicator
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8903SPC81V02 |
| Application | One stop shopping for OEM, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, The contactors can also be used for resistance heating loads |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 8903SPC81V02 |
| Connection | LUGS |
| Contact Rating | 60 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 15 in W x 10.51 in D x 23.5 in H |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Finish | Painted |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 104.7800 lb |
| Gross Weight per Pack Metric | 47.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 23.28 in |
| Height [Metric] | 59.7000 cm |
| Indicator | Without pilot light |
| Item Group | 21326 |
| Length | 10.41 in |
| Length [Metric] | 26.7000 cm |
| Material | Sheet Steel |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Cycles | 10000 |
| Operating Temperature | 0 to 40 |
| Returnable | N |
| Series | 8903 |
| Size | 10.51 in |
| Standard | UL LISTED FILE E16151 CCN NRNT |
| Sub Brand | S-NIGHT-MASTER |
| Terminal Type | Screw/Clamp |
| UNSPSC | 39121529 |
| UPC 11 | 78590177991 |
| UPC 12 | 785901779919 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 20.7 kW at 200 V/23.9 kW at 230 V/39.4 kW at 380 V/47.8 kW at 460 V/60 kW at 575 V |
| Width | 14.86 in |
| Width [Metric] | 38.1000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 110 VAC at 50 Hz to 120 VAC at 60 Hz |
| Contact Configuration | Without |
| Type | Combination Electrically Held Type S |
| One stop shopping for OEM, panel builders, industrial, commercial, highway and area lighting applications where a lighting circuit may have to be disconnected for periodic maintenance, The contactors can also be used for resistance heating loads |
| COMMON CONTROL CIRCUIT,NONE |
| Factory wired controls and clearly marked termination points |
| 600 VAC system voltage |
| Without indicator |
