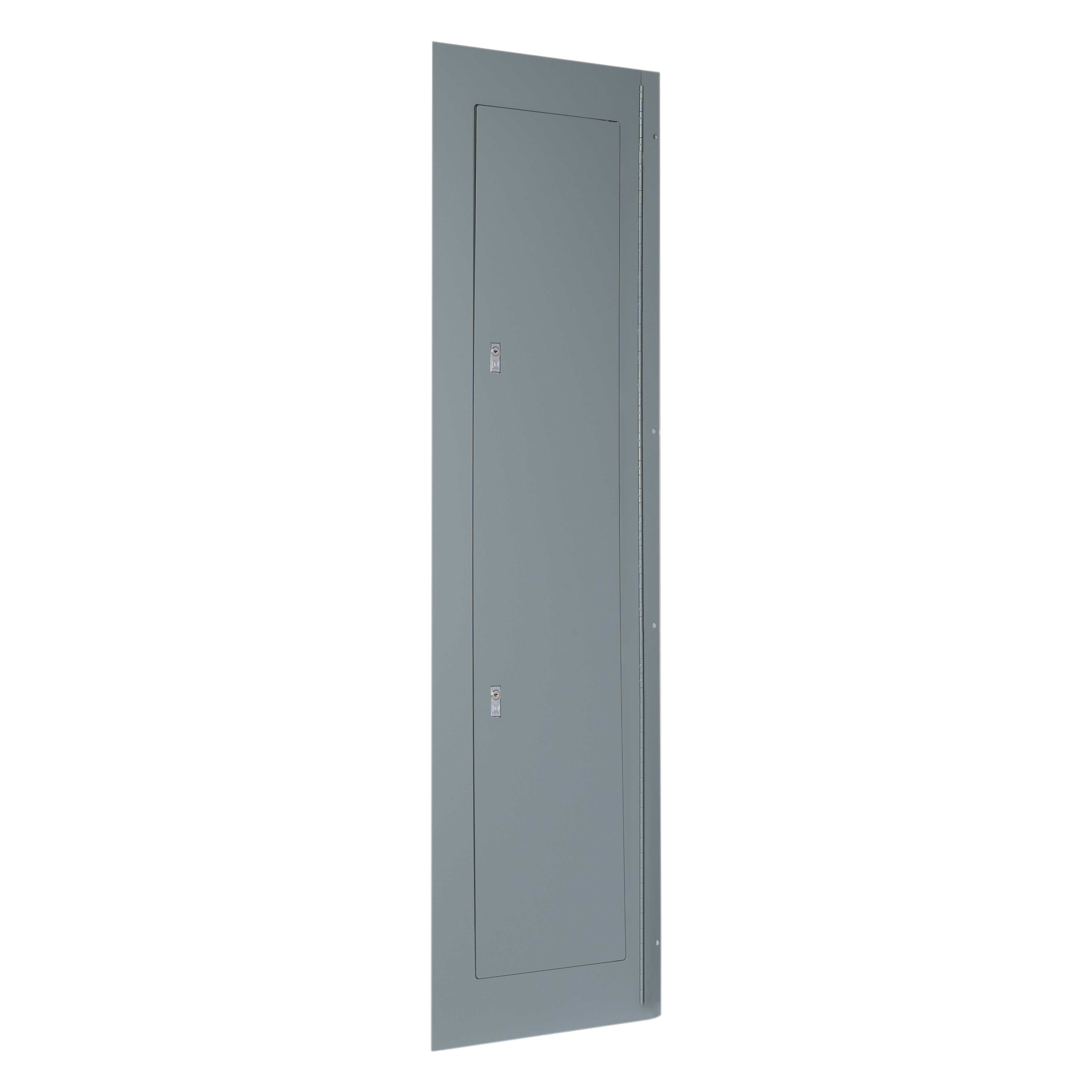

Square D™ NC86FHR Hinged Trim Front, 86 in L x 20 in W, For Use With NQ, NF Panelboard, Steel, Flush Mount
Panelboard Fronts & Trims
PDW~6411338
MFG #: NC86FHR
Square D™
2359.50000
/ ea
Square D™ Trim Front, Hinged, 86 in Length, 20 in Width, Flush Mount, For Use with: NQ, NF Panelboard, Steel, Gray
- Computer~Aided [CAD|BIM] Model URL - f86596d051e8f488393efdb86e013dc9cfb28233.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_W405MTQD91NUXV7Z.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_DJ3HLB5YTPZ8OMAW.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_EOZT24XJMKFCYHS7.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_QV3XBJFT1K682DNL.dwg(Tech Drawing URL)
- Features
| Meets door-in-door specifications |
| Provides continuous piano hinge |
| Permits one person maintenance |
| Right side of the trim being hinged |
