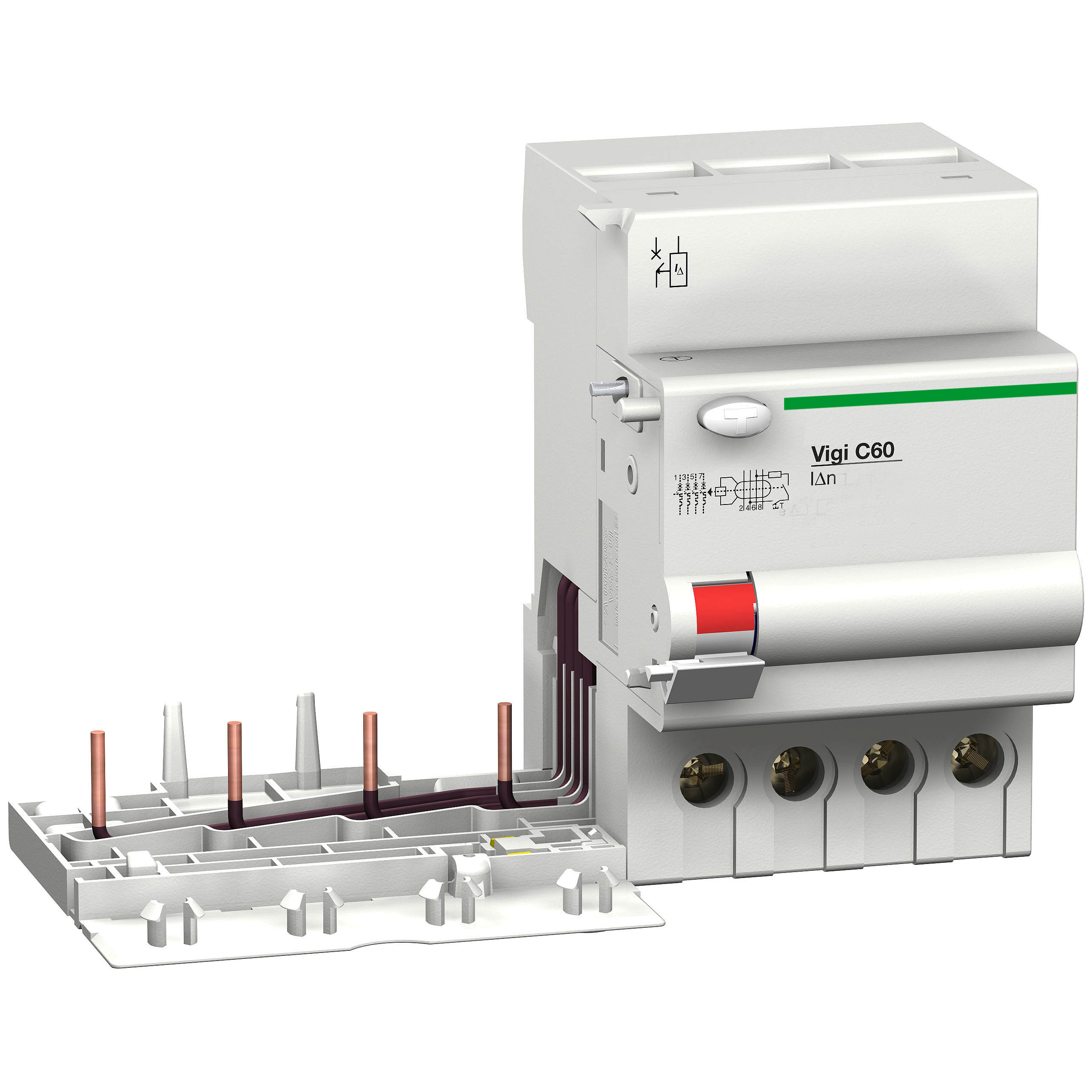

Square D™ Multi 9™ M9V14463 Type AC Add-On Block Earth Leakage Residual Current Circuit Breaker, 400/415 VAC, 63 A, 4 Poles
Custom_Product_Images_Illustration
Square D™ Multi 9™ M9V14463 Type AC Add-On Block Earth Leakage Residual Current Circuit Breaker, 400/415 VAC, 63 A, 4 Poles
SKUPDW~11223017
MFGR #M9V14463
Your Cost: $658.21/ea
List: Square D™ Multi 9™ Residual Current Circuit Breaker, Type AC Add-On Block Earth Leakage, 400/415 VAC, 63 A, 50 Hz, 4 Poles, Tunnel Terminal, 0 to 0.04 sq-in, 0 to 0.05 sq-in Wire, IP20/IP40, Clip-On/DIN Rail Mount, 23 to 140 deg F, 3.43 in H x 2.48 in W x 2.91 in D, Gray
Square D™ Multi 9™ Residual Current Circuit Breaker, Type AC Add-On Block Earth Leakage, 400/415 VAC, 63 A, 50 Hz, 4 Poles, Tunnel Terminal, 0 to 0.04 sq-in, 0 to 0.05 sq-in Wire, IP20/IP40, Clip-On/DIN Rail Mount, 23 to 140 deg F, 3.43 in H x 2.48 in W x 2.91 in D, Gray
Alternate Catalog Number M9V14463 Application C60,MULTI 9 ARRA Compliant N Buy American Compliant N Catalog Number M9V14463 Color Gray Connection Tunnel type terminal bottom) 1-35 mm² - rigid;tunnel type terminal bottom) 1-25 mm² - flexible;tunnel type terminal bottom) 1-25 mm² - flexible with ferrule Connection Type Tunnel Terminal Country of Origin FR Currency USD Dimensions 3.43 in H x 2.48 in W x 2.91 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50 Gross Volume Per Pack 95.41 Gross Volume per Pack Metric 1563.48 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.5500 lb Gross Weight per Pack Metric 255.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 8.0000 in Height [Metric] 8.0000 cm Item Group 01078 Length 14.7000 in Length [Metric] 14.7000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422620260&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 4 Operating Temperature -5-60 A°C Returnable N Standard 8/20 AµS IMPULSE WITHSTAND, 250 A EN/IEC 61009-1,EN/IEC 61009-1-EN/IEC 61009-2-1,IP20IEC 60529-IP40 MODULAR ENCLOSURE)IEC 60529 Sub Brand Vigi C60 Temperature Rating 23 to 140 Type Type AC Add-On Block Earth Leakage UNSPSC 39121603 UPC 11 785901950448 UPC 12 785901950448 Warranty Description Contractual Warranty:18 months Width 9.6000 in Width [Metric] 9.6000 cm Wire Size 0 to 0.04 sq-in, 0 to 0.05 sq-in Brand Square D™ Manufacturer Schneider Electric Amperage Rating 63 Interrupt Rating 400/415 V AC 50 HZ Trip Type Voltage independent Voltage Rating 400/415 C60,MULTI 9 Fault indication 0 to 0.05 sq-in maximum bottom rigid wire, 0 to 0.04 sq-in maximum bottom flexible wire, 0 to 0.04 sq-in maximum bottom flexible with ferrule wire tunnel type terminal
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | M9V14463 |
| Application | C60,MULTI 9 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9V14463 |
| Color | Gray |
| Connection | Tunnel type terminal bottom) 1-35 mm² - rigid;tunnel type terminal bottom) 1-25 mm² - flexible;tunnel type terminal bottom) 1-25 mm² - flexible with ferrule |
| Connection Type | Tunnel Terminal |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.43 in H x 2.48 in W x 2.91 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50 |
| Gross Volume Per Pack | 95.41 |
| Gross Volume per Pack Metric | 1563.48 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.5500 lb |
| Gross Weight per Pack Metric | 255.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 8.0000 in |
| Height [Metric] | 8.0000 cm |
| Item Group | 01078 |
| Length | 14.7000 in |
| Length [Metric] | 14.7000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422620260&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 4 |
| Operating Temperature | -5-60 A°C |
| Returnable | N |
| Standard | 8/20 AµS IMPULSE WITHSTAND, 250 A EN/IEC 61009-1,EN/IEC 61009-1-EN/IEC 61009-2-1,IP20IEC 60529-IP40 MODULAR ENCLOSURE)IEC 60529 |
| Sub Brand | Vigi C60 |
| Temperature Rating | 23 to 140 |
| Type | Type AC Add-On Block Earth Leakage |
| UNSPSC | 39121603 |
| UPC 11 | 785901950448 |
| UPC 12 | 785901950448 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.6000 in |
| Width [Metric] | 9.6000 cm |
| Wire Size | 0 to 0.04 sq-in, 0 to 0.05 sq-in |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 63 |
| Interrupt Rating | 400/415 V AC 50 HZ |
| Trip Type | Voltage independent |
| Voltage Rating | 400/415 |
| C60,MULTI 9 |
| Fault indication |
| 0 to 0.05 sq-in maximum bottom rigid wire, 0 to 0.04 sq-in maximum bottom flexible wire, 0 to 0.04 sq-in maximum bottom flexible with ferrule wire tunnel type terminal |
