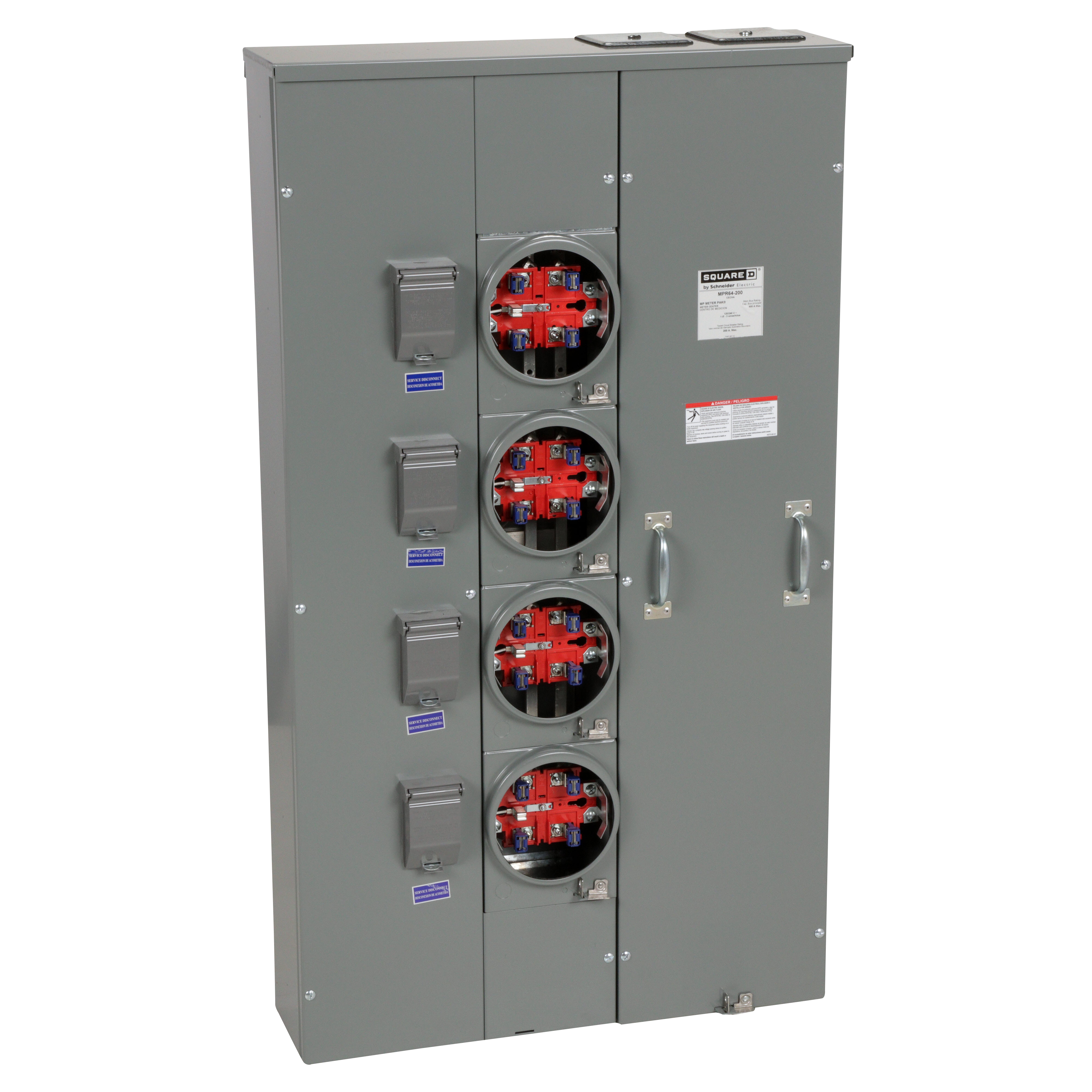

Square D™ Meter-Pak™ MPR64200 MP Series 4-Position 3-Wire Meter Center, 240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ MPR64200 MP Series 4-Position 3-Wire Meter Center, 240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
SKU1197483
MFGR #MPR64200
$/ea
Square D™ Meter-Pak™ Meter Center, 4-Position 3-Wire, Series: MP Series, 240 VAC, 200 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 1/0 AWG to 600 kcmil Wire, (2) A-L Hub, Ringless Cover, Bus Bar/Main Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 29.44 in W x 8.25 in D x 52 in H Dimensions
Square D™ Meter-Pak™ Meter Center, 4-Position 3-Wire, Series: MP Series, 240 VAC, 200 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 1/0 AWG to 600 kcmil Wire, (2) A-L Hub, Ringless Cover, Bus Bar/Main Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 29.44 in W x 8.25 in D x 52 in H Dimensions
Alternate Catalog Number MPR64200 Application For service equipment applications ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number MPR64200 Country of Origin US Cover Type Ringless Currency USD Depth 8.28 in Dimensions 29.44 in W x 8.25 in D x 52 in H Enclosure Steel EU RoHS Indicator Y Feed Type Overhead/Underground Gross Volume Per Pack 15536.53 Gross Volume per Pack Metric 254597.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5216 lb Gross Weight per Pack Metric 52.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 24.9000 in Height [Metric] 24.9000 cm Hub Size (2) A-L Item Group 00021 Length 135.1000 in Length [Metric] 135.1000 cm Line Side Wire Range AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359631&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 5 Number of Meter Positions 4 Returnable Y Series MP Series Standard UL Listed Substitute Product Catalog Number 5J Type 4-Position 3-Wire Main Lug UNSPSC 39121102 UPC 11 78590141047 UPC 12 785901410478 Warranty Description Contractual Warranty:18 months Width 75.7000 in Width [Metric] 75.7000 cm Wire Size 1/0 AWG to 600 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 Enclosure Type NEMA 3R Phase 1 Voltage Rating 240 For service equipment applications Main Lugs;Aluminium: busbar Enclosures are indoor/rainproof NEMA 3R construction Swingable mounting feet supplied at bottom of device Surface mount or convertible to semi-flush with field installed flange kit Aluminum busbar and steel enclosure 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures 200 a maximum tenant circuit breaker amperage, 600 a bus ampacity Without bypass Meter socket jaws, constructed of tin plated copper are spring reinforced on MP devices Stainless steel cover hasps and latches meet tough coastal utility sealing requirements (2) ACPL closing plate (2) ACPL closing plate
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | MPR64200 |
| Application | For service equipment applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | MPR64200 |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Depth | 8.28 in |
| Dimensions | 29.44 in W x 8.25 in D x 52 in H |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Feed Type | Overhead/Underground |
| Gross Volume Per Pack | 15536.53 |
| Gross Volume per Pack Metric | 254597.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5216 lb |
| Gross Weight per Pack Metric | 52.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 24.9000 in |
| Height [Metric] | 24.9000 cm |
| Hub Size | (2) A-L |
| Item Group | 00021 |
| Length | 135.1000 in |
| Length [Metric] | 135.1000 cm |
| Line Side Wire Range | AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359631&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Number of Meter Positions | 4 |
| Returnable | Y |
| Series | MP Series |
| Standard | UL Listed |
| Substitute Product Catalog Number | 5J |
| Type | 4-Position 3-Wire Main Lug |
| UNSPSC | 39121102 |
| UPC 11 | 78590141047 |
| UPC 12 | 785901410478 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 75.7000 in |
| Width [Metric] | 75.7000 cm |
| Wire Size | 1/0 AWG to 600 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Voltage Rating | 240 |
| For service equipment applications |
| Main Lugs;Aluminium: busbar |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 200 a maximum tenant circuit breaker amperage, 600 a bus ampacity |
| Without bypass |
| Meter socket jaws, constructed of tin plated copper are spring reinforced on MP devices |
| Stainless steel cover hasps and latches meet tough coastal utility sealing requirements |
| (2) ACPL closing plate |
| (2) ACPL closing plate |
